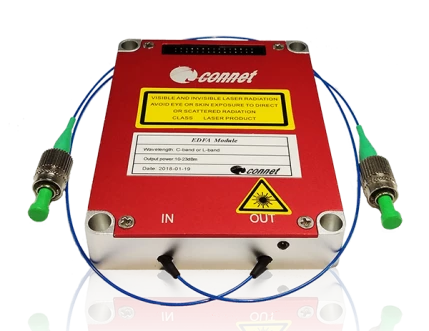

Ultra-low Noise High Gain Pulsed PreAmp EDFA

Description

Connet MARS Series Ultra-low Noise High Gain Pulsed PreAmp Erbium-doped Fiber Amplifier (EDFA) uses a unique optical path design with the proprietary ultra-low noise Erbium-doped fiber, featuring with low noise figure and high gain, which can be used for effectively amplifying such weak signal as -50dBm. The comprehensive performance of this EDFA surpasses the similar products in the market.

The ultra-low noise high-gain Erbium-doped amplifier of Connet is suitable for pre-amplification of weak pulse signals, like the pulse signal generated by modulating a continuous seed laser.

This EDFA can effectively suppress the ASE and obtain a better signal-to-noise ratio of the amplified signal while maintaining the high gain. It is an ideal fiber amplifier for weak optical signal acquisition that is widely used in coherent communication, heterodyne detection and Coherent Doppler LIDAR systems, etc.

Specifications

Amplifier Type:	EDFA - Erbium-Doped Fiber Amplifier
Wavelength Range:	1528 – 1560 nm
Min Input Power:	-50 dBm
Max Output Power:	20 dBm
Nominal Gain:	30 dB
Output Fiber Type:	Other (see Data Sheet)

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

C-Band
Low Noise: NF<4.0dB
Pulse Operation
Low ASE
High Stability, High Reliability

Applications

Coherent Doppler LIDAR for Wind Sensing
Coherent Communication
Coherent Detection
BOTDR/BOTDA Sensing System
Other Scientific Research

Request Quote

To: Connet Laser Technology Co., Ltd.
Re: Ultra-low Noise High Gain Pulsed PreAmp EDFA

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: China
Sold by:: Connet Laser Technology Co., Ltd. ✓ Verified Supplier
On FindLight:: since 2016

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the applications of the Connet MARS Series Ultra-low Noise High Gain Pulsed PreAmp EDFA?

The applications include Coherent Doppler LIDAR for Wind Sensing, Coherent Communication, Coherent Detection, BOTDR/BOTDA Sensing System, and other scientific research.

What are the features of the Connet MARS Series Ultra-low Noise High Gain Pulsed PreAmp EDFA?

The features include C-Band, low noise (NF<4.0dB), pulse operation, low ASE, high stability, and high reliability.

What is the Connet MARS Series Ultra-low Noise High Gain Pulsed PreAmp EDFA used for?

It is used for effectively amplifying weak signals such as -50dBm and is suitable for pre-amplification of weak pulse signals, like the pulse signal generated by modulating a continuous seed laser.

What is the noise figure of the Connet MARS Series Ultra-low Noise High Gain Pulsed PreAmp EDFA?

The noise figure (NF) is less than 4.0dB.

What is the ordering information for the Connet MARS Series Ultra-low Noise High Gain Pulsed PreAmp EDFA?

The ordering information includes MFAS-ER-C-M-PA-PL for single-mode Ultra-low Noise High Gain Pulsed PreAmp EDFA and MFAP-ER-C-M-PA-PL for polarization maintaining Ultra-low Noise High Gain Pulsed PreAmp EDFA.
