Description

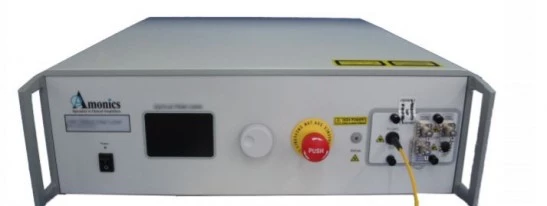

Amonics' Fiber Laser (AFL) is an advanced, compact, and standalone turnkey solution designed to deliver up to 50W output power and 1mJ pulse energy. Operating within the 1064nm and 1550nm wavelength range, this fiber laser supports both continuous wave (CW) and pulse operations. Built on a proprietary all-fiber design, the Amonics Fiber Laser is entirely maintenance-free, eliminating the need for post-installation service and ensuring seamless, long-term operation.
In pulse mode, the laser achieves up to 20kW peak power with an adjustable pulse width ranging from 10ns to 1000ns. The pulse repetition rate is conveniently triggered by an external TTL signal, offering flexibility and precision in various operational settings. This high-performance fiber laser is an ideal choice for a wide array of industrial applications, thanks to its robust design and reliable operation.
The Amonics Fiber Laser is manufactured under a stringent HKQAA ISO 9001 certified quality management system, ensuring the highest standards of quality and performance. This certification applies specifically to the Hong Kong production site, reinforcing the commitment to excellence and reliability in every unit produced.
1064nm High Power Fiber Laser
Specifications |
|
|---|---|
| Center Wavelength: | 1064 nm |
| Output Power: | 20 W |
| Output Mode: | Continuous Wave (CW), Modulated |
| Beam Quality (M^2): | 1.1 |
| Output Power Stability: | 0.1% ~ 0.2% |
| Output Fiber Type: | Other / Non-specified |
| Interface: | Other / Not-specified |
| Cooling: | Other |
| Electrical Requirements: | 240V - 50Hz |
Features
- High Power Output: Delivers up to 50W output power and 1mJ pulse energy in the 1064nm and 1550nm range.
- Flexible Operation Modes: Supports both continuous wave (CW) and pulse operation.
- Adjustable Pulse Width: Tunable pulse width from 10ns to 1000ns for precise control.
- Peak Power: Achieves up to 20kW peak power in pulse operation.
- Optical Feedback Protection: Ensures stable performance by monitoring back reflection.
- Turnkey and Maintenance-Free: Compact standalone equipment requiring no post-installation service.
- Reliable and Durable: Built with a proprietary all-fiber design for enhanced reliability.
- Linear or Random Polarization: Offers flexibility in polarization options to suit various applications.
- Easy Control: Features keylock switch and optical output power control for user-friendly operation.
- Remote Monitoring: Equipped with RS232 and optional TCP/IP Ethernet ports for remote control.
- Comprehensive Protection: Includes pump laser (TEC) overheat protection for safe operation.
- ISO Certified Manufacturing: Produced under a HKQAA ISO 9001 certified quality management system.
Applications
- Micro-Machining: Precision cutting and material processing with high peak power pulses.
- Marking: Permanent laser marking for industrial parts and components.
- Scribing: Fine scribing applications requiring controlled pulse energy and duration.
- Fiber Optic Sensing: Ideal for distributed or point fiber optic sensing systems.
- Laboratory Research: Suitable for advanced optical experiments and testing.
Frequently Asked Questions
The Amonics Fiber Laser can deliver up to 50W output power.
The Amonics Fiber Laser can deliver up to 1mJ pulse energy.
Yes, the Amonics Fiber Laser can be used for both pulse and CW operation.
The Amonics Fiber Laser has an adjustable pulse width range from 10ns to 1000ns.
Yes, the Amonics Fiber Laser is maintenance-free due to its proprietary all fiber design. No post-installation service is required.
