1030/1064/1070nm Fiber Laser

Name: 1030/1064/1070nm Fiber Laser
Brand: DK Photonics
Availability: InStock

Description

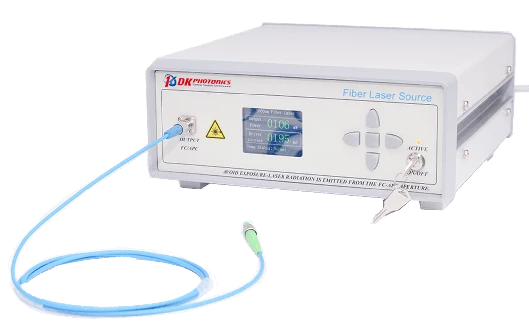

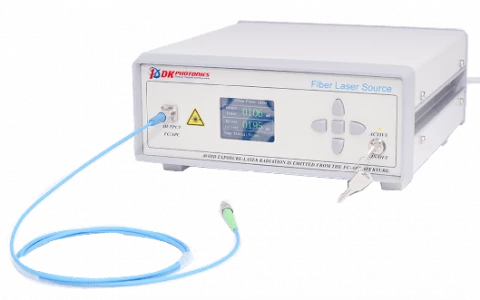

1030/1064/1070nm Fiber Laser adopt butterfly-shaped semiconductor laser chip, professionally designed drive circuit and TEC control to ensure the safe operation of the laser, stable output power and spectrum. It is suitable as a seed laser for high-power lasers, and can also be used for production testing of 1064nm wavelength optical fiber devices, and can be provided in a desktop or modular package.

Specifications

Center Wavelength:	1064 nm
Output Power:	0.5 W
Beam Quality (M^2):	Not Specified
Spectral Width:	< 0.1 nm
Output Power Options (Standard):	100/200/300/400/500 mW
Output Power Options (Custom)):	1-10 W
Short-term Stability (15 Minutes):	≤ ±0.02 dB
Long-term Stability (8 Hours):	≤±0.05 dB
Fiber Type:	HI1060/PM980 panda
Optical Connector:	FC/APC

Download Data Sheet

Features

● High Output Power
● Power and Spectrum Stability
● SM or PM optional

Applications

● Seed light source
● Fiber Amplifier
● Nonlinear Optics Research
● Fiber optic device testing

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

DK Photonics

On FindLight:

since 2015

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the operating wavelength range of the 1030/1064/1070nm Fiber Laser?

The operating wavelength range of the 1030/1064/1070nm Fiber Laser is 1030nm, 1064nm, and 1070nm.

What are the key features of the 1030/1064/1070nm Fiber Laser?

The key features of the 1030/1064/1070nm Fiber Laser include high output power, power and spectrum stability, and the option for single-mode (SM) or polarization-maintaining (PM) fiber.

What are the applications of the 1030/1064/1070nm Fiber Laser?

The 1030/1064/1070nm Fiber Laser can be used as a seed light source, in fiber amplifiers, for nonlinear optics research, and for fiber optic device testing.

What type of laser chip does the 1030/1064/1070nm Fiber Laser use?

The 1030/1064/1070nm Fiber Laser adopts a butterfly-shaped semiconductor laser chip.

What control mechanisms are in place to ensure the safe operation of the 1030/1064/1070nm Fiber Laser?

The 1030/1064/1070nm Fiber Laser is equipped with a professionally designed drive circuit and TEC control to ensure safe operation, stable output power, and spectrum.
