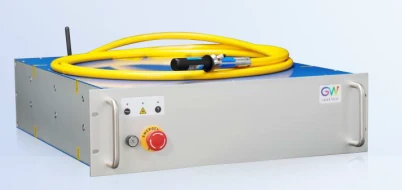

EQ Photonics GmbH - 2μm CW Fiber Laser - TLPS-500
EQ Photonics
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
EQ Photonics -
On FindLight:
since 2025
Description
The 2 μm CW fiber laser utilizes a thulium-doped rare earth element as its gain medium. Many non-metallic materials—such as plastic, carbon fiber, wood fiber, and paper—exhibit high absorption at the 2 μm wavelength, making this laser well-suited for processing a wide range of non-metallic materials.
EQ Photonics GmbH - 2μm CW Fiber Laser - TLPS-500
EQ Photonics
Specifications |
|
|---|---|
| Center Wavelength: | 2000 nm |
| Output Power: | 500 W |
| Output Mode: | Continuous Wave (CW) |
| Beam Quality (M^2): | Not Specified |
| Spectral Linewidth: | Not Specified |
| Output Power Stability: | 2% ~ 3% |
| Output Fiber Type: | SM Fiber |
| Output Fiber Length: | Not Specified |
| Interface: | RS-232 |
| Cooling: | Water Cooled (closed loop) |
| Electrical Requirements: | 220V - 50Hz |
| Output Power Range (%): | 10-100 |
| Power Stability: | < 3%（The water temperature is 22 ± 1 °C） |
| Connector: | Type QBH |
| Dimension: | 482 x 590 x 132 (L×W×H) mm |
| Weight: | ≤45 kg |
| Beam Quality M2: | ≤1.3 |
Features
- The average trouble-free working time exceeds 100,000 hours;
- All fiber transmission, can use standard robot arm flexible processing, three-dimensional plastic cutting;
- Eye safe : between 1400nm and 2000nm;
- Electro-optical conversion efficiency >25%.
Applications
It can be used for plastic welding and other non-metallic applications, and is also widely applied in medical fields such as biological tissue ablation, lithotripsy, and prostate hyperplasia surgery.
