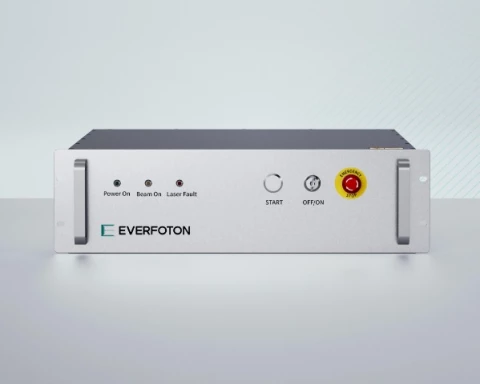

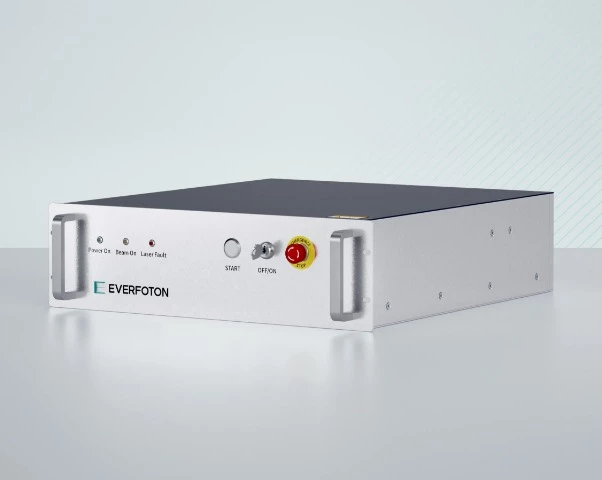

1500W High-Brightness CW Fiber Laser FFRC-1500SM-C

Description

Everfoton's 1500W-3000W High-Brightness CW Fiber Lasers are designed to provide high-quality and stable laser beams for various industrial applications, including laser cutting and welding. These lasers are equipped with multi-stage anti-back reflection protections and a compact design for easy integration into existing cutting systems.

They feature a special optical design and process that suppresses transverse mode instability and stimulated Raman scattering, ensuring high brightness, anti-reflection, and stability.

Specifications

Center Wavelength:	1080 nm
Output Power:	1500 W
Output Mode:	Continuous Wave (CW), Modulated
Beam Quality (M^2):	1.2
Spectral Linewidth:	4 nm
Output Power Stability:	> 5%
Output Fiber Type:	Other / Non-specified
Output Fiber Length:	5 m
Interface:	Other / Not-specified
Cooling:	Water Cooled (closed loop)
Electrical Requirements:	240V - 50Hz
Polarization State:	Random
Output Power Tunability:	10-100 %
Modulation Frequency:	5 kHz
Red Laser Power:	> 200 μW
Output Type:	QBH
Core Diameter:	14 um
Minimum Bending Radius:	200 mm

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High beam quality with M2 of 1.2-1.3
High stability with less than 2% output power instability at 25℃ in 2 hours
High cutting quality
Output power tunability of 10-100%
Random polarization state
Emission wavelength of 1080±5 nm
Spectrum width FWHM of <4 nm
Modulation frequency of 5 kHz
Red laser power of >200 μW
Fiber delivery cable with QBH output type, length of 5 or 10 m, and core diameter of 14 or 20 μm
Operating voltage of 200-240 VAC or 340-420 VAC and control mode of RS232/AD/Ethernet
Water-cooled with a water-cooling temperature of 25±1℃
Dimensions of W482 x D575 x H133 mm (Include handles)

Applications

Laser cutting of high-reflecting materials such as copper and brass
Laser welding

Request Quote

To: Everfoton Technologies Inc. and YOFC Specialty Optical Fibers
Re: 1500W High-Brightness CW Fiber Laser FFRC-1500SM-C

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: Everfoton Technologies Inc. and YOFC Specialty Optical Fibers
On FindLight:: since 2023

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the industrial applications of the 1500W High-Brightness CW Fiber Laser?

The 1500W High-Brightness CW Fiber Laser is designed for laser cutting and welding in various industrial applications.

What are the features of the 1500W High-Brightness CW Fiber Laser?

The features of the 1500W High-Brightness CW Fiber Laser include high beam quality, high stability, high cutting quality, output power tunability, random polarization state, and specific emission wavelength and spectrum width.

What is the operating voltage and control mode of the 1500W High-Brightness CW Fiber Laser?

The 1500W High-Brightness CW Fiber Laser operates at either 200-240 VAC or 340-420 VAC and has a control mode of RS232/AD/Ethernet.

Is the 1500W High-Brightness CW Fiber Laser water-cooled?

Yes, the 1500W High-Brightness CW Fiber Laser is water-cooled with a water-cooling temperature of 25±1℃.

What are the dimensions of the 1500W High-Brightness CW Fiber Laser?

The dimensions of the 1500W High-Brightness CW Fiber Laser are W482 x D575 x H133 mm (including handles).
