Description
High-brightness fiber lasers adopt a special optical design and process to suppress transverse mode instability and stimulated Raman scattering. It achieves a 14μm small core diameter single-mode output and has high brightness, high anti-reflection, excellent stability, etc. The laser is suitable for new energy, 3C, electrical industry and can be used for high-reflecting material (such as: copper, brass) cutting.

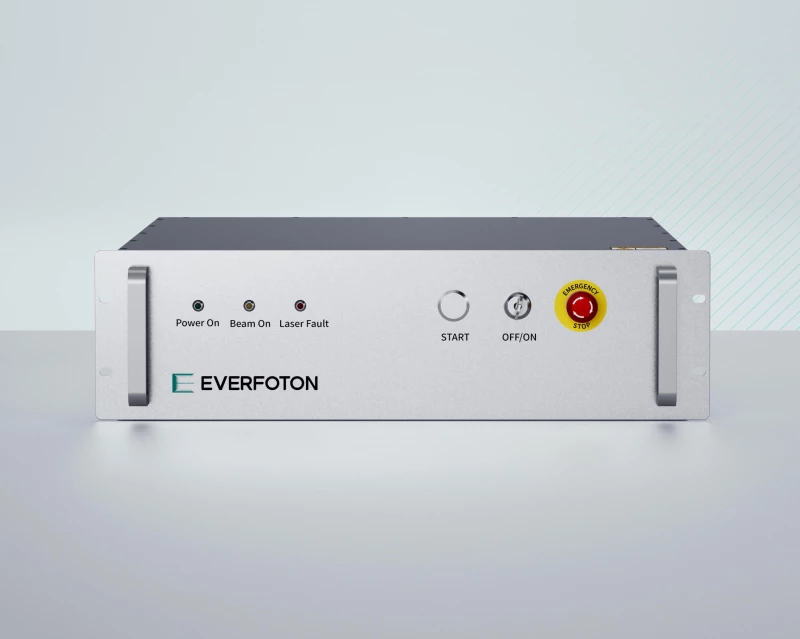

High-Brightness 1500-3000W CW Fiber Laser
Specifications
| Center Wavelength: | 1080 nm |
|---|---|
| Output Power: | 1500 W |
| Output Mode: | Continuous Wave (CW), Modulated |
| Beam Quality (M^2): | 1.2 |
| Spectral Linewidth: | 4 nm |
| Output Power Stability: | 1.75% ~ 2% |
| Output Fiber Type: | Other / Non-specified |
| Output Fiber Length: | 5 m |
| Interface: | RS-232 |
| Cooling: | Water Cooled (open loop) |
| Electrical Requirements: | 240V - 50Hz, 380V - 50Hz, 400V - 50Hz |
Download Data Sheet
Features
- Multi-stage anti-back reflection protection
- High beam quality
- High stability
- High cutting quality
Applications
- Laser Cutting
- Laser Welding
Frequently Asked Questions
What is the output power of the high-brightness CW fiber laser?
The output power of the high-brightness CW fiber laser is 1500-3000W.
What are the applications of the high-brightness CW fiber laser?
The applications of the high-brightness CW fiber laser include laser cutting and laser welding.
What are the features of the high-brightness CW fiber laser?
The high-brightness CW fiber laser has multi-stage anti-back reflection protection, high beam quality, high stability, and high cutting quality.
What materials can the high-brightness CW fiber laser cut?
The high-brightness CW fiber laser can cut high-reflecting materials such as copper and brass.
What is the operating mode of the high-brightness CW fiber laser?
The high-brightness CW fiber laser operates in CW (continuous wave) mode.
