Description
High-stability 300W-5OOW CW Fiber Lasers are a highly reliable laser family with high power stability and ideal laser beam quality, and QBH or QCS fiber delivery options. With fast response to DI/Al control inputs, it will satisfy the most demanding applications such as 3D printing, micro-processing and fine-welding.

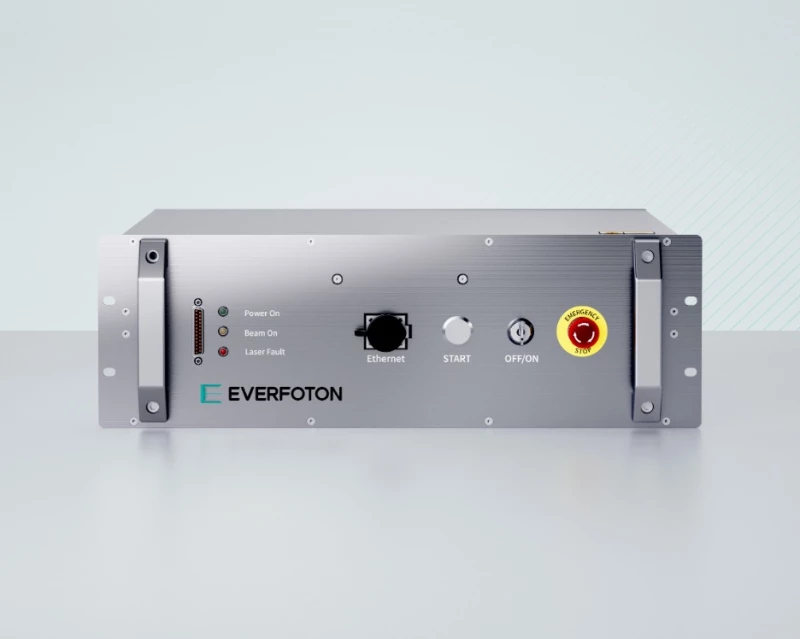

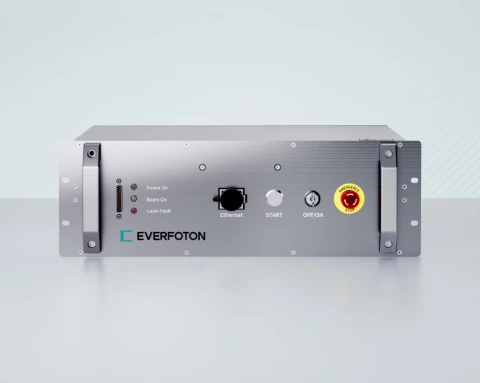

High-Stability 300-500W CW Fiber Laser
Specifications
Center Wavelength: | 1080 nm |
---|---|
Output Power: | 300 W |
Output Mode: | Continuous Wave (CW) |
Beam Quality (M^2): | 1.2 |
Spectral Linewidth: | 4 nm |
Output Power Stability: | 0.9% ~ 1.0% |
Output Fiber Type: | Other / Non-specified |
Output Fiber Length: | 3 m |
Interface: | RS-232 |
Cooling: | Water Cooled (open loop) |
Electrical Requirements: | 240V - 50Hz |
Power: | 5 W |
Features
- High Beam Quality
- Excellent long-term power stability
- Fast optical response
Applications
- Metal 3D printing
- Precision metal cutting
- Precision metal welding
Frequently Asked Questions
What is the power range of the High-Stability 300-500W CW Fiber Laser?
The power range of the High-Stability 300-500W CW Fiber Laser is 300W-500W.
What are the available fiber delivery options for this laser?
The available fiber delivery options for this laser are QBH or QCS.
What are the main applications of the High-Stability 300-500W CW Fiber Laser?
The main applications of the High-Stability 300-500W CW Fiber Laser are metal 3D printing, precision metal cutting, and precision metal welding.
What are the key features of this laser?
The key features of this laser are high beam quality, excellent long-term power stability, and fast optical response.
What are the dimensions of the High-Stability 300-500W CW Fiber Laser?
The dimensions of the High-Stability 300-500W CW Fiber Laser are W482 x D545 x Hl 55 (including handles).
