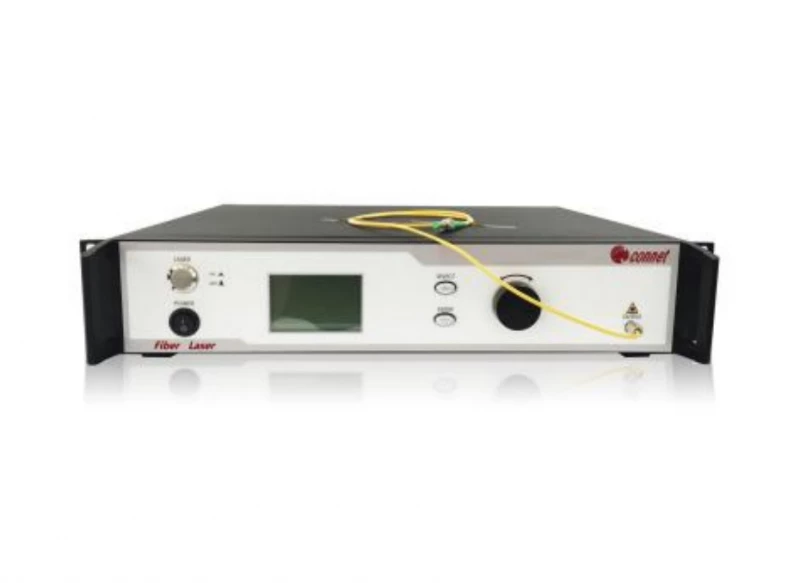

Thumbnail of CoSF-D-ER-B-MP Narrow Linewidth Single Frequency Fiber Laser photo 1

Description

The CoSF-D-ER-B-MP Narrow Linewidth Single Frequency Fiber Laser by Connet is a low-noise fiber laser based on Distributed Feedback Bragg Grating (DFB) technology. It offers a stable single-frequency laser output with a single longitudinal mode, linear polarization, and narrow linewidth.

With low phase and frequency noise as well as excellent wavelength stability, this fiber laser ensures high performance and reliable operation.

CoSF-D-ER-B-MP Narrow Linewidth Single Frequency Fiber Laser

Visit the Connet Laser Technology Co., Ltd. Store

Specifications

Center Wavelength: 1530 nm
Output Power: 15 W
Output Mode: Continuous Wave (CW), Single Frequency, Single Longitudinal Mode
Beam Quality (M^2): 1.05
Output Power Stability: 1% ~ 1.25%
Output Fiber Type: PM-1550
Output Fiber Length: 0.5 m
Interface: RS-232
Cooling: Other
Electrical Requirements: 110V - 60Hz, 115V - 50Hz, 115V - 60Hz, 120V - 60Hz, 127V - 50Hz, 127V - 60Hz, 220V - 50Hz, 230V - 50Hz, 240V - 50Hz
Linewidth: 1 KHz
Output Polarization: Linear
Polarization Extinction Ratio (PER): 23 dB
Output Isolation: 30 dB
Wavelength Thermal Tuning: 0.3 nm
Modulation Frequency: 10 kHz
Modulation Wavelength: 10 GHz
Operating Temperature: 0 to +50 °C
Storage Temperature: -20 to +60 °C
Optical Connector: FC/APC
Weight: <5 kg
Dimension: 430 x 450 x 105 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Ultra-narrow linewidth of less than 1kHz
  • Very low phase noise and frequency noise
  • Low relative intensity noise (RIN)
  • Stable single frequency, single polarization output
  • No mode-hopping
  • Benchtop all-in-one package for convenience
  • High reliability

Applications

  • Distributed optical fiber sensing
  • Coherent LiDAR
  • Fiber optic hydrophone
  • Laser spectroscopy
  • Coherent communication
  • Gas absorption measurement
  • Cold atomic physics
  • Other scientific research

Frequently Asked Questions

What are the applications of the CoSF-D-ER-B-MP Narrow Linewidth Single Frequency Fiber Laser?
The CoSF-D-ER-B-MP Narrow Linewidth Single Frequency Fiber Laser can be used in distributed optical fiber sensing, coherent LiDAR, fiber optic hydrophone, laser spectroscopy, coherent communication, gas absorption measurement, cold atomic physics, and other scientific research.
What are the features of the CoSF-D-ER-B-MP Narrow Linewidth Single Frequency Fiber Laser?
The CoSF-D-ER-B-MP Narrow Linewidth Single Frequency Fiber Laser features ultra-narrow linewidth of less than 1kHz, very low phase noise and frequency noise, low relative intensity noise (RIN), stable single frequency, single polarization output, no mode-hopping, benchtop all-in-one package for convenience, and high reliability.
What is the communication interface of the CoSF-D-ER-B-MP Narrow Linewidth Single Frequency Fiber Laser?
The CoSF-D-ER-B-MP Narrow Linewidth Single Frequency Fiber Laser has an RS232 communication interface.
What is the CoSF-D-ER-B-MP Narrow Linewidth Single Frequency Fiber Laser?
The CoSF-D-ER-B-MP Narrow Linewidth Single Frequency Fiber Laser is a low-noise fiber laser based on Distributed Feedback Bragg Grating (DFB) technology that offers a stable single-frequency laser output with a single longitudinal mode, linear polarization, and narrow linewidth.
What is the output power range of the CoSF-D-ER-B-MP Narrow Linewidth Single Frequency Fiber Laser?
The output power of the benchtop low noise narrow linewidth single frequency fiber laser is from 500mW to 10W. Higher output power products can be provided on request.

Got more questions? Use the inquiry form to ask the supplier directly.
