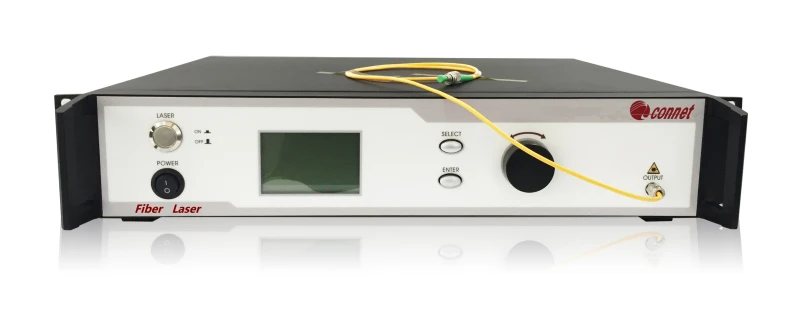

CoSF-D-YB-B-MP Narrow Linewidth Single Frequency Fiber Laser

Name: CoSF-D-YB-B-MP Narrow Linewidth Single Frequency Fiber Laser
Brand: Connet Laser Technology Co., Ltd.

Description

Connet CoSF-D is a low-noise Single Frequency Fiber Laser based on Distributed Feedback Bragg Grating (DFB) technology. It has independent intellectual property rights and achieves a stable single frequency laser output with single longitudinal mode, linear polarization, and narrow linewidth.

CoSF-D has very low phase and frequency noise and low relative intensity noise (RIN). Connet uses unique packaging technology to ensure low-noise DFB single frequency fiber lasers with excellent wavelength stability.

Connet uses extra-cavity technology to significantly suppress the relative intensity noise (RIN) of the DFB single frequency fiber laser, ensuring that the resonant cavity of the single frequency fiber laser is not disturbed. Please refer to CoSF-D-RS series products.

CoSF-D-YB-B-MP is based on Ytterbium-doped fiber with narrow linewidth (<20kHz) and low phase noise, low relative intensity noise (RIN). Output power is from 200mW to 10W. The standard wavelength is 1064nm, 1053nm, 1083nm, and the optional wavelength range is 1010-1120nm. Other wavelengths can be customized according to requirements.

Specifications

Center Wavelength:	1010 nm
Output Power:	10 W
Output Mode:	Continuous Wave (CW), Single Frequency, Single Longitudinal Mode
Beam Quality (M^2):	1.05
Output Power Stability:	0.9% ~ 1.0%
Output Fiber Type:	PMF
Output Fiber Length:	0.5 m
Interface:	RS-232
Cooling:	Air Cooled
Electrical Requirements:	110V - 60Hz, 115V - 50Hz, 115V - 60Hz, 120V - 60Hz, 127V - 50Hz, 127V - 60Hz, 220V - 50Hz, 230V - 50Hz, 230V - 60Hz, 240V - 50Hz

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Narrow linewidth <20kHz
Very low phase noise and frequency noise
Low relative intensity noise (RIN)
Stable single frequency, single polarization output
No mode-hopping
Benchtop all-in-one package
High reliability

Applications

Distributed optical fiber sensing
Coherent LiDAR
Fiber optic hydrophone
Laser spectroscopy
Coherent communication
Gas absorption measurement
Cold atomic physics
Other scientific research

Request Quote

To: Connet Laser Technology Co., Ltd.
Re: CoSF-D-YB-B-MP Narrow Linewidth Single Frequency Fiber Laser

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: China
Sold by:: Connet Laser Technology Co., Ltd. ✓ Verified Supplier
On FindLight:: since 2016

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

Can the wavelength of the CoSF-D laser be customized?

Yes, the wavelength of the CoSF-D laser can be customized according to requirements.

What are the applications of the CoSF-D laser?

The CoSF-D laser can be used in distributed optical fiber sensing, coherent LiDAR, fiber optic hydrophone, laser spectroscopy, coherent communication, gas absorption measurement, cold atomic physics, and other scientific research.

What are the features of the CoSF-D laser?

The CoSF-D laser has a narrow linewidth (<20kHz), very low phase and frequency noise, low relative intensity noise (RIN), stable single frequency and single polarization output, and no mode-hopping.

What is the output power range of the CoSF-D laser?

The output power range of the CoSF-D laser is from 200mW to 10W.

What is the technology used in the CoSF-D laser?

The CoSF-D laser is based on Distributed Feedback Bragg Grating (DFB) technology.
