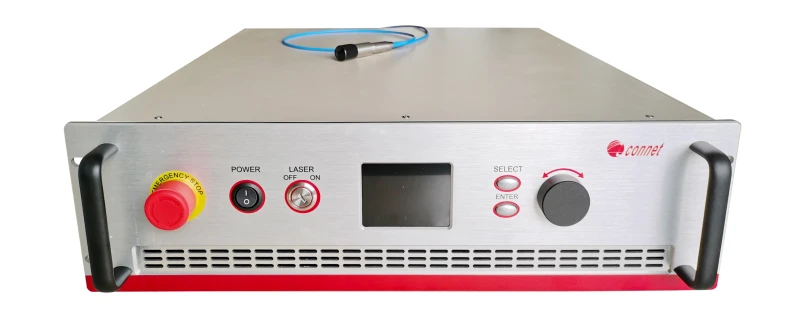

Thumbnail of CoSF-D-YB-B-HP Narrow Linewidth Single Frequency Fiber Laser photo 1

Description

Connet CoSF-D is a low-noise Single Frequency Fiber Laser based on Distributed Feedback Bragg Grating (DFB) technology. It has independent intellectual property rights and achieves a stable single frequency laser output with single longitudinal mode, linear polarization, and narrow linewidth.

CoSF-D has very low phase and frequency noise and low relative intensity noise (RIN). Connet uses unique packaging technology to ensure low-noise DFB single frequency fiber lasers with excellent wavelength stability.

Connet uses extra-cavity technology to significantly suppress the relative intensity noise (RIN) of the DFB single frequency fiber laser, ensuring that the resonant cavity of the single frequency fiber laser is not disturbed. Please refer to CoSF-D-RS series products.

CoSF-D-YB-B-HP is based on Yetterbium-doped fiber with narrow linewidth  (<20kHz) and low phase noise, low relative intensity noise (RIN). Output power is from 20W to 100W. The standard wavelength is 1064nm, 1053nm, 1083nm, and the optional wavelength range is 1010-1120nm. Other wavelengths can be  customized according to requirements.

CoSF-D-YB-B-HP Narrow Linewidth Single Frequency Fiber Laser

Visit the Connet Laser Technology Co., Ltd. Store

Specifications

Center Wavelength: 1010 nm
Output Power: 100 W
Output Mode: Continuous Wave (CW), Single Frequency, Single Longitudinal Mode
Beam Quality (M^2): 1.2
Output Power Stability: 0.9% ~ 1.0%
Output Fiber Type: PMF
Output Fiber Length: 0.5 m
Interface: RS-232
Cooling: Air Cooled
Electrical Requirements: 110V - 60Hz, 115V - 50Hz, 115V - 60Hz, 120V - 60Hz, 127V - 50Hz, 127V - 60Hz, 220V - 50Hz, 230V - 50Hz, 230V - 60Hz, 240V - 50Hz

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Narrow linewidth <20kHz
  • Very low phase noise and frequency noise
  • Low relative intensity noise (RIN)
  • Stable single frequency, single polarization output
  • No mode-hopping
  • Benchtop all-in-one package
  • High reliability

Applications

  • Distributed optical fiber sensing
  • Coherent LiDAR
  • Fiber optic hydrophone
  • Laser spectroscopy
  • Coherent communication
  • Gas absorption measurement
  • Cold atomic physics
  • Other scientific research

Frequently Asked Questions

What are the applications of CoSF-D-YB-B-HP Narrow Linewidth Single Frequency Fiber Laser?
The applications of CoSF-D-YB-B-HP Narrow Linewidth Single Frequency Fiber Laser include distributed optical fiber sensing, coherent LiDAR, fiber optic hydrophone, laser spectroscopy, coherent communication, gas absorption measurement, cold atomic physics, and other scientific research.
What is the optional wavelength range of CoSF-D-YB-B-HP Narrow Linewidth Single Frequency Fiber Laser?
The optional wavelength range of CoSF-D-YB-B-HP Narrow Linewidth Single Frequency Fiber Laser is 1010-1120nm.
What is the output power range of CoSF-D-YB-B-HP Narrow Linewidth Single Frequency Fiber Laser?
The output power range of CoSF-D-YB-B-HP Narrow Linewidth Single Frequency Fiber Laser is from 20W to 100W.
What is the polarization output of CoSF-D-YB-B-HP Narrow Linewidth Single Frequency Fiber Laser?
CoSF-D-YB-B-HP Narrow Linewidth Single Frequency Fiber Laser has a stable single frequency, single polarization output.
What is the standard wavelength of CoSF-D-YB-B-HP Narrow Linewidth Single Frequency Fiber Laser?
The standard wavelength of CoSF-D-YB-B-HP Narrow Linewidth Single Frequency Fiber Laser is 1064nm, 1053nm, 1083nm.

Got more questions? Use the inquiry form to ask the supplier directly.
