Description

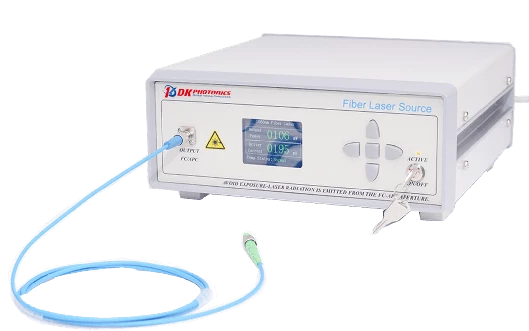

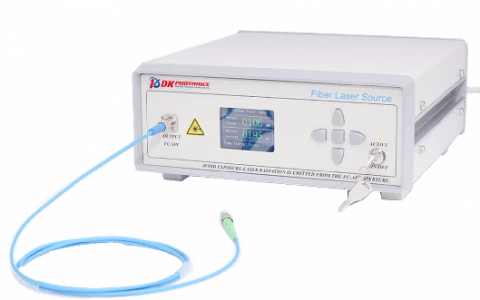

The 974nm/976nm single-wavelength laser adopts a butterfly-shaped semiconductor laser chip with fiber FBG frequency locking. The professionally designed drive circuit and TEC control ensure the safe operation of the laser, and the output power and spectrum are stable. It is suitable as a pump laser source for fiber lasers or fiber amplifiers, and can be provided in a desktop or modular package.
974nm/976nm Pump Laser
Specifications
| Center Wavelength: | 974 nm |
|---|---|
| Output Power: | 1 W |
| Output Power Options: | 200/400/600/1000 mW |

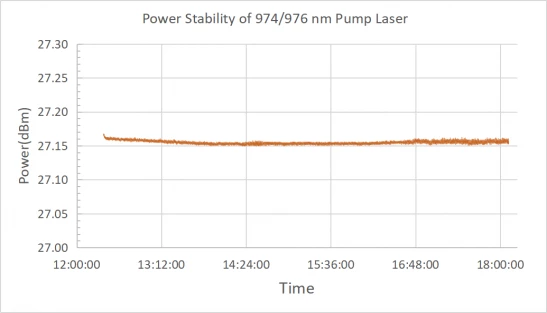

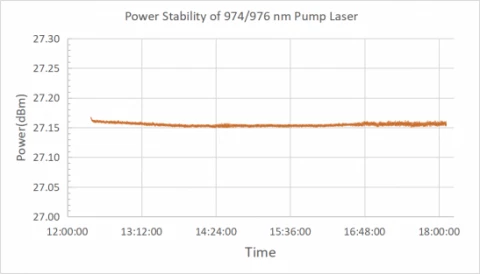

| Short-term Stability (15 Minutes): | ≤ ±0.02 dB |
| Long-term Stability (8 Hours): | ≤ ±0.05 dB |
| Fiber Type: | HI1060/PM980 |
Download Data Sheet
Features
● High Output Power
● Power and Spectrum Stability
● Desktop and Modular are available
Applications
● Fiber Laser Pump
● Fiber Amplifier
● Nonlinear Optics Research
● Fiber optic device testing
Frequently Asked Questions
What is the wavelength range of the 974/976nm pump laser?
The wavelength range of the 974/976nm pump laser is 974±1/976±1 nm.
What are the available output power options for the pump laser?
The available output power options for the pump laser are 200/400/600/1000 mW.
What type of fiber is compatible with the pump laser?
The pump laser is compatible with HI1060 and PM980 fiber types.
What are the control options for the pump laser?
The pump laser can be controlled through a button or RS232 communication interface.
What are the dimensions of the desktop and modular packages?
The dimensions of the desktop package are 260(W)×280(D)×120(H)mm, and the dimensions of the modular package are 125(W)×150(D)×20(H)mm.
