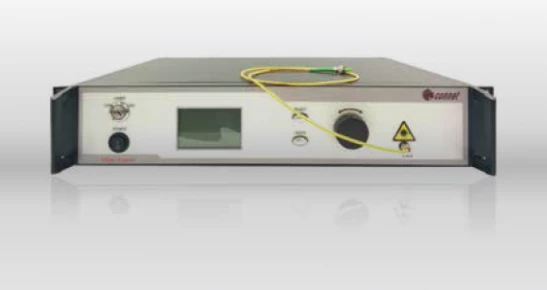

VENUS Series1.5um Single-mode CW Fiber Laser

Name: VENUS Series1.5um Single-mode CW Fiber Laser
Brand: Connet Laser Technology Co., Ltd.

Description

The 1.5um CW fiber lasers of Connet Laser are eye-safe high power fiber lasers. These fiber lasers employ the integrated design of all-fiber structure and use the double cladding fiber pumping technology to realize the high performance output laser.

The output power can be up to 10W and the near diffraction-limited beam quality is achieved at the same time. They can be widely used in the areas of scientific research, experimental teaching and device testing. The 1.5um CW fiber laser of Connet Laser employs the control system based on microprocessor which has stable property, long lifetime and free maintenance.

With a clear interface and easy control, the LCD on the front panel can give a real-time display of the operating state of the output power and the temperature. The LCD can also offer warning messages. Besides, in order to be convenient for system integration, Connet Laser also can offer the modularized encapsulation according to the user's requirements.

Specifications

Center Wavelength:	1530 nm
Output Power:	20 W
Output Mode:	Not Specified
Beam Quality (M^2):	1.2
Spectral Linewidth:	Not Specified
Output Power Stability:	0.4% ~ 0.5%
Output Fiber Type:	SM Fiber
Output Fiber Length:	2 m
Interface:	Other / Not-specified
Cooling:	Other
Electrical Requirements:	110V - 60Hz, 115V - 50Hz, 115V - 60Hz, 120V - 60Hz, 127V - 50Hz, 127V - 60Hz, 220V - 50Hz, 230V - 50Hz, 230V - 60Hz, 240V - 50Hz

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High output power: up to 10W
Excellent beam quality
High stability and reliable performance
All-fiber structure
Single-mode output, PM optional

Applications

Fiber optical communication
Free-space communication
Fiber optical sensing
Test and measurement
Scientific research

Request Quote

To: Connet Laser Technology Co., Ltd.
Re: VENUS Series1.5um Single-mode CW Fiber Laser

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: China
Sold by:: Connet Laser Technology Co., Ltd. ✓ Verified Supplier
On FindLight:: since 2016

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the wavelength of the VENUS Series 1.5um Single-mode CW Fiber Laser?

The wavelength of the VENUS Series 1.5um Single-mode CW Fiber Laser is between 1530-1575 nm.

What is the maximum output power of the VENUS Series 1.5um Single-mode CW Fiber Laser?

The maximum output power of the VENUS Series 1.5um Single-mode CW Fiber Laser is up to 20W.

What are the applications of the VENUS Series 1.5um Single-mode CW Fiber Laser?

The applications of the VENUS Series 1.5um Single-mode CW Fiber Laser include fiber optical communication, free-space communication, fiber optical sensing, test and measurement, scientific research, and material processing.

What is the beam quality of the VENUS Series 1.5um Single-mode CW Fiber Laser?

The VENUS Series 1.5um Single-mode CW Fiber Laser has an excellent near diffraction-limited beam quality.

What is the output stability of the VENUS Series 1.5um Single-mode CW Fiber Laser?

The output power stability of the VENUS Series 1.5um Single-mode CW Fiber Laser is ±0.5% for 15 minutes and ±1% for 8 hours.
