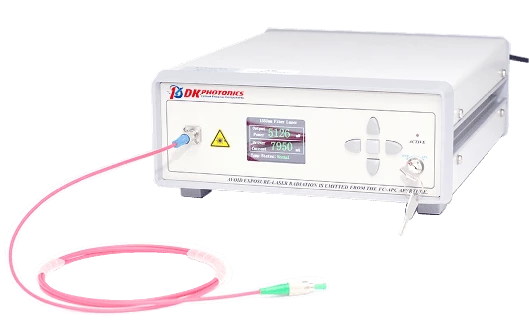

Thumbnail of 1450nm Raman Amplifier Pump Laser photo 1

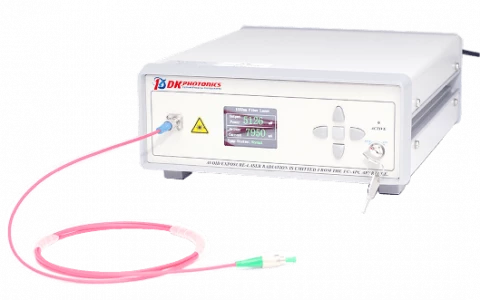

Thumbnail of 1450nm Raman Amplifier Pump Laser photo 2

Description

1450 nm Raman Amplifier Pump Laser – High‑Power, Ultra‑Stable Fiber Laser Source

The 1450 nm Raman Amplifier Pump Laser from DK Photonics is a precision-engineered, single‑mode fiber laser source designed specifically for Raman amplification and fiber laser pumping applications. Built around a high‑performance butterfly semiconductor laser diode, this source delivers high output powers up to 500 mW in the 1425–1465 nm band, with exceptional power and wavelength stability. By integrating a professionally designed low‑noise driver and TEC temperature control, the unit ensures reliable, long‑term operation even in demanding laboratory and system‑integration environments.

Operating at selectable center wavelengths of 1425, 1435, 1455, or 1465 nm with MHz‑level wavelength accuracy, this laser is optimized as a pump for fiber‑based Raman amplifiers and as a versatile seed or pump source for nonlinear optical experiments. The high spectral purity and low intensity noise make it suitable for telecom C‑band and L‑band Raman amplification, distributed Raman amplification in long‑haul fiber systems, and scientific research where precise control over the pump wavelength and output power is critical. Short‑term power stability better than ±0.02 dB and long‑term stability better than ±0.05 dB support highly repeatable measurements and consistent system performance.

To simplify integration into a wide range of setups, the 1450 nm Raman pump laser is offered in both desktop and compact module configurations. The desktop version provides user‑friendly front‑panel control for quick setup, making it ideal for R&D labs, prototyping, and educational environments. The module configuration, with RS232 control and a DB9 interface, is tailored for OEM and system‑level integration where remote operation, automation, and compact footprint are priorities. Both versions are built around SMF‑28e single‑mode fiber output with an FC/APC connector, ensuring low back‑reflection and easy connection to standard telecom and photonics components.

The laser operates over a broad temperature range from −5°C to +55°C and a humidity range from 0% to 70%, enabling stable performance in typical indoor and light industrial environments. The desktop unit uses a universal 100–240 V AC power supply with power consumption under 30 W, while the module operates from a 5 V DC supply with power consumption below 15 W—ideal for space‑ and power‑constrained applications. With flexible output power options (200 mW, 350 mW, or 500 mW) and multiple wavelength choices, the 1450 nm Raman Amplifier Pump Laser provides a robust, scalable platform for building advanced Raman amplifiers, fiber laser systems, and nonlinear optics experiments.

1450nm Raman Amplifier Pump Laser

Visit the DK Photonics Store

Specifications

Center Wavelength: 1450 nm
Output Power: 0.5 W
Output Power Stability: 0.3% ~ 0.4%
Output Fiber Type: SMF-28
Interface: Other / Not-specified
Cooling: Air Cooled
Electrical Requirements: 220V - 50Hz, 230V - 50Hz, 230V - 60Hz, 240V - 50Hz
Product: 1450nm Raman Amplifier Pump Laser
Center Wavelength Options: 1425 / 1435 / 1455 / 1465 nm
Wavelength Accuracy: ±3 MHz
Output Power Options: 200 / 350 / 500 mW
Short-term Stability (15 Minutes): ≤ ±0.02 dB
Long-term Stability (8 Hours): ≤ ±0.05 dB
Fiber Type: SMF-28e
Optical Connector: FC/APC
Package Type Options: Module, Desktop
Module Control Mode: RS232
Desktop Control Mode: Button
Module Communication Interface: DB9 Female (optional)
Desktop Power Supply: 100–240 V AC, <30 W
Module Power Supply: 5 V DC, <15 W
Desktop Dimensions: 260(W)×280(D)×120(H) mm
Module Dimensions: 125(W)×150(D)×20(H) mm
Operating Temperature Range: -5 to +55 °C
Operating Humidity Range: 0–70 %

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-Power 1450 nm Raman Pump Source – Available center wavelengths at 1425 / 1435 / 1455 / 1465 nm with typical output powers of 200 mW, 350 mW, and 500 mW, ideal for C- and L-band Raman amplification and fiber laser pumping.
  • Exceptional Power and Wavelength Stability – Short-term power stability of ≤ ±0.02 dB (15 minutes) and long-term stability of ≤ ±0.05 dB (8 hours), ensuring highly repeatable performance for laboratory and system integration use.
  • Precision Wavelength Control – Tight wavelength accuracy of ±3 MHz, suitable for demanding Raman amplifier designs, nonlinear optics experiments, and wavelength-sensitive research applications.
  • Single-Mode Fiber Output (SMF-28e) – High-quality SMF-28e output fiber with standard FC/APC connector provides low back-reflection, stable beam quality, and easy integration into telecom and photonics test setups.
  • High-Reliability Butterfly Laser Diode – Uses a high-performance butterfly-packaged semiconductor laser with optimized drive and TEC control for long lifetime, low noise, and robust continuous-wave (CW) operation.
  • Advanced Temperature and Current Control – Professionally designed low-noise driving circuits and integrated TEC stabilization maintain constant operating conditions, minimizing drift in both output power and spectrum.
  • Flexible Mechanical Configurations – Offered in both a compact module (approx. 125(W) × 150(D) × 20(H) mm) for OEM integration and a user-friendly desktop unit (approx. 260(W) × 280(D) × 120(H) mm) for laboratory use.
  • Easy-to-Use Operation & Control – Desktop version supports simple local control via front-panel buttons, while the module version offers RS232 (DB9) digital interface for remote control, automation, and system monitoring.
  • Wide Input Power Compatibility – Desktop model operates from a universal 100–240 V AC mains supply (<30 W max.), and the module runs from a low-voltage 5 V DC supply (<15 W max.), simplifying integration into diverse environments.
  • Rugged Design for Continuous Operation – Engineered for reliable 24/7 operation with robust electrical protection, ensuring safe laser startup, stable running, and protection of the laser diode against overcurrent and overheating.
  • Broad Environmental Operating Range – Designed to operate from -5 to +55 °C and 0–70% relative humidity, making it suitable for both controlled laboratory conditions and more challenging field or rack-mounted environments.
  • Optimized for Raman Amplifier Pumping – Spectrally tailored for distributed and lumped Raman amplification in optical fiber communication systems, enabling noise figure improvement and extended transmission reach.
  • Ideal for Fiber Laser Pumping – Provides stable, narrowband pump light for fiber lasers and amplifiers based on nonlinear and Raman-gain processes, supporting research and development of high-performance fiber laser systems.
  • Excellent for Nonlinear Optics Research – High optical power, narrow linewidth, and stable output make this source suitable for nonlinear fiber optics, supercontinuum generation, and parametric process experiments.
  • Low-Noise Continuous-Wave Output – Optimized drive electronics and thermal design deliver low intensity noise and minimal spectral broadening, enhancing measurement accuracy and system performance.
  • Compact Footprint for OEM Integration – Slim module package significantly saves space in system racks and experimental benches, ideal for instrument manufacturers and integrated photonic systems.
  • Standard Telecom-Grade Components – Built with telecom-qualified laser diodes, fibers, and connectors to ensure long-term reliability, low failure rate, and consistent performance in professional optical networks.
  • Customizable Wavelength and Power Options – Supports customization of center wavelength, output power, fiber type, and packaging to match specific system designs or research requirements.
  • Globally Supported by DK Photonics – Backed by DK Photonics’ engineering support for design-in, customization, and after-sales service, helping users optimize their Raman amplifier or fiber laser solutions.

Applications

  • High-performance pump source for fiber Raman amplifiers in long-haul and metro optical communication links, providing 1450 nm band pumping for extended transmission distance and OSNR improvement.
  • Pump laser for distributed Raman amplification (DRA) in DWDM systems, enabling gain flattening and noise reduction in C- and L-band transmission fibers.
  • Pump source for discrete Raman fiber amplifiers (RFA) used in optical amplifiers, gain blocks, and pre-amplifiers in advanced telecom networks.
  • Fiber laser pumping for 1.5 µm class fiber lasers and oscillators, including Erbium-doped and Er/Yb co-doped fiber lasers requiring 14xx nm pump wavelengths.
  • Laboratory pump laser for nonlinear fiber optics experiments, including Raman scattering, four-wave mixing, supercontinuum generation, and parametric amplification studies.
  • Test and characterization source for optical components such as WDMs, couplers, isolators, filters, AWGs, and EDFAs requiring a stable, narrow-linewidth 1450 nm light input.
  • Light source for R&D in optical fiber sensing (Raman-based distributed temperature sensing, hybrid Raman/Brillouin systems, and specialty fiber characterization in the 1.45 µm band).
  • Pump laser for specialty Raman gain media including highly nonlinear fibers, dispersion-shifted fibers, and photonic crystal fibers used in research-grade Raman amplifiers.
  • Seed or pump in 1.4–1.5 µm band tunable laser setups when combined with external modulators, filters, and amplifiers in advanced photonics labs.
  • Optical source for evaluating Raman-resistant fiber designs in telecom and specialty fibers by providing a stable 1450 nm excitation wavelength.
  • Educational and training platform on Raman amplification and nonlinear fiber optics in universities, research institutes, and photonics teaching laboratories.
  • Reference light source in system reliability and aging tests for optical fibers and passive components operating around 1450 nm.
  • Pump source in multi-stage amplification chains combining Raman and EDFAs to achieve ultra-long-reach transmission in backbone networks.
  • Source for optical network simulation testbeds where configurable 1425/1435/1455/1465 nm pumps are required to emulate real Raman-pumped links.
  • OEM integration into rack or module-based systems as a compact, RS232-controlled 1450 nm pump module for telecom, test, or research equipment manufacturers.

Frequently Asked Questions

What is the DK Photonics 1450nm Raman Amplifier Pump Laser and what is it used for?
The DK Photonics 1450nm Raman Amplifier Pump Laser is a high‑power single‑mode semiconductor laser source with fiber output, designed primarily as a pump for fiber Raman amplifiers and fiber lasers. It operates in the 1450 nm band (with options at 1425, 1435, 1455, and 1465 nm) and is built with a high‑performance butterfly laser diode, precision TEC temperature control, and a low‑noise driver. Typical applications include fiber Raman amplifiers in optical communication systems, pumping of specialty fiber lasers, and research in nonlinear fiber optics and Raman scattering.
What center wavelength and output power options are available for this 1450nm Raman pump laser?
This Raman amplifier pump laser is available at four center wavelengths: 1425 nm, 1435 nm, 1455 nm, and 1465 nm, with a wavelength accuracy of ±3 MHz. Standard continuous‑wave output power levels are 200 mW, 350 mW, and 500 mW at the selected wavelength. DK Photonics can also provide customized power levels within this range on request. All standard versions use SMF‑28e single‑mode fiber with an FC/APC connector for low back‑reflection, which is typical for Raman pump lasers used in telecom and fiber laser systems.
How stable is the output power of the DK Photonics 1450nm Raman pump compared with similar Raman pump lasers?
The DK Photonics 1450 nm Raman pump laser offers high power stability, with short‑term power stability of ≤ ±0.02 dB over 15 minutes and long‑term stability of ≤ ±0.05 dB over 8 hours under constant operating conditions. These values are competitive with many telecom‑grade Raman pump modules from other manufacturers and are suitable for applications where gain stability is critical, such as distributed Raman amplification in long‑haul fiber links, precision fiber sensing, and laboratory nonlinear optics experiments. The integrated TEC control and low‑noise driver help maintain stable optical output over the specified operating temperature range.
What package options and control interfaces are offered for the 1450nm Raman Amplifier Pump Laser?
The laser is available in two package types: a desktop unit and a compact module. The desktop version includes push‑button operation on the front panel, an internal AC power supply (100–240 V AC,
How do I specify and order a DK Photonics 1450nm Raman pump laser correctly?
DK Photonics uses a structured part number format: ①‑②‑③‑④‑⑤. For this product, key options are: ① FL (fiber laser series), ② operation wavelength (1425/1435/1455/1465 nm), ③ output power (200/350/500 mW), ④ fiber type (S28 for SMF‑28e), and ⑤ package type (M for module, B for desktop). When requesting a quote or placing an order, specify the exact center wavelength, power level, fiber type, connector (standard is FC/APC), and package type. If you require non‑standard specifications (different fiber, connector, power, or electrical interface), provide a detailed description so DK Photonics can offer a customized configuration.
What are the electrical and environmental operating conditions for the 1450nm Raman pump module and desktop versions?
The desktop version operates from a universal AC mains input of 100–240 V AC with power consumption under 30 W. The module version requires a 5 V DC supply with power consumption under 15 W. Both versions are specified for operation in ambient temperatures from −5°C to +55°C and relative humidity from 0 to 70% (non‑condensing). Within these conditions, the integrated TEC maintains the laser diode at a stable temperature to ensure wavelength and power stability. For best reliability, operation near the center of the temperature range and in a low‑vibration, dust‑free environment is recommended, similar to standard practices for telecom‑grade Raman pump lasers.
Is customization available for the 1450nm Raman Amplifier Pump Laser (wavelength, fiber type, connectors, or power)?
Yes. While standard configurations cover four center wavelengths (1425, 1435, 1455, 1465 nm), output powers of 200, 350, and 500 mW, SMF‑28e fiber, and FC/APC connectors, DK Photonics can customize many parameters. Common custom options include specific target wavelengths within the 1450 nm band, alternative output powers, different fiber types (e.g., PM or specialty fibers to match your Raman gain fiber), and other connector types (such as SC/APC). Interface options for the module and additional control features may also be available. To request customization, provide detailed requirements—wavelength, required power at fiber output, fiber and connector type, package style, and control interface—when contacting DK Photonics sales.
