Description
The Fiber Optic ATR-Probes for Lab Applications from art photonics are designed to provide accurate and cost-effective solutions for in-line reaction monitoring in small lab reactors and open vessels. These probes feature evanescent absorption spectra without dead zone problems, ensuring reliable and precise measurements.
With optimal ATR-crystal selection to match specific customer applications, these probes offer versatility and performance. Compatible with various types of FT-IR and other IR-spectrometers, photometers, and sensors, they provide flexibility in laboratory setups.

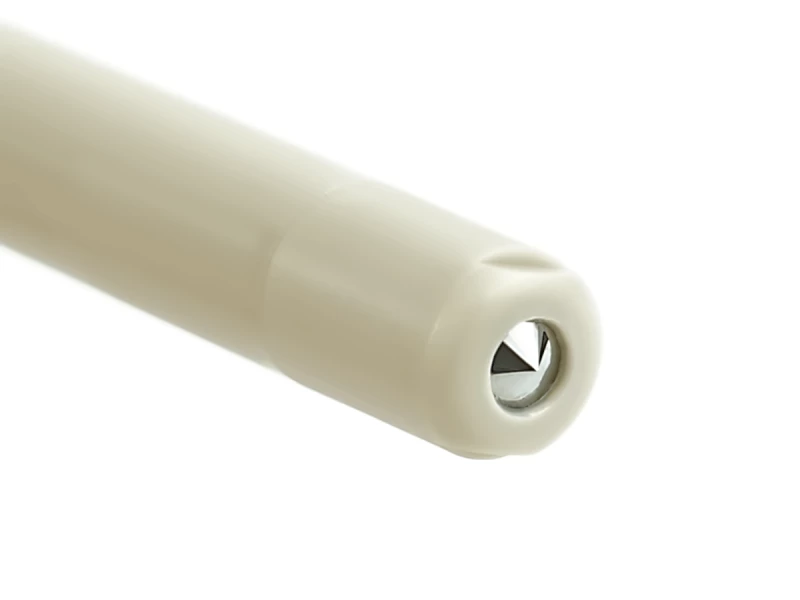

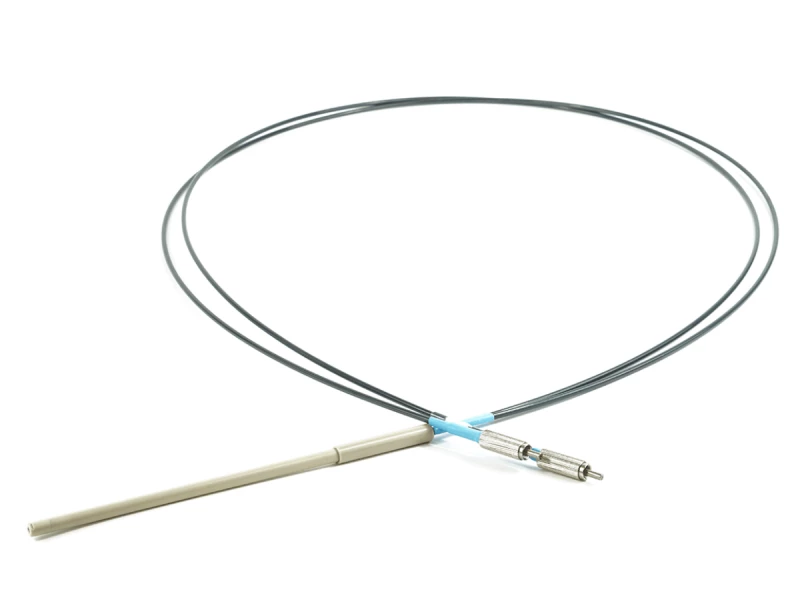

Fiber Optic ATR-Probes for Lab Applications Si
Specifications
| Transmission: | 3.2 – 17 um |
|---|---|
| Temperature Range: | -100 – 140 C |
| Fiber Type: | PIR-900/1000 |
| Pressure (max): | 7 Bar |
| Total Length: | 1,5 m (opt: 1 to 5m) |
| Shaft Length: | 150mm (opt.:100 to 500mm) |
| Shaft Diameter: | 6.3 mm |
| Shaft Material: | PEEK (polyetheretherketone) |
| Length Of Legs: | 500mm (opt.: 200 to 500mm) |
| Protective Tube Material: | PEEK |
| Minimum Bending Radius: | 130 mm |
| Input / Output Connectors: | Long SMA (opt.: any other type) |
| Evanescent Absorption Spectra: | Yes |
| Dead Zone: | No |
Download Data Sheet
Features
- Evanescent absorption spectra without dead zone problems

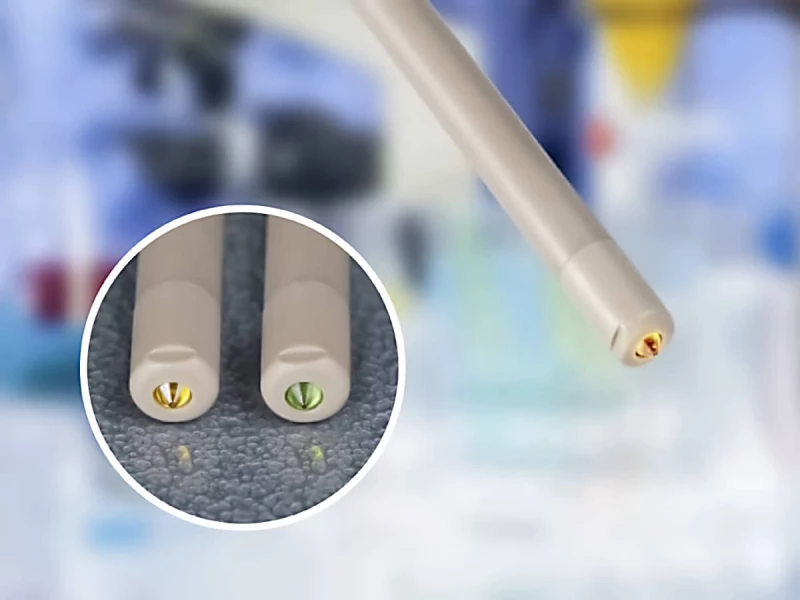

- Optimal ATR-crystal selection to match customer applications
- Cost-effective solution for in-line reaction monitoring
Applications
- Reaction monitoring in real-time
- Remote polymerization control
- Crystallization process screening
- In-situ IR-Spectroscopy for soft surfaces, pastes, and liquids
Frequently Asked Questions
What are Fiber Optic ATR-Probes used for?
Fiber Optic ATR-Probes are used for reaction monitoring in real time, remote polymerization control, crystallization process screening, and in-situ IR-spectroscopy for soft surfaces, pastes, and liquids.
What are the common parameters of Fiber Optic ATR-Probes?
The common parameters of Fiber Optic ATR-Probes include total length of 1.5m (opt.: 1m to 5m), shaft length of 150mm (opt.: 100mm to 500mm), shaft diameter of 6.3mm, and shaft material of PEEK (polyetheretherketone).
What is the transmission range of the different types of ATR elements?
The transmission range of the different types of ATR elements are 3.2-17μm (3100-600cm-1) for ZnSe, 3.2-17μm (3100-600cm-1) for Ge, 3.2-17μm (3100-600cm-1) for Si, and 1.1-6.5μm (9000-650cm-1) for ZrO.
What is the temperature range of Fiber Optic ATR-Probes?
The temperature range of Fiber Optic ATR-Probes is -100°C / +140°C.
What is the maximum pressure that Fiber Optic ATR-Probes can withstand?
The maximum pressure that Fiber Optic ATR-Probes can withstand is 7 Bar.
