Description
DK Photonics\' Single mode coupler 1X2/2X2 offer very low insertion loss, low polarization dependence and excellent environmental stability Accurate coupling ratio from 50/50 to 1/99 and fiber type 250um bare fiber, 3mm and 900um loose tube fiber are available with very tight uniformity. Single mode standard coupler and wideband coupler components find extensive application to perform power splitting and monitoring functions in all kinds of optical communication systems. The products are Telcordia GR-1221/1209-CORE qualified, and RoHS compliant.

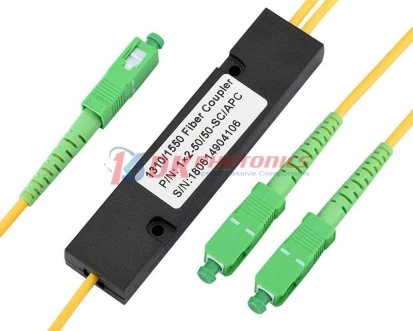

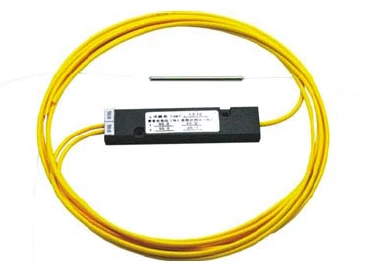

Single Mode Single Window Coupler
Specifications
Type: | Fused Biconical Taper (FBT), Planar Lightwave Circuit (PLC) |
---|---|
Configuration: | 1x2, 2x2 |
Splitting Ratio: | 50/50 |
Wavelength: | 1310 nm |
Fiber Type: | Single-mode (SM) |
Connector Type: | FC |
Housing Material: | Stainless Steel, Plastic, Aluminum, Polymer |
Features
- Low excess loss
- Various coupling ratio
- Compact size
Applications
- Long-haul telecommunications
- CATV systems & Fiber sensors
- Local area network
Frequently Asked Questions
What is the DK Photonics Single Mode Single Window Coupler used for?
The DK Photonics Single Mode Single Window Coupler is used for power splitting and monitoring functions in all kinds of optical communication systems, including long-haul telecommunications, CATV systems, fiber sensors, and local area networks.
What are the features of the DK Photonics Single Mode Single Window Coupler?
The DK Photonics Single Mode Single Window Coupler features low excess loss, various coupling ratios, and a compact size.
What is the coupling ratio range for the DK Photonics Single Mode Single Window Coupler?
The DK Photonics Single Mode Single Window Coupler offers an accurate coupling ratio range from 50/50 to 1/99.
What types of fiber are compatible with the DK Photonics Single Mode Single Window Coupler?
The DK Photonics Single Mode Single Window Coupler is compatible with fiber types including 250um bare fiber, 3mm, and 900um loose tube fiber.
What are the temperature specifications for the DK Photonics Single Mode Single Window Coupler?
The DK Photonics Single Mode Single Window Coupler has an operating temperature range of -40°C to 85°C and a storage temperature range of -40°C to 85°C.
