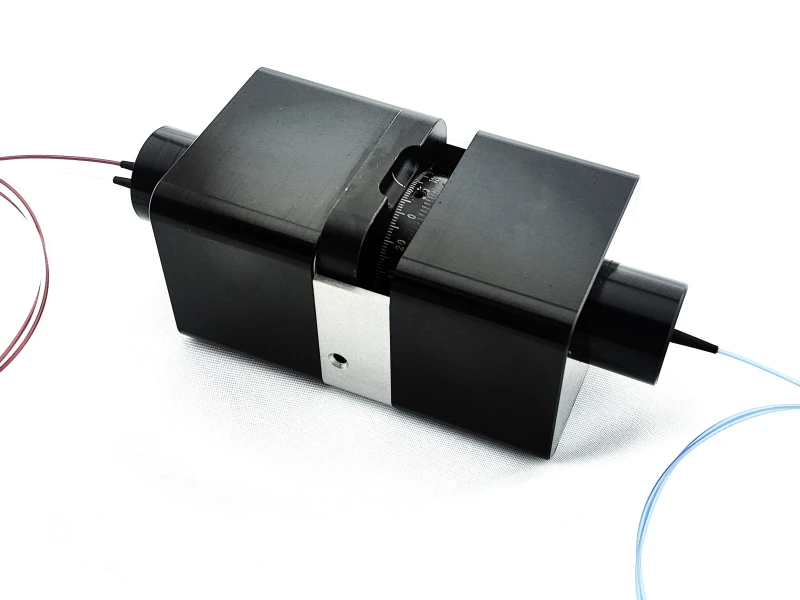

Thumbnail of Ascentta Tunable 1x2 Optical Coupler (1270, 1310, 1450, 1550, 1650nm) photo 1

Description

The MTTC Series Mechanically Tunable Coupler (1x2) from Ascentta offers precise manual control over optical signal splitting, enabling real-time tuning of insertion loss between 0 to 40 dB. Available at key telecom wavelengths including 1270, 1310, 1450, 1550, and 1650 nm, this coupler is ideal for a wide range of optical network applications, lab environments, and fiber optic instrumentation requiring configurable performance.

Designed with minimal excess loss (typical 0.3 dB) and low polarization-dependent loss (PDL ≤ 0.15 dB at 3 dB split), the MTTC series ensures superior signal integrity. It supports optical power handling up to 300 mW, and its compact and rugged 50×45×87 mm form factor enables easy integration into standard systems.

Each device is customizable in terms of fiber type, cable structure, pigtail length, and connector configuration. With a broad operating temperature range of -20°C to +70°C and high directivity (≥55 dB), the MTTC Series is built for both performance and durability in demanding environments.

For custom configurations, Ascentta offers tailored solutions to meet your specific application requirements.

Ascentta Tunable 1x2 Optical Coupler (1270, 1310, 1450, 1550, 1650nm)

Visit the Ascentta Store

Specifications

Type: Other / Not Specified
Configuration: 1x2
Splitting Ratio: 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 25/75, 15/85, 60/40, 80/20
Wavelength: 1270 nm
Fiber Type: Single-mode (SM)
Connector Type: FC, SC, ST, LC, Other / Not specified
Housing Material: Stainless Steel, Plastic, Aluminum
Typical Excess Loss: 0.3 dB
Insertion Loss (Tunable): 0~40 dB
Tunable Ratio: 0~99 %
Max PDL@3dB: 0.15 dB
Min Directivity: 55 dB
Dimensions: 50x45x87 mm
Max Optical Power Handling: 300 mW
Operating Temperature: -20~70 ℃
Manufacturer Part Number (MPN): MTTC-15-12-S-L-10-FA
FindLight SKU: FL-23288

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Tunable Insertion Loss: Adjusts from 0 to 40 dB for flexible signal balancing
  • Low Excess Loss: Typical excess loss of just 0.3 dB ensures high transmission efficiency
  • Low PDL: ≤ 0.15 dB polarization-dependent loss at 3 dB split for reliable performance
  • High Directivity: ≥ 55 dB for excellent isolation between ports
  • Customizable Options: Multiple wavelengths, connector types, and cable structures available

Applications

  • Optical Network Testing: Ideal for real-time signal monitoring and tuning
  • Fiber Optic Labs: Used in prototyping and research requiring precise coupling ratios
  • WDM Systems: Supports dynamic channel balancing across multiple wavelengths
  • Optical Sensing: Enables controllable signal routing for sensor systems
  • Telecom & Datacom Equipment: Integrated into systems requiring adjustable optical attenuation

Export & Trade Information

ECCN: EAR99
HTS Code: 9027.90.8400
Estimated US Tariff: 0%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is the function of a mechanically tunable optical coupler?
A mechanically tunable optical coupler allows manual adjustment of the power split ratio between two output ports. By tuning the insertion loss between 0 and 40 dB, users can precisely control signal distribution in optical systems, making it ideal for testing, balancing, and prototyping applications.
What are the available wavelength options for the MTTC Series?
The MTTC Series supports several telecom and sensing wavelengths, including 1270 nm, 1310 nm, 1450 nm, 1550 nm, and 1650 nm. Custom wavelengths can also be requested to suit specific application requirements.
How much optical power can the MTTC Series handle?
The MTTC coupler can safely handle up to 300 mW of continuous optical power, making it suitable for both standard and moderately high-power fiber optic applications.
What are the connector and fiber type options available?
The MTTC Series is fully customizable. Users can choose from various connector types (FC/APC, SC/PC, LC/UPC, etc.), fiber types (SMF, PMF), and cable jackets (250 µm bare fiber, 900 µm tight buffer, 2 mm or 3 mm jacketed).
Can this product be used in harsh environments?
Yes. With an operating temperature range of -20°C to +70°C and storage tolerance from -40°C to +85°C, the MTTC Series is built for reliable performance even in demanding environments.

Got more questions? Use the inquiry form to ask the supplier directly.
