Description
This UV-VIS-NIR fiber combiner (optical power combiner: 50/125, 105/125, 200/220, 400/440 (400/430), 600/630, 800/830, 1000/1100 μm) is a large core fiber-based passive optical component that combines two or more optical power inputs into one fiber output. The input/output multimode fibers are available from 50 μm (micron) to 1000 μm (micron) in core/cladding diameter. Lfiber’s large core UV-VIS-NIR fiber combiner features wavelength-insensitive & mode-insensitive, compactness, high efficiency, and high reliability. It’s an excellent choice for optical power combination, laser to fiber delivery systems, sensors technology, biomedicine, metrology and related applications.
Notes:
- Above data are test results without connectors.
- Lfiber’s UV-VIS-NIR large core fiber optic combiner (multimode optical coupler) is wavelength-insensitive and modeinsensitive over a broad wavelength range. Also, it can be designed to have an optimum performance for specific wavelength
range according to your applications. So please tell us the accurate operating wavelength range if possible. - Different core/cladding diameters and numerical apertures (NA) of the input/output fibers are optional, as a result, the
combiners may have different transmission efficiency. - Please specify the operating power if the UV-VIS-NIR fiber optic combiner operates on a high-power continuous-wave
(CW) laser, it may need a heat sink design for the package. - If a high-quality output beam (with fewer speckle hot spots and more uniform energy intensity profile) is needed, the large
core fiber combiner can be integrated with LFIBER’s In-line Laser Speckle Reducer (Fiber Optical Beam Homogenizer) to
make a hybrid component. For more info, visit https://www.lfiber.com/laser-speckle-reducer-beam-homogenizer/ - The specifications are customizable and subject to change without notice.
- For product customization or special requirement, please contact our sales representative.

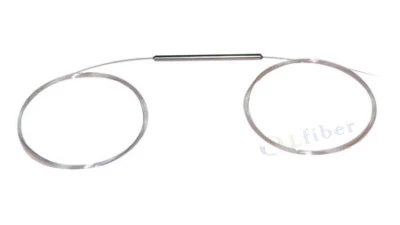

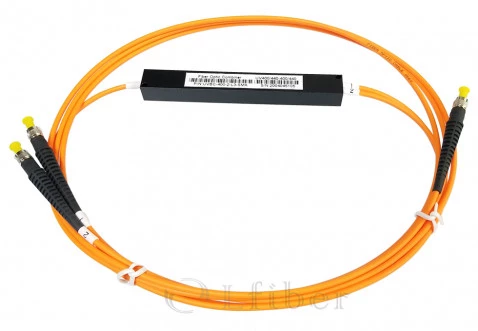

High Power Fiber Optical Combiner (Multimode Fiber Coupler)
Specifications
Type: | Not Specified |
---|---|
Configuration: | Not Specified |
Splitting Ratio: | Not Specified |
Wavelength: | Not Specified |
Fiber Type: | Not Specified |
Connector Type: | Not Specified |
Housing Material: | Not Specified |
Port Configuration: | 2x1, 3x1, 4x1, 5x1, 6x1, 7x1, 8x1, 9x1, 10x1 ~ 32x1 |
Connector: | None, SC/PC, FC/PC, ST, SMA905, Custom |
Operating Wavelength: | 200-1600nm (on request) |
Transmission Efficiency: | 80% ~ 99.5% (Typ. >90%) |
InputFiber Core Diameter (μm): | 50, 105, 200, 400, 600; Others On Request |
Output Fiber Core Diameter (μm): | 200, 400, 600, 800, 1000; Others On Request |
Operating Power: | ≤500mW, ≤1W, ≤5W, ≤50W, ≤100W, ≤200W, ≤300W; Others On Request |
Features
- Different Core-diameter Fibers Available
- Wavelength-insensitive and Mode-insensitive
- All-fiber Monolithic and Compact Design
- High Transmission Efficiency (Typ. >90%)
Applications
- Optical Power/Beam Combination
- Laser to Fiber Delivery Systems
- Sensors Technology
- R&D
Frequently Asked Questions
What is the purpose of the High Power Fiber Optical Combiner?
What are the available core/cladding diameters for the input/output multimode fibers?
Is the High Power Fiber Optical Combiner wavelength-insensitive and mode-insensitive?
Can the combiner be customized for specific wavelength ranges?
Does the combiner require a heat sink design if it operates on a high-power continuous-wave laser?
