Description
The 1310nm 12x(1x2) SM Fiber Fused Coupler is an advanced optical device engineered using the sophisticated fused biconical taper (FBT) technology. This coupler is designed to integrate 12 pieces of 1x2 fused couplers into a compact package, allowing optical signal power to be split into two parts with either even or varied coupling ratios. This versatility makes it an ideal component for a wide range of applications in the fiber optic transmission and sensor fields. The coupler is available in both multimode (MM) and polarization-maintaining (PM) types upon request, catering to diverse operational needs.
Built to deliver exceptional performance, the 1310nm 12x(1x2) SM Fiber Fused Coupler is renowned for its low excess loss and high return loss, ensuring minimal signal degradation and optimal efficiency. The device also boasts low insertion loss and high reliability, making it a dependable choice for critical optical signal transmission tasks. Its robust construction and precise engineering ensure that it meets the demanding requirements of modern optical systems, providing consistent and reliable performance.
The coupler is constructed using SMF-28e fiber, known for its superior quality and performance in optical applications. It operates effectively within a wide temperature range, making it suitable for various environmental conditions. The compact package dimensions of 50x15x4 mm allow for easy integration into existing systems, while its ability to handle a maximum optical power of 500 mW ensures it can support high-power applications. With a focus on quality and performance, the 1310nm 12x(1x2) SM Fiber Fused Coupler is a valuable addition to any optical network.

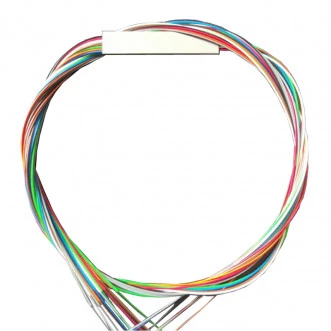

1310nm 12x(1x2) SM Fiber Fused Coupler
Specifications
| Type: | Fused Biconical Taper (FBT) |
|---|---|
| Configuration: | 1x2 |
| Splitting Ratio: | Other / Not specified |
| Fiber Type: | Single-mode (SM) |
| Connector Type: | Other / Not specified |
| Housing Material: | Other / Not specified |
| Wavelength: | 1310 nm |
| Configuration: | Nx(1x2) |
| Max. Excess Loss: | 0.3 dB |
| Coupling Ratio: | 1~99 % |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Low Excess Loss: Ensures minimal signal degradation with ≤0.3 dB
- Low Insertion Loss: Provides efficient power splitting with optimized ratios
- High Return Loss: Guarantees signal integrity with ≥50 dB return loss
- High Reliability: Stable performance in diverse environmental conditions
- Compact Design: Integrates 12x(1x2) couplers in a small footprint
- Wide Wavelength Options: Available at 1310 nm, 1480 nm, 1550 nm, 1570 nm, 1590 nm, 1625 nm
- Versatile Packaging: Supports bare fiber, loose tube, and connectorized options
Applications
- Fiber Optic Transmission: Enables efficient optical power distribution in communication networks
- Fiber Optic Sensors: Supports precision sensing applications requiring stable signal splitting
- Optical Integration Systems: Suitable for integration into advanced photonic devices
- Optical Diffraction Systems: Facilitates high-accuracy signal routing in optical instrumentation
Frequently Asked Questions
What is the wavelength of the 1310nm 12x(1x2) SM Fiber Fused Coupler?
How many fused couplers are integrated into the 1310nm 12x(1x2) SM Fiber Fused Coupler?
What are the applications of the 1310nm 12x(1x2) SM Fiber Fused Coupler?
What is the maximum insertion loss of the 1310nm 12x(1x2) SM Fiber Fused Coupler?
What is the storage temperature range for the 1310nm 12x(1x2) SM Fiber Fused Coupler?
Got more questions? Use the inquiry form to ask the supplier directly.
