Description
The Adjustable Focus Laser to Fiber Coupler is a high-power optical coupling solution designed for applications where coupling efficiency is crucial, especially in high-power situations. It features a special connector that allows precise control of the spacing between the fiber and lens without rotating the fiber.
This is particularly advantageous for polarization maintaining applications, as it maintains the polarization axis. The adjustable focus capability enables compensation for changes in wavelength or beam wave location, optimizing coupling efficiency and minimizing fiber heating.

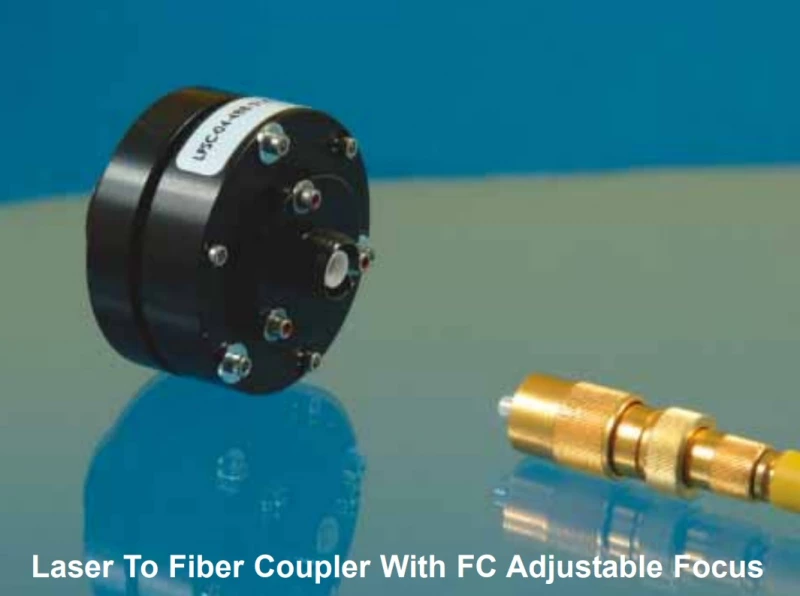

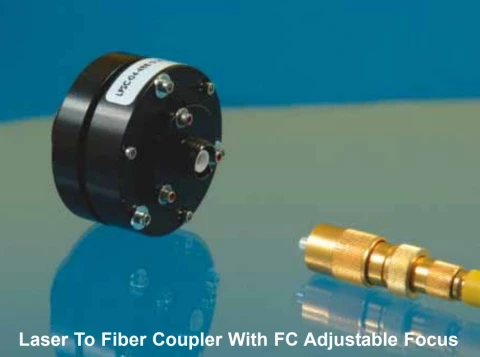

Adjustable Focus Laser to Fiber Coupler
Specifications
Coupling Efficiency: | Typically >70% for singlemode and polarization maintaining fibers; >90% for multimode fibers |
---|---|
Backreflection Levels: | <-35dB for multimode fibers; <-40dB for singlemode and polarization maintaining fibers; <-60dB versions are also available |
Polarization Extinction Ratios: | >20dB; 25dB and 30dB versions are also available |
Available Wavelengths: | 200 - 2100 nm |
Power Handling: | >5 Watts CW for achromats; >10 Watts CW for aspheric lenses; >100 Watts CW for fused silica or plano-convex and biconvex lenses (multimode fibers); >100 Watts CW for axial GRIN lenses (SM, PM, and LMA fibers) |
Features
- Can handle CW powers of up to 100W

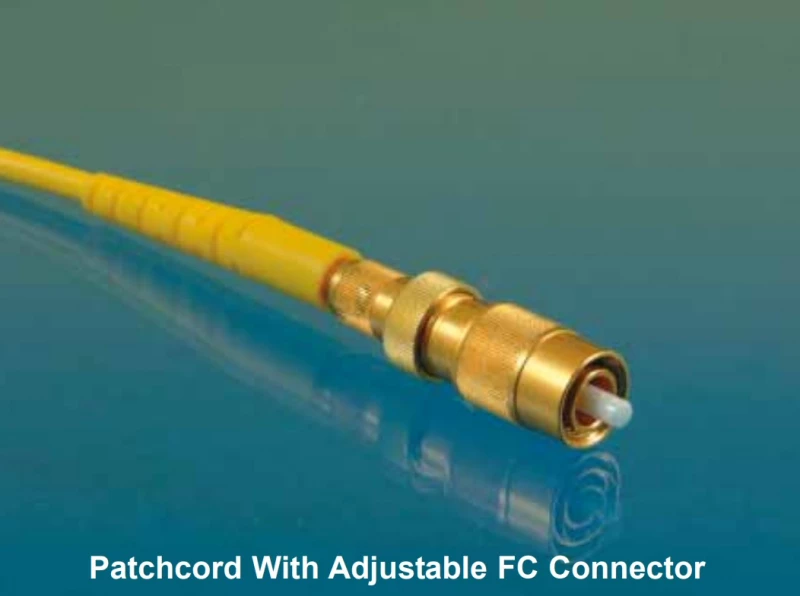

- Patented connector designs for precise coupling with focus adjustment
- Excellent coupling efficiency up to 90%
- Operating wavelengths from 200nm to 2100nm
- Fiber end caps with ±25 micron thickness tolerance
- Suitable for laser marking, cutting, welding, and shows
- Ideal for materials processing, high-power spectroscopy, non-linear optics, and laser surgery
- Applications in light detection and ranging (LIDAR) and interferometric sensors
Applications
- Interferometric sensors
- Laboratory applications
- Education and training
- Visual laser alignment for manufacturing
- Medical, pharmaceutical, and chemical sensors
- Fluorescence measurements
- OEM laser systems
Frequently Asked Questions
What is the Adjustable Focus Laser to Fiber Coupler used for?
The Adjustable Focus Laser to Fiber Coupler is used for high-power optical coupling in applications where coupling efficiency is crucial, especially in high-power situations.
What is the maximum power that the Adjustable Focus Laser to Fiber Coupler can handle?
The Adjustable Focus Laser to Fiber Coupler can handle CW powers of up to 100W.
What are the advantages of the Adjustable Focus Laser to Fiber Coupler?
The Adjustable Focus Laser to Fiber Coupler features a special connector that allows precise control of the spacing between the fiber and lens without rotating the fiber. This is advantageous for polarization maintaining applications as it maintains the polarization axis. It also has adjustable focus capability to compensate for changes in wavelength or beam wave location, optimizing coupling efficiency and minimizing fiber heating.
What are some applications of the Adjustable Focus Laser to Fiber Coupler?
The Adjustable Focus Laser to Fiber Coupler is suitable for laser marking, cutting, welding, and shows. It is also ideal for materials processing, high-power spectroscopy, non-linear optics, and laser surgery. It can be used in light detection and ranging (LIDAR) and interferometric sensors.
What are the specifications of the Adjustable Focus Laser to Fiber Coupler?
The Adjustable Focus Laser to Fiber Coupler has excellent coupling efficiency up to 90% and operates at wavelengths from 200nm to 2100nm. It has fiber end caps with ±25 micron thickness tolerance.
