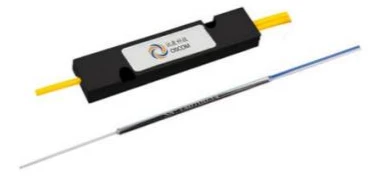

Thumbnail of 1x2/2x2 or 1x3/3x3 PM Fiber Coupler photo 1

Description

XHP 1×2/2×2 and XHP 1×3/3×3  polarization maintaining fiber coupler features low insert loss, wavelength and coupling ratio can be customized, stable and reliable. It can be integrated into fiber gyroscope, fiber sense, fiber measuring equipment and PM fiber amplifier etc.



1x2/2x2 or 1x3/3x3 PM Fiber Coupler

Visit the Shenzhen Oscom Technology Co., Ltd Store

Specifications

Type: Other / Not Specified
Configuration: 1x2, Other
Splitting Ratio: Other / Not specified
Fiber Type: Multi-mode (MM)
Connector Type: Other / Not specified
Housing Material: Aluminum
Port Type: 1x2/2x2/1x3/3x3
Operating Wavelength: 780-2000nm nm
Bandwidth: +-20+-30 nm
Excess Loss: ≤0.3 dB
Extinction Ratio: ≥15 dB
Max. Holding Power: 2 w
Directivity: ≥55 dB
Part Type: XHP-PMC
Fiber: PM panda fiber

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low Insertion Loss: The CHENGDU XUNHONG PHOTONICS 1×3/3×3 PM Fiber Coupler is designed to minimize insertion loss, ensuring efficient signal transfer.
  • Customizable Wavelength and Coupling Ratio: Offers flexibility with customizable wavelength options and coupling ratios to meet specific application needs.
  • Stable and Reliable: Engineered for stability and reliability, making it suitable for integration into various fiber optic systems.
  • Wide Operating Temperature Range: Functions effectively in temperatures ranging from -40°C to +85°C, suitable for diverse environmental conditions.
  • High Extinction Ratio: Provides a high extinction ratio of up to ≥18 dB, ensuring excellent polarization maintaining performance.
  • Versatile Applications: Ideal for use in fiber gyroscopes, fiber sensing, fiber measuring equipment, and PM fiber amplifiers.
  • Multiple Operating Wavelengths: Supports a range of wavelengths including 780nm, 830nm, 980nm, 1064nm, 1310nm, 1480nm, 1550nm, and 2000nm.
  • High Directivity: Offers a directivity of ≥55 dB, enhancing signal quality by reducing cross-talk.
  • Compact Design: Available in various package sizes to fit different installation requirements.
  • Multiple Pigtail Options: Choose from 250um bare fiber, 900um loose tube, 2mm loose tube, or 3mm loose tube pigtails for flexible connectivity.

Applications

  • Fiber Gyroscope: The 1×3/3×3 PM Fiber Coupler can be integrated into fiber gyroscopes, enhancing their performance and reliability.
  • Fiber Sensing: Ideal for fiber sensing applications, providing stable and precise measurements.
  • Fiber Measuring Equipment: Suitable for use in various fiber measuring instruments, ensuring accurate data collection.
  • PM Fiber Amplifier: Enhances the performance of PM fiber amplifiers by maintaining polarization and reducing signal loss.

Frequently Asked Questions

What is the purpose of the XHP 1x2/2x2 or 1x3/3x3 PM Fiber Coupler?
The XHP 1x2/2x2 or 1x3/3x3 PM Fiber Coupler can be integrated into fiber gyroscope, fiber sense, fiber measuring equipment, and PM fiber amplifier.
Can the wavelength and coupling ratio of the coupler be customized?
Yes, the wavelength and coupling ratio of the coupler can be customized according to your requirements.
What is the insert loss of the XHP 1x2/2x2 or 1x3/3x3 PM Fiber Coupler?
The insert loss of the coupler is low, but the specific value is not provided in the product description.
What types of fibers are compatible with the coupler?
The coupler is compatible with PM panda fiber and LMA panda fiber.
What is the operating temperature range of the coupler?
The coupler can operate within a temperature range of -40 to +85 degrees Celsius.
