Description
The Fiber to Photodiode Couplers by OZ Optics offer high coupling efficiency and are available in single mode, polarization maintaining, and multimode versions. These compact couplers feature InGaAs or Si photodiodes and can be customized with specific diodes.
They are ideal for applications such as power measurements, optical signal measurements, optical power control devices, fiber optic sensors, and data transmission systems. OZ Optics provides packaging services for photodiodes at a low cost, offering rugged and flexible designs for easy alignment.

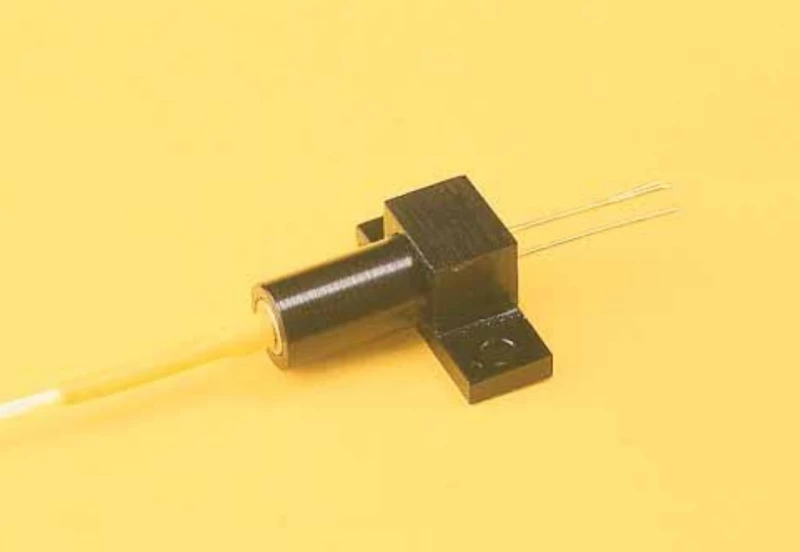

Fiber to Photodiode Couplers
Specifications
| Coupling Efficiency: | High |
|---|---|
| Housing: | Compact |
| Photodiode: | InGaAs, Si (Standard); Custom specific diodes |
| Packaging Services: | Available at a low cost |
| Coupler Design: | Rugged and flexible |
| Alignment Adjustment: | Tilt adjustment technique (recommended for small surface area photodiodes) |
| Fiber Options: | Wide variety of fiber types, cable sizes, and connectors available |
| Hermetic Sealing Options: | Metallized fibers, lenses, soldering techniques |
| Receptacle Style Couplers: | Typically available for multimode applications or large active area photodiodes |
Download Data Sheet
Features
- High coupling efficiency
- Available in single mode, polarization maintaining, and multimode versions
- Compact housing
- Standard InGaAs or Si photodiodes
- Customizable with specific diodes
- Small active area photodiodes for high bandwidth
Applications
- Power measurements
- Optical signal measurements
- Optical power control devices
- Fiber optic sensors
- Data transmission systems
Frequently Asked Questions
What are Fiber to Photodiode Couplers?
Fiber to Photodiode Couplers are devices that offer high coupling efficiency and are used for applications such as power measurements, optical signal measurements, optical power control devices, fiber optic sensors, and data transmission systems.
What are the applications of Fiber to Photodiode Couplers?
Fiber to Photodiode Couplers are used for power measurements, optical signal measurements, optical power control devices, fiber optic sensors, and data transmission systems.
What is the coupling efficiency of Fiber to Photodiode Couplers?
The typical coupling efficiency exceeds 80 percent for single mode fibers, although this varies depending on the fiber and photodiode characteristics.
What types of Photodiodes are available with Fiber to Photodiode Couplers?
The Fiber to Photodiode Couplers are available with InGaAs or Si photodiodes as standard. They can also be customized with specific diodes.
What are the different versions of Fiber to Photodiode Couplers available?
The Fiber to Photodiode Couplers are available in single mode, polarization maintaining, and multimode versions.
