Description
Introducing our Refocusing & Collimating Fiber/Lens Objective, the perfect accessory for your mid-infrared fiber spectroscopy needs. This advanced objective is designed to provide precise refocusing and collimation of light in your spectroscopy experiments.
Experience the reliability and versatility of our Refocusing & Collimating Fiber/Lens Objective, designed to enhance your mid-infrared fiber spectroscopy experiments. Visit our storefront to learn more and explore our complete range of accessories for mid-IR fiber spectroscopy.

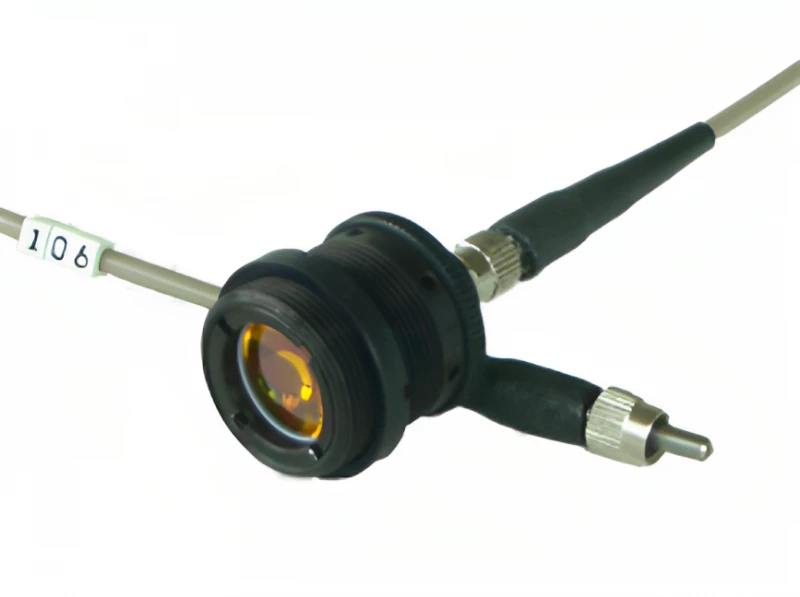

Refocusing & Collimating Fiber/Lens Objectives
Specifications
Z-Translation Stage: | Adjustable in ±5 mm range |
---|---|
Lens Material: | ZnSe or Ge (on request) |
Lend Diameter: | Ø15 mm |
Focal Length: | f = 20 mm or 10 mm (on request) |
AR Coating: | 3-5.5µm or 8-12µm (on request) |
Features
- Compatibility: This objective is fully compatible with SMA-terminated fiber cables, ensuring seamless integration into your existing setup.
- Numerical Aperture (NA): With an NA of 0.35 and a pupil diameter of 14 mm, this objective delivers exceptional light gathering capabilities.
- Refocusing or Collimating Design: Switch effortlessly between refocusing a collimated beam into a fiber or collimating the output beam from a fiber, depending on your experimental requirements.
Applications
- Focusing of collimated beam into fiber
- Collimation of output beam from fiber
- Fiber end imagination to detector / emitter element
Frequently Asked Questions
What is the Refocussing & Collimating Fiber/Lens Objectives used for?
The Refocussing & Collimating Fiber/Lens Objectives is used for focussing of collimated beam into fiber, collimation of output beam from fiber, and fiber end imagination to detector / emitter element.
What are the technical parameters of the Refocussing & Collimating Fiber/Lens Objectives?
The Z-translation stage is adjustable in ±5 mm range. The lens parameters are ZnSe or Ge - on request, Ø15 mm; f = 20 mm or 10 mm - on request, and AR - coating for 3-5.5µm or 8-12µm - on request.
What are the features of the Refocussing & Collimating Fiber/Lens Objectives?
The Refocussing & Collimating Fiber/Lens Objectives is compatible with SMA-terminated fiber cables, has NA=0.35, and a pupil diameter of 14 mm. It also has a refocussing or collimating design.
What applications is the Refocussing & Collimating Fiber/Lens Objectives suitable for?
The Refocussing & Collimating Fiber/Lens Objectives is suitable for use in spectroscopy fiber probes and probe couplers, fiber optic bundles and converters, and accessories for Mid IR fiber spectroscopy.
Is the Refocussing & Collimating Fiber/Lens Objectives customizable?
Yes, the Refocussing & Collimating Fiber/Lens Objectives is customizable upon request for lens parameters such as ZnSe or Ge, Ø15 mm; f = 20 mm or 10 mm, and AR-coating for 3-5.5µm or 8-12µm.
