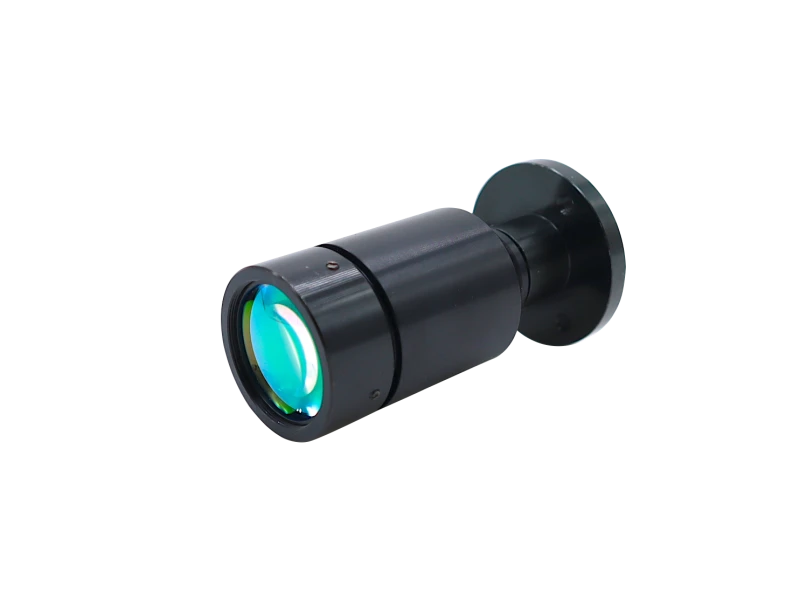

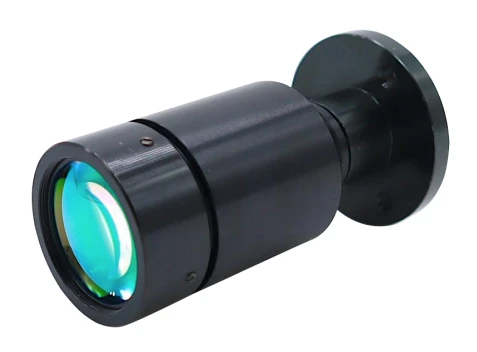

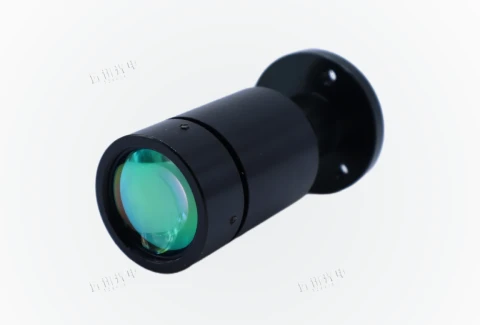

405-1650nm 100M Long Distance Fiber Collimator Single Mode

The fiber optic beam can be collimated and shaped for different lasers output through fiber optic connections, providing diffraction-limited performance at the design wavelength, with a collimation distance of up to 200 meters. The structure of this series of collimators is compact. Aberration correction is performed during design by selecting an air-spaced doublet lens series, which has excellent collimation effect and ability to couple space light. The effective focal length of the doublet lens depends on the wavelength. Therefore, this series of collimators should be used at the design wavelength for optimal performance.

405 - 1650nm 100M Long Distance Fiber Collimator Single Mode

Visit the YSenser Store

Specifications

Center Wavelength: 635 nm
Bandwidth: 60 nm
Numerical Aperture: 0.17
Effective Focal Length (EFL): 72.1 mm
Wavelength Options (model Dependent): 405~1650nm
Bandwidth (model Dependent): ±30nm
Beam Waist (model Dependent): 10.2~15.2
Divergence Angle (model Dependent): 0.06mrad~0.14mrad
EFL (model Dependent): 66.5~76.0mm
Fiber Type: 405HP, 460HP, 630HP, 780HP, 980HP, Smf-28e
Connectors: FC/PC FC/APC SMA905
Transmittance: ＞92%
Manufacturer Part Number (MPN): YSD-XXX-XXXXX-FC/PC
FindLight SKU: FL-23488

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Three Connector Options: FC/PC, FCAPC, SMA905
  • Maintain  good  collimation  characteristics  within  a  range  of 200 meters
  • Compact structure
  • Convenient for installation
  • Custom Options including wavelengths
  • It is recommended to select YSenser's  standard  patch  cords  to  improve  the repeatability  and  consistency of  the  parameters

Applications

  • Fiber Optic Collimation Systems: Ideal for converting divergent light from fiber optics into collimated beams with minimal aberration
  • Laser Diode Beam Shaping: Useful in shaping and directing beams from laser diodes, particularly where Gaussian profiles are desired
  • Optical Sensing and Detection: Enhances precision in sensing applications that require tightly controlled beam direction and low divergence
  • Spectroscopy and Analytical Instruments: Supports accurate light delivery and collection in instruments used for material analysis and spectral diagnostics
  • Optical Communication Systems: Suitable for coupling and transmitting optical signals in high-performance communication networks
  • Biomedical and Life Sciences Equipment: Utilized in systems that require stable and well-aligned optical output, such as in microscopy or diagnostic devices

Export & Trade Information

ECCN: EAR99
HTS Code: 9002.90.9500
Estimated US Tariff: 25%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What types of connectors are available for the YSD series?
The YSD series is available with both FC/APC and FC/PC connectors.
What is the typical wavelength range for the YSD series products?
The YSD series covers a wavelength range from 405nm to 1650nm, each with a bandwidth of ±30nm.
What is the transmittance percentage for these products?
The transmittance for the YSD series products is typically ≥92%.
What is the divergence angle for these products?
The divergence angle for the YSD series products ranges from 0.06mrad to 0.14mrad, depending on the specific model.
What is the beam size specification for the YSD series?
The beam size for the YSD series varies by model, ranging from 10.2mm to 15.2mm, with a tolerance of ±10%.

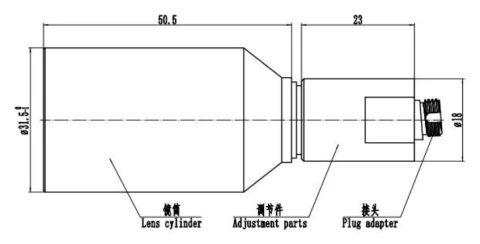

What are the dimensions of the YSD series packages?
The package dimensions for the YSD series are Φ31.5mm in diameter and lengths ranging from L45±1mm to L50±1mm, depending on the model.
What fiber types are used in the YSD series?
The YSD series uses different fiber types including Nufen 405HP, Nufen 460HP, Nufen 630HP, Nufen 780HP, Corning Hi1060, and Corning Smf-28e, depending on the model.

Got more questions? Use the inquiry form to ask the supplier directly.
