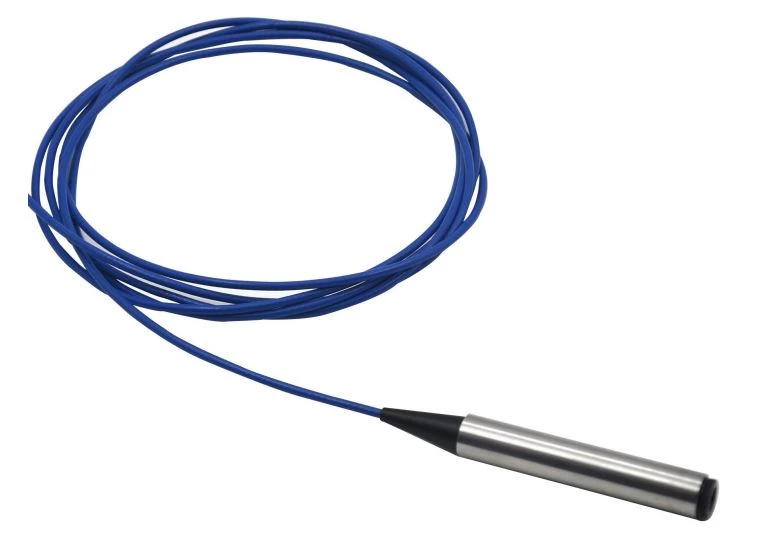

DK Photonics 1080 nm Large-Beam Fiber Collimator

Description

1080nm Large Beam Fiber Collimator – High Power Component Series

The 1080nm Large Beam Fiber Collimator from DK Photonics is engineered for high power applications in fiber laser and fiber amplifier systems. Designed to deliver exceptional performance, this collimator is ideal for reducing power density at the output fiber facet, thereby enhancing system reliability and longevity. Its robust construction and advanced optical design make it a preferred choice for demanding environments where high optical power and precision are paramount.

This collimator stands out in the market for its low insertion loss and high power handling capabilities, ensuring minimal signal degradation even at elevated power levels. The device is available in both polarization-maintaining (PM) and non-PM configurations, catering to a wide range of application requirements. Customization options are available for fiber type and beam diameter, allowing seamless integration into various optical setups and enabling tailored solutions for specific project needs.

The 1080nm Large Beam Fiber Collimator is widely used in fiber lasers, fiber amplifiers, test and measurement systems, and other precision instrumentation. Its excellent temperature stability and high reliability make it suitable for both laboratory and industrial environments. The collimator’s design supports direct splicing for high power applications, further reducing potential points of failure and maximizing optical throughput.

With a focus on cost-effectiveness without compromising performance, this collimator is an excellent choice for system integrators and researchers seeking a dependable solution for high power beam delivery. Its customizable features and robust performance ensure compatibility with a broad spectrum of fiber optic systems, making it a versatile component in the photonics industry.

Specifications

Center Wavelength:	1080 nm
Bandwidth:	40 nm
Numerical Aperture:	Not Specified
Effective Focal Length (EFL):	Not Specified
Beam Diameter:	5±1, 7±1 mm
Working Distance:	1000 or Specify mm
Max. Insertion Loss (at 1000mm):	0.60 dB
Max. Optical Power (CW):	5, 10, 20, 30 W
Max. Insertion Loss (at 1000mm):	0.60 dB
Min. Return Loss:	50 dB
Fiber Type:	1060-XP, 10/125; PM980-XP; PM 10/125DC, etc.
Fiber Length (B):	1.0 m
Operation Temperature:	+ to +50 °C
Storage Temperature:	-20 to +75 °C

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Optimized for 1080nm Wavelength: Specially designed for high-performance operation at 1080nm, ideal for fiber laser and amplifier systems.
Large Beam Diameter (Customizable): Standard options include 3.0±1.0mm and 5.0±1.0mm; other diameters available upon request to suit diverse application needs.
High Power Handling Capability: Supports up to 30W optical power (standard options: 5W, 10W, 20W, 30W), making it suitable for demanding high-power applications.
Low Insertion Loss: Engineered for minimal optical loss to ensure maximum transmission efficiency.
Polarization Maintaining (PM) and Non-PM Versions Available: Choose the right configuration for your system’s polarization requirements.
Customizable Fiber Type and Length: Compatible with a wide range of fiber types (e.g., 1060-XP, custom codes) and jacket options (armored, PVC, etc.), with flexible length configurations.
High Reliability and Robust Construction: Built for long-term stability and durability in industrial environments.
Excellent Temperature Stability: Maintains consistent performance across a wide temperature range, ensuring reliability in varying conditions.
Cost-Effective Solution: Offers high performance at a competitive price point, making it suitable for both OEM and research applications.
Connector-Free Design Recommended for High Power: Direct splicing is advised for maximum power handling; connectorized versions available with adjusted specifications.
Custom Design Support: DK Photonics offers tailored solutions to meet specific customer requirements for wavelength, power, beam size, fiber type, and packaging.
Comprehensive Quality Assurance: All products undergo rigorous testing to ensure top-tier optical performance and reliability.

Applications

High Power Fiber Lasers
Ideal for coupling and collimating high-power laser beams in industrial, medical, and scientific fiber laser systems, ensuring efficient beam delivery and reduced power density at the fiber facet.
Fiber Amplifiers
Used in high-power fiber amplifier setups to collimate output beams, improve beam quality, and protect fiber ends from damage due to high optical power.
Test and Measurement Systems
Essential for laboratory and production environments requiring precise beam collimation for accurate optical testing, measurement, and alignment.
Optical Instrumentation
Integrated into advanced optical instruments for research and development, enabling high-quality beam shaping and delivery.
Material Processing
Supports applications such as laser cutting, welding, engraving, and marking by providing stable, large-diameter collimated beams for uniform energy distribution.
Medical and Biomedical Devices
Used in medical laser systems for surgery, therapy, and diagnostics, where precise and reliable beam delivery is critical.
Free Space Optical Communication
Facilitates efficient coupling between fiber and free-space optical systems, improving signal quality and transmission distance.
Sensing and LIDAR Systems
Applied in fiber-based sensing and LIDAR applications requiring high-power, collimated beams for accurate detection and measurement.
Quantum Optics and Research
Enables advanced experiments in quantum optics, atomic physics, and photonics research by providing stable, high-power collimated beams.
Laser Pump Delivery
Used for efficient delivery of pump light in solid-state and fiber laser systems, enhancing overall system performance and reliability.
