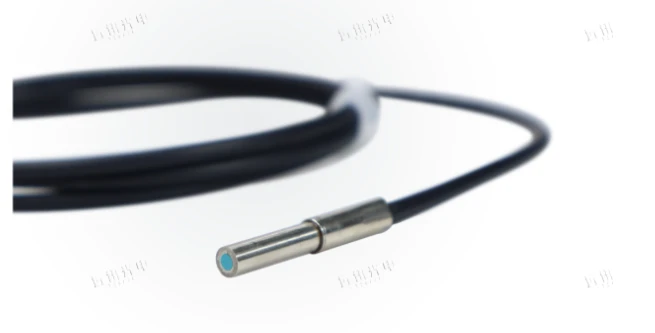

Coaxial Fiber Collimator
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
YSenser -
On FindLight:
since 2025
Description
It also known as the non-deviation angle fiber optic collimator, its core characteristic lies in the nearly perfect coincidence between the output optical axis of the collimator and the mechanical axis. This design eliminates the need for precise adjustment of the output angle of the light beam during the installation process, greatly simplifying the installation procedure. Within the working distance range, the coaxial fiber collimator can always maintain excellent collimation performance, ensuring the stable transmission of optical signals. Especially in the paired installation, this collimator can achieve rapid and precise alignment, significantly reducing the insertion loss of the optical path and effectively improving the transmission efficiency of optical signals.
Coaxial Fiber Collimator
Specifications |
|
|---|---|
| Wavelength: | 800~1300nm |
| Working Distance: | 0~80mm |
| Waist Beam: | 0.36~0.75mm |
| Deflection Angle: | ＜0.1° |
| Divergence Angle: | ＜12mrad |
| Deflection Angle: | ＜0.1° |
| Package Dia.: | 3.5mm |
| Fiber Type: | G625D, G657A1, G657A2,OM2-OM4 |
| IL For A Pair: | ≤1.5dB，≤1.2dB |
| Return Loss: | ≥50dB |
Features
- Both single-mode and multi-mode optical fibers can be fabricated
- It supports flexible configuration without the need for in-depth calibration
- The core optical components of the optical fiber rotary joint
- The radiation-resistant coaxial collimator can be customized.
- Connector Options: FC/APC, FC/PC, LC, ST, SMA905
Applications
- Fiber bundle connectors
- Opto-electric rotary Jumper
- Fiber rotation platforms
- Intelligent robots
- Opto-electric current transformers with plug-and-play optical axis alignment
