Description

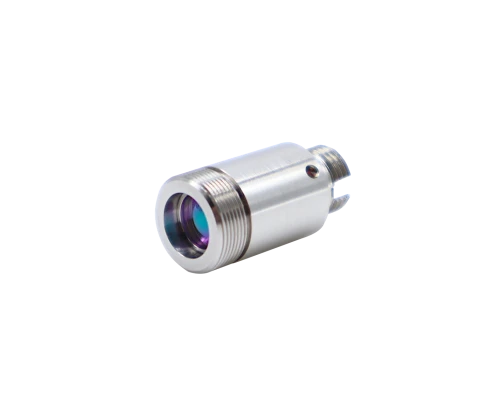

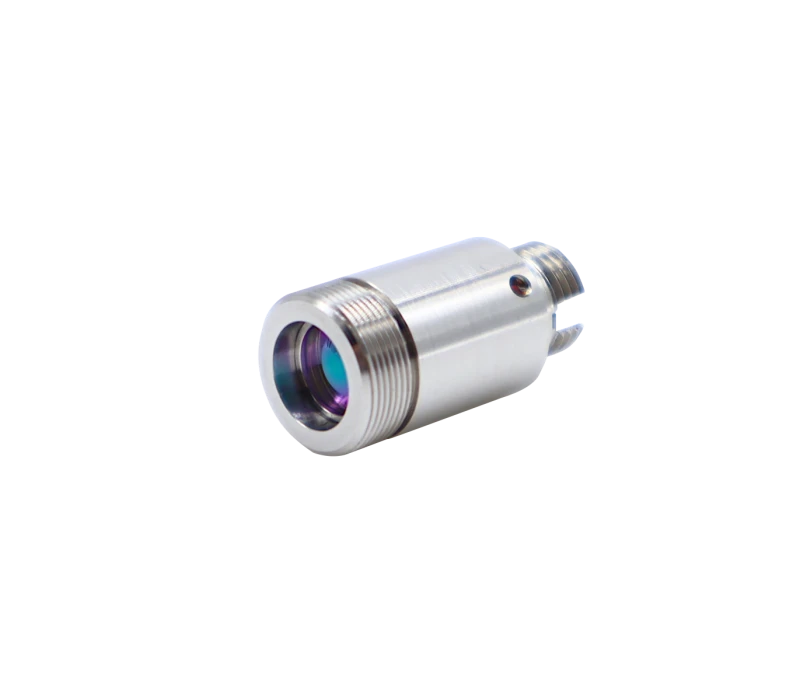

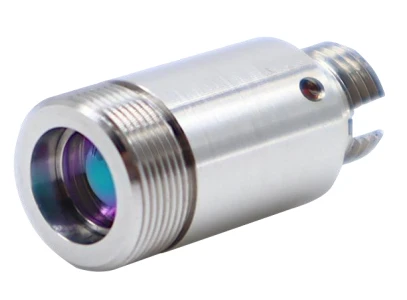

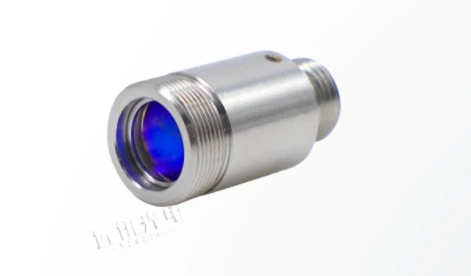

Achromatic Collimators FC/PC Connector 405nm-1650nm
This achromatic collimator series consists of a group of long focal length collimating optical systems with chromatic aberration and distortion compensation design, making the focal length of the collimator insensitive to wavelength bandwidth. The divergent light beam emitted from the optical fiber, providing a good collimating effect and beam shape within a certain distance range. The op- tical surfaces of the lens group are coated with anti-reflection film to minimize surface reflection. The relative position of the lens and fiber is precisely adjusted to ensure that the deviation angle of the emitted light is within 0.3°,and standardized manufacturing processes ensure stable consistency of the product.
Achromatic Collimators FC/PC Connector 405nm-1650nm
Specifications
| Center Wavelength: | 635 nm |
|---|---|
| Bandwidth: | 60 nm |
| Numerical Aperture: | 0.58 |
| Effective Focal Length (EFL): | 4.2 mm |
| Wavelength Options (model Dependent): | 400 - 1700 nm |
| Bandwidth (model Dependent): | ±10 nm |
| Beam Waist (model Dependent): | 0.87 - 3.95 mm |
| Divergence Angle (model Dependent): | 0.014+0.01°~0.062+0.01° |
| EFL (model Dependent): | 4.06 - 20.12 mm |

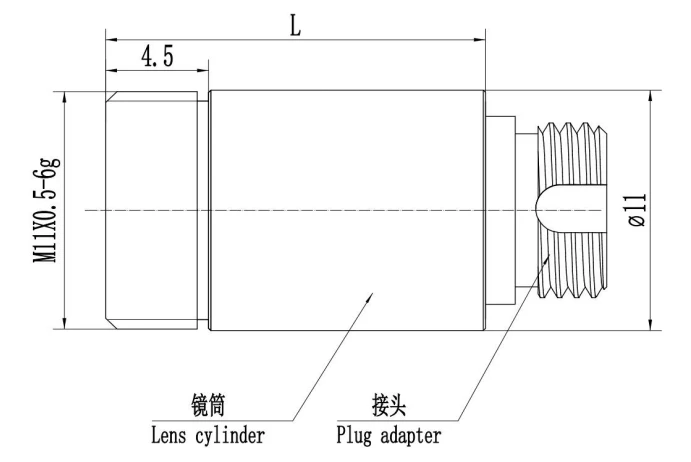

| Package Dia.: | φ11mm |
| Fiber Type: | 405HP, 460HP, 630HP, 780HP |
| Max. Power: | 2W/mm^2 @ Beam Size |
| Transmittance: | ＞95% |
| Manufacturer Part Number (MPN): | YSX-XXX-XXX-FC/PC |
| FindLight SKU: | FL-23486 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Three Connector Options: FC/PC, FCAPC, SMA905
- Compatible with Narrow and Wide Key Connectors
- Compact structure
- Convenient for installation
- The focal length has little influence on the wavelength, thus facilitating the handling of adjacent wave- lengths
- It is recommended to use it together with YSenser's standard patch cords to achieve better interchange- ability and repeatability
Applications
- Fiber Optic Collimation Systems: Ideal for converting divergent light from fiber optics into collimated beams with minimal aberration
- Laser Diode Beam Shaping: Useful in shaping and directing beams from laser diodes, particularly where Gaussian profiles are desired
- Optical Sensing and Detection: Enhances precision in sensing applications that require tightly controlled beam direction and low divergence
- Spectroscopy and Analytical Instruments: Supports accurate light delivery and collection in instruments used for material analysis and spectral diagnostics
- Optical Communication Systems: Suitable for coupling and transmitting optical signals in high-performance communication networks
- Biomedical and Life Sciences Equipment: Utilized in systems that require stable and well-aligned optical output, such as in microscopy or diagnostic devices
Export & Trade Information
| ECCN: | EAR99 |
|---|---|
| HTS Code: | 9002.90.9500 |
| Estimated US Tariff: | 25% |
