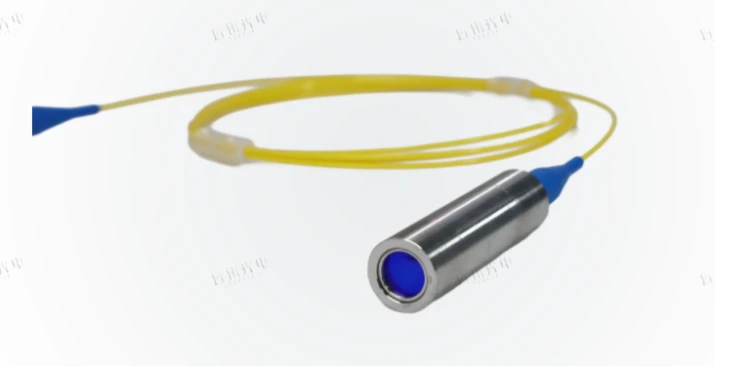

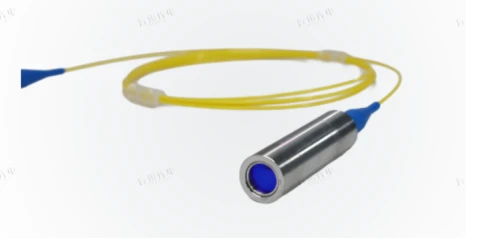

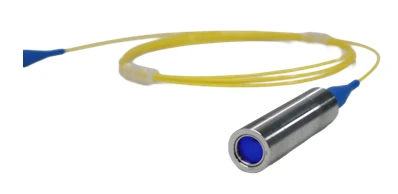

Aspheric Lens Collimator with Fiber
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
YSenser -
On FindLight:
since 2025
Description
It adopts a compact structural design. The pigtail fiber with an inclination angle and the aspherical lens are precisely adjusted, ensuring that the emitted light presents a high-quality Gaussian beam and has excellent collimation characteristics at the same time. Anti-reflection films are coated on both the surfaces of the lens and the optical fiber, which greatly reduces the reflected light at the light-emitting end face and significantly decreases the optical noise in the optical path, making the light transmission process more stable.

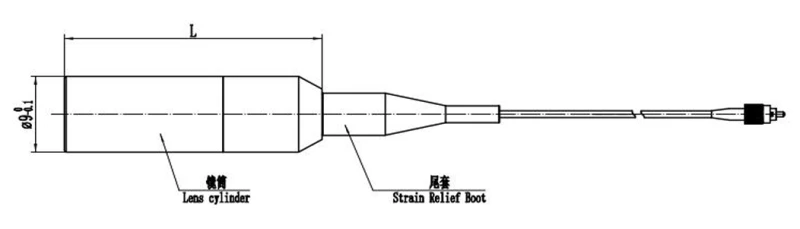

The long-focal-length collimator is designed with a bent-shaped housing, which can effectively correct the light-emitting deflection angle caused by the angled pigtail fiber, ensuring that the light beam is collimated and emitted with almost no deviation. For the short-focal-length collimator, the deflection angle caused by the light output of the angled pigtail fiber is extremely small and can be almost ignored. Therefore, a straight-through housing is used. In this way, while meeting the performance requirements, it also takes into account the structural stability and reliability.

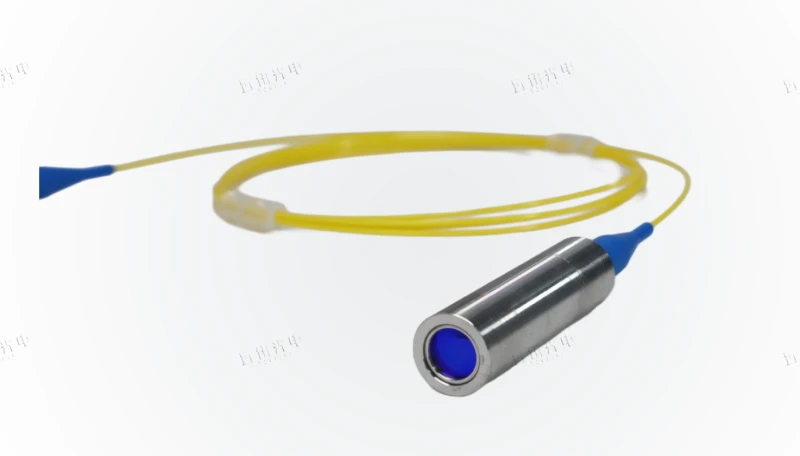

Aspheric Lens Collimator with Fiber
Specifications |
|
|---|---|
| Wavelength: | 400~1600nm |
| Bandwidth: | ±5nm |
| Waist Beam Size: | 0.82~4.0mm |
| Divergence Angle: | 0.015°+0.01°~0.11°+0.01° |
| EFL: | 4.45~18.75mm |
| Pakage Dia.: | φ9mm |
| Fiber Type: | 405HP, 460HP, 630HP, 780HP, Hi1060, G652D, G657A1, G657A2 |
| Max. Power: | 1W |
| Transmittance: | ＞90% |
Features
- The deflection angle of the emitted light and the deviation of the emitted light center are both minuscule
Fiber Type Options: 405HP/460HP/630HP/780HP/Hi1060/G625D
Connector Options: FC/PC, FC/APC, LC, SC, SMA905
- The Type of Cable Options: PVC 0.9mm / 2.0mm / 3mm, 3mm armored cable, 3mm stainless steel, 0.9mm Teflon
- The packaging material is 304 stainless steel, and the structure is compact and reliable
- It can be customized with a packaging structure for applications in a non-magnetic and vacuum environment
Applications
Fiber Optic Collimation Systems: Ideal for converting divergent light from fiber optics into collimated beams with minimal aberration
Laser Diode Beam Shaping: Useful in shaping and directing beams from laser diodes, particularly where Gaussian profiles are desired
Optical Sensing and Detection: Enhances precision in sensing applications that require tightly controlled beam direction and low divergence
Spectroscopy and Analytical Instruments: Supports accurate light delivery and collection in instruments used for material analysis and spectral diagnostics
Optical Communication Systems: Suitable for coupling and transmitting optical signals in high-performance communication networks
Biomedical and Life Sciences Equipment: Utilized in systems that require stable and well-aligned optical output, such as in microscopy or diagnostic devices
