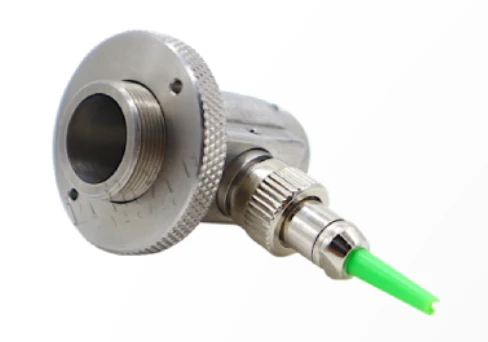

Broadband Fiber Collimator
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
YSenser -
On FindLight:
since 2025
Description
Using a 90°off-axis parabolic mirror, the focal length of this mirror remains constant over a wide wavelength range. Therefore, it is the ideal choice for collimating wide spectral wavelength light when precise focal adjustment is required, serving as a collimated multi-color light source or coupling device. A silver coating is applied to the lens surface to enhance the output efficiency within the wavelength range of450 nm to 20 um. This collimator can be equipped with FC/PC,FC/APC, or Sma905 connectors.
Broadband Fiber Collimator
Specifications |
|
|---|---|
| Wavelength: | 450nm~20um |
| AR Coating: | Silver film/ Aluminum film |
| Reflectance: | ＞90% |
| Export Beam Diameter: | 2~12mm |
| Numerical Aperture: | 0.4、 0.36、0.167、0.216 |
| Aperture: | φ7.6mm， φ11mm，φ16.5mm，φ23.5mm |
| Connectors: | FC/PC FC/APC Sma905 |
| Working Temperature: | -10~70℃ |
Features
- Surface coated with silver film (450 nm - 20 μm), gold film (450 nm - 20 μm), or aluminum film (250 - 450 nm) with high reflectivity
- Standard interface design for easy installation and use
Applications
Applicable in spectral analysis, fluorescence analysis, gas telemetry, water quality analysis, food safety, and medical analysis instruments
