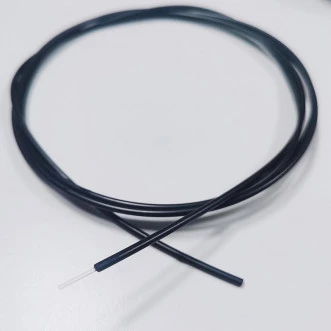

UL VW-1 Anti-flaming Simplex and Duplex POF Cable for Data Transmission
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Jiangsu TX Plastic Optical Fibers Co.,Ltd -
On FindLight:
since 2022
Description
Introducing the TX-CC1000-1AV from Jiangsu TX Plastic Optical Fibers Co., Ltd, a high-performance single-mode cable designed to meet the rigorous demands of modern communication and industrial applications. This product is engineered with precision and crafted using top-quality materials to ensure optimal performance and reliability. Located in the Economic Development Area of Yangzhou, Jiangsu, China, Jiangsu TX Plastic Optical Fibers Co., Ltd is renowned for its commitment to innovation and excellence in the field of optical fiber technology.
The TX-CC1000-1AV features a core made from PMMA and a jacket constructed from TPU, providing a robust and durable structure. The step index optical configuration and a core refractive index of 1.49 ensure efficient light transmission with minimal loss. With a numerical aperture of 0.5±0.15, this cable is designed to deliver superior performance in various environmental conditions. Its minimum bend radius of 25 mm allows for flexible installation without compromising the integrity of the cable.
This product is not only designed for high performance but also adheres to stringent environmental standards. It is UL environmental protection flame-retardant, ensuring safety and compliance with international regulations. The TX-CC1000-1AV is tested under a temperature of 25℃, with a recommended storage temperature ranging from -55℃ to +85℃, making it suitable for a wide range of applications and environments.
Jiangsu TX Plastic Optical Fibers Co., Ltd is dedicated to providing cutting-edge solutions for network communication, industrial communication, and control systems. The TX-CC1000-1AV is an embodiment of this dedication, offering a reliable and efficient solution for various applications, including sensing, mutual inductors, high and low voltage frequency converters, electric control cabinets, and consumer electronics. For more information, please contact Sara Shi at yll@txpof.com or call 0514-85165888.
UL VW-1 Anti-flaming Simplex and Duplex POF Cable for Data Transmission
Specifications |
|
|---|---|
| Core Diameter: | 980 um |
| Wavelength Range: | 530 – 650 um |
| Fiber Core Material: | Plastic |
| Cable Length: | 500 m |
| Inner Fiber Material: | PMMA |
| Inner Fiber OD: | 1.0MM |
| Outer Jacket Diameter: | 2.2 mm |
| Outer Jacket Material: | UL-VW-1 Fluorinated Polymer |
| Application: | Communication,industrial control,sensors,fault indicator |
| Numerical Aperture:: | 0.5 |
| Transmission Loss(at 650nm): | ≤180 dB/km |
| Storage Temperature: | -55~ +70℃ |
Features
- High Performance Single Mode Cable: The TX-CC1000-1AV is designed for superior performance with low loss, making it ideal for various communication applications.
- Environmental Protection: This cable is UL environmental protection flame-retardant, ensuring safety and compliance with international standards.
- Core Material: Made from PMMA (Polymethyl Methacrylate) for optimal optical performance.
- Jacket Material: Constructed with TPU (Thermoplastic Polyurethane) for durability and flexibility.
- Optical Configuration: Features a Step Index design with a core refractive index of 1.49.
- Numerical Aperture: 0.5 ± 0.15, providing efficient light transmission.
- Minimum Bend Radius: 25 mm, allowing for flexible installations without compromising performance.
- Core and Cladding Diameter: Core diameter of 980 ± 60 μm and cladding diameter of 1000 ± 60 μm.
- Outer Jacket Diameter: 2.20 ± 0.07 mm, ensuring a compact and robust design.
- Transmission Loss: ≤180 dB/km at 650 nm, ensuring minimal signal loss over long distances.
- Flame-retardant Performance: Rated VW-1 UL758(E356012), meeting stringent safety standards.
- Standards Compliance: Conforms to UL758, ROHS, REACH, SGS, YD/T1258.6-2006, YD/T1447—2006, GB/T12357.4-2004.
- Wide Range of Applications: Suitable for network communication, industrial communication, industrial control, sensing, mutual inductor, high and low voltage frequency converter, electric control cabinet, and consumer electronics.
- Recommended Storage Temperature: -55°C to +85°C, ensuring stability in various environments.
Applications
- Network Communication: Ideal for transmitting signals reliably in data and telecommunication networks.
- Industrial Communication & Control: Supports automation systems, sensors, and controllers with stable performance.
- Sensing & Measurement Systems: Provides accurate signal propagation for optical sensors and monitoring devices.
- Electric Control Cabinets: Suitable for wiring and signal routing in industrial and commercial control panels.
- High & Low Voltage Frequency Converters: Ensures reliable optical transmission in power conversion systems.
- Consumer Electronics Integration: Compatible with devices requiring compact, flexible optical cabling.
- Mutual Inductor Installations: Enables precise optical signal delivery in inductive components and systems.
Frequently Asked Questions
The characteristics of the UL VW-1 plastic fiber optical cable include light weight, good toughness, strong earthquake resistance and crack resistance, durability, and reliability.
The UL VW-1 plastic fiber optical cable can be applied in high-fast data transmission, FTTH, intelligent networks for home and office, automobiles, industry control and monitor systems, and military communication.
The specifications of the UL VW-1 plastic fiber optical cable include core material PMMA, jacket material TPU, core refractive index of 1.49, step index optical configuration, numerical aperture of 0.5±0.15, and a minimum bend radius of 25mm.
The UL VW-1 plastic fiber optical cable has a transmission loss of ≤180 dB/km at 650nm wavelength.
Yes, the UL VW-1 plastic fiber optical cable has a flame-retardant rating of VW-1 according to the UL758 standard.
