Description

art photonics offers FlexiRay® Fiber Cables designed specifically for a wide Mid-Infrared spectral range spanning from 3 to 17 μm. These fiber cables utilize Polycrystalline InfraRed (PIR) fibers and find applications in various fields, including Mid-IR light delivery, spectroscopy, remote temperature sensing, and more.

The PIR-fiber cables are available in different standard fiber diameters and can be equipped with various connectors such as SMA-905, FC/PC, and FC/APC. Additionally, they are offered with different types of protective sheathing to suit specific requirements.

At Art Photonics, we employ advanced manufacturing technologies to ensure precise positioning of the fibers inside the connector ferrule, as well as a flawless surface quality of the fiber end. Each fiber cable undergoes a meticulous Quality Control procedure before being shipped to our customers, ensuring the highest standards of performance and reliability.

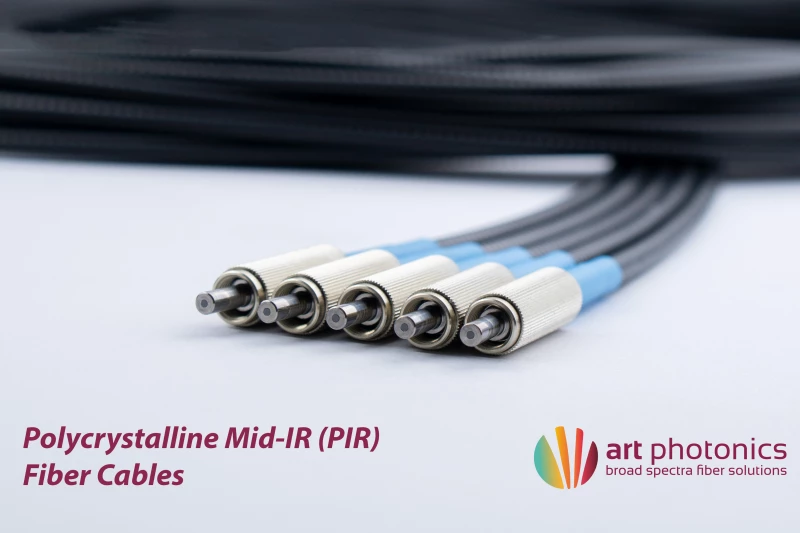

FlexiRay Polycrystalline IR-Fiber Cables PIR-630/700

Visit the Art photonics GmbH Store

Specifications

Core Diameter: 630 um

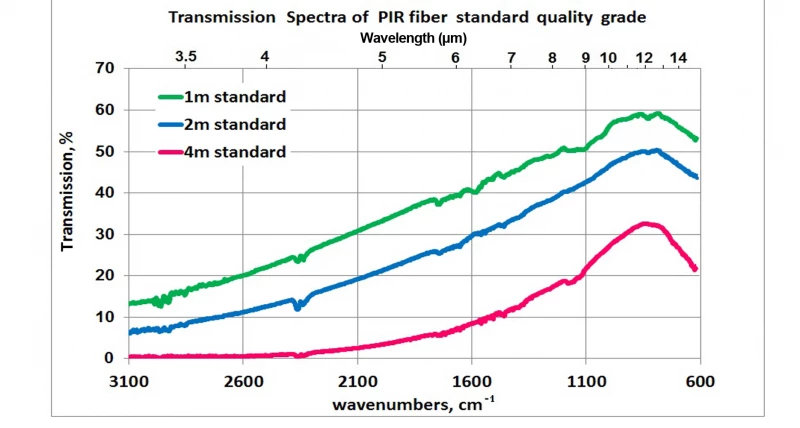

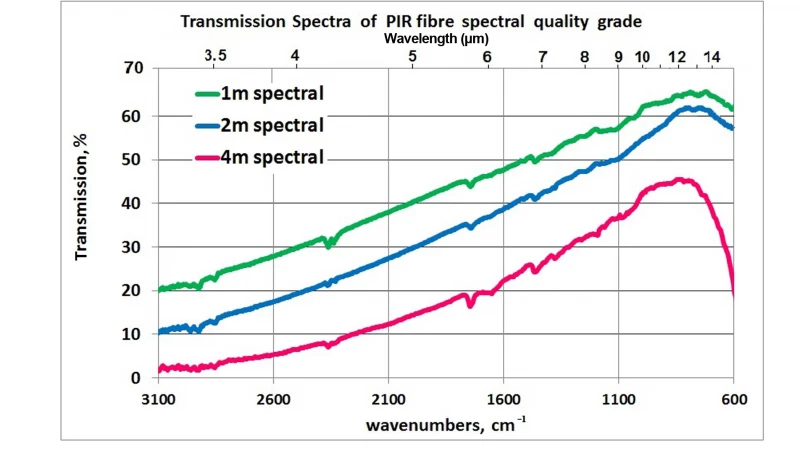

Wavelength Range: 3 – 18 um

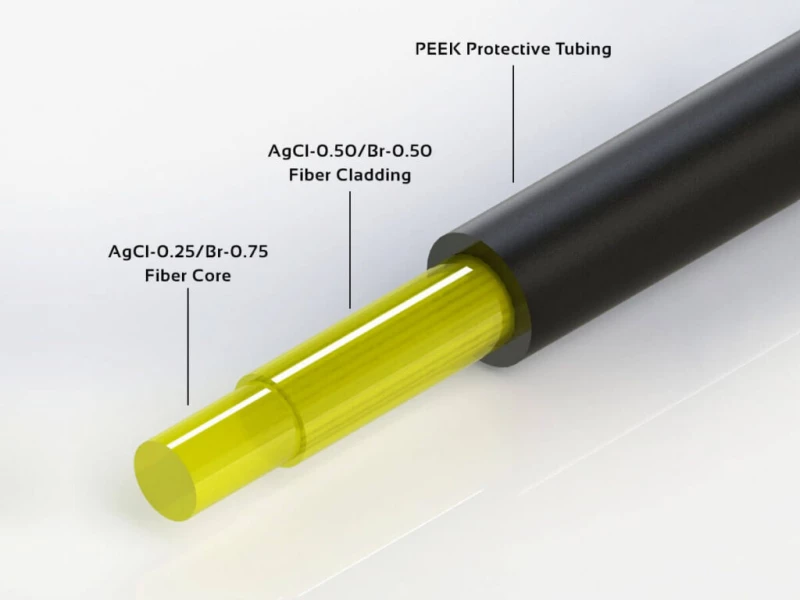

Fiber Core Material: AgCl (0.25) Br (0.75)
Cable Length: 0 m
Cladding Diameter: 700 um
Cladding Material: AgCl (0.50) / Br (0.50)
Protective Tubing: PEEK
Core Refractive Index: 2.15
Effective NA: 0.30±0.03
Operating Temperature, °C: -270 < T < 150
Maximum Transmitted Power, W: 50 (CW)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Optical Fiber Type: Polycrystalline Step Index Multimode
  • Wavelengths Range: 3 - 17 µm
  • Fiber Core/Cladding Sizes (μm): See standard fiber parameters
  • Effective Numerical Aperture (NA): 0.30 ± 0.03
  • Minimum Bending Radius (depending on protective sheathing):
    • PEEK tubing: 130mm
    • Metal PVC coated tubing: 80mm
    • Stainless steel tubing: 80mm
    • Stainless steel silicone coated tubing: 130mm
  • Connectors: SMA-905, FC-PC, or FC-APC with Titanium ferrule
  • Temperature Range: -50°C to +80°C
    • For high- or cryogenic temperature applications, please send a custom inquiry. The temperature range for cables may differ from that of fibers.
  • Length: ≤ 15m (depending on fiber diameter)

Applications

Thanks to outstanding performance parameters, FlexiRay Polycrystalline IR-Fiber Cables PIR-630/700 have found numerous applications in mid-IR spectral range, including:
  • Mid-IR spectroscopy
  • Flexible IR pyrometry
  • Flexible IR-Imaging systems
  • Power delivery for Quantum Cascade Lasers
  • Power delivery for CO- and CO2-Lasers

Frequently Asked Questions

What is the core and cladding diameter of the FlexiRay Polycrystalline IR-Fiber Cables PIR-630/700?
The core diameter is 630 um and the cladding diameter is 700 um.
What is the spectral range of the PIR-fibers?
The PIR-fibers are transparent across a broad spectral range of 4 -18 μm.
What is the temperature range that the PIR-fibers can operate in?
The PIR-fibers can operate over the wide temperature range from 4K to 420K.
What is the maximum power delivery capacity of the FlexiRay Polycrystalline IR-Fiber Cables PIR-630/700?
The cables are ideal for CO and CO2-laser power delivery up to 50W.
What are some of the applications of the FlexiRay Polycrystalline IR-Fiber Cables PIR-630/700?
The cables have found numerous applications in mid-IR spectral range, including spectroscopy probes for gases and liquids, flexible radiometry, flexible IR-imaging systems, and power delivery for CO and CO2-lasers.

Got more questions? Use the inquiry form to ask the supplier directly.
