Fiber Bundles

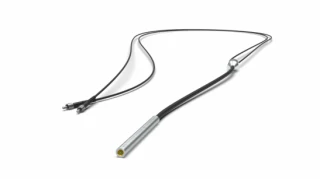

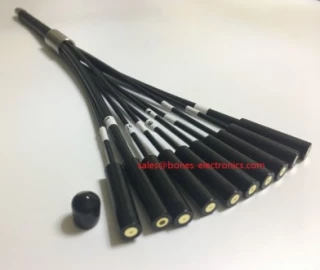

BIC produces standard and customized fiber optic bundles are made from UV and IR-Field silica,plastic or optical glasses with different refractive indicts as appropriate to the requirement for the optically conductive material,which is ground and polished with stainless steel end fittings. The individual fibers are generally between ...

Specifications

Number Of Fibers: 152
Wavelength Range: 200 – 1100 um
Length Of Bundle: 0.32 m
Numerical Aperture: 0.22
Core Diameter: 192 um
art photonics design and manufactures various types of FlexiRay® fiber bundles and fiber convertors for a broad spectral range from 0.2 to 18µm. FlexiRay® bundles are designed to match customer application with different fiber types, diameters and using polymer or metal jackets.

Specifications

Number Of Fibers: 1
Wavelength Range: 4 – 18 um
Length Of Bundle: 5 m
art photonics design and manufactures various types of FlexiRay® fiber bundles and fiber convertors for a broad spectral range from 0.2 to 18µm. FlexiRay® bundles are designed to match customer application with different fiber types, diameters and using polymer or metal jackets.

Specifications

Number Of Fibers: 1
Wavelength Range: 1.5 – 6 um
Length Of Bundle: 5 m
Berlin, Germany based art photonics GmbH designs and manufactures various types of FlexiRay® fiber bundles and fiber converters for a broad spectral range from 0.2 to 18µm.    Our FlexiRay® bundles are designed to match customer application with different fiber types, diameters and using polymer or metal ...

Specifications

Number Of Fibers: 1
Wavelength Range: 180 – 2500 um
Length Of Bundle: 0.1 m
The Fiber Bundles & Converters from art photonics are part of the FlexiRay® product line, offering a wide range of fiber bundles and fiber converters designed to meet customer requirements. These bundles and converters are available in a broad spectral range from 0.2 to 17 µm and can be customized with different fiber ...

Specifications

Number Of Fibers: 1
Wavelength Range: 0.18 – 18 um
Length Of Bundle: 0.5 m
Fiber Types: Silica, CIR (Chalcogenide InfraRed), PIR (Polycrystalline InfraRed)
Jacket Materials: Polymer, Metal
art photonics GmbH development of specialty fibers for the Mid-IR region has resulted in a unique product – Chalcogenide Infra-Red (CIR-) fibers. Chalcogenide glasses (As₂ S₃) transmit IR-radiation in the spectral range of 1.1 – 6μm.  Our CIR fibers are drawn in core/clad structure with double polymer coating and ...

Specifications

Number Of Fibers: 37
Wavelength Range: 1.1 – 6 um
Length Of Bundle: 5 m
Core/Clad Fiber Diameter: 250/300; 350/400; 500/550 μm
Types Of Protective Jackets: PVC, PC + Nylon, Rigid Metal Housing
Introducing our Coherent Multi-Channel Fiber Optic Bundles for Remote Spectroscopy, designed to offer superior performance in photometric processes and a wide range of spectrometry applications. These high-performance bundles are crafted to deliver exceptional optical throughput at key wavelengths, making them ideal for both ...

Specifications

Number Of Fibers: 469
Wavelength Range: 0.25 – 2.2 um
Length Of Bundle: 15 m
Types Of Protective Jackets: PVC, PC + Nylon, Rigid Metal Housing
Core Fiber Diameter: 100/110, 200/220, 300/330, 400/440, 600/660 µm
IDIL Fibres Optiques proposes a wide range of tailor-made optical bundles, namely assemblies of multiple optical fibers.  In accordance with customer’s requirements: fiber types, materials and diameters, quantities (from small batch to several hundred), connectors types, customized ferrules, wavelength, numerical ...

Specifications

Number Of Fibers: 1
Wavelength Range: 0.2 – 5.5 um
Length Of Bundle: 0.1 m
Numerical Apertures: From 0.10 to 0.66
Dimensions: According the the type and number of fibers

Frequently Asked Questions

An optical fiber bundle is a collection of multiple thin optical fibers that are bundled together to transmit light signals for illumination, visualization or other applications.

Fiber bundles are comprised of glass or plastic optical fibers, an adhesive (typically UV acrylics) that keeps the fibers glued together, and a jacket or housing that protects the bundle from the surrounding environment.

Fiber bundles are widely used in medical imaging, notably in endoscopes. Unlike single fibers, fiber bundles can transmit images and are thus great for imaging objects. They are also commonly used in optical communication networks as dividers and splitters that split the source into different channels. In fact, all submarine or cross-continental communication is supported by fiber bundles. They can also be found in laser machining applications as they can handle large power levels.

Optical fiber bundles are often classified as coherent or incoherent. When the fibers at both ends of the fiber follow the same ordering, the bundle is called coherent or ordered. Otherwise, they are referred to as incoherent or unordered.

The difference in spatial ordering of the single fibers in fiber bundles makes them suitable for different applications. Coherent or ordered fiber bundles are able to image an object while incoherent or unordered fiber bundles can only transmit light without preserving an image. In other words, they are used for illumination only.

Fiber bundles are known for being able to transmit wavelengths ranging from the UV to the IR.

While both copper cables and optical fiber cable bundle can transfer data, optical fiber bundles are more advantageous. Optical fiber bundles can transmit larger bandwidth data over much larger distances and with minimal loss. Moreover, unlike copper cables, they do not suffer from electromagnetic interference which leads to the modification or the loss of the signal.

The cross-section of fiber bundles is typically hexagonal as it is the best way to increase the packaging density and pack more fiber together within the same radius. This arrangement can also reduce cross-talk between the individual fibers which is defined as the power oscillating back and forth between the fibers.

Fiber Optic Bundles: Multiplexed Light Delivery and Collection for Advanced Optical Systems

Fiber optic bundles, also known as fiber bundles or fiber optic arrays, are essential components in systems that require simultaneous transmission of light through multiple optical paths. Used extensively in medical devices, spectroscopy, imaging systems, and industrial sensing, fiber bundles offer unmatched flexibility and performance for complex optical setups. At FindLight, we feature a broad range of fiber bundles from leading manufacturers worldwide, ready to meet your project’s optical demands.

What Are Fiber Optic Bundles?

A fiber optic bundle consists of multiple optical fibers grouped together within a common sheath or housing. These fibers may be arranged in linear, circular, square, or custom geometries depending on the application. Bundles can be made with single-mode, multi-mode, or a mix of fibers, and can also incorporate specialty fibers like polarization-maintaining or photonic crystal fibers.

Fiber bundles enable light to be collected from or delivered to multiple points simultaneously, allowing for efficient signal routing, spatial sampling, or illumination across various zones.

Key Features and Benefits

  1. Multi-Point Illumination and Collection: Fiber bundles are ideal for applications requiring light collection from or delivery to multiple points, such as endoscopy or distributed sensing.

  2. Customizable Geometries: Bundles can be configured in custom shapes (e.g., round-to-line, fan-out, hexagonal) to match specific imaging or sampling requirements.

  3. Improved Signal Throughput: By combining the outputs of multiple fibers, bundles increase the total optical throughput, improving signal quality in low-light environments.

  4. Broad Wavelength Compatibility: Fiber bundles can be constructed using materials optimized for UV, visible, NIR, or IR ranges to suit your spectral application.

  5. Ruggedized Options: Many fiber bundles are available with armored jackets or heat-resistant sheathing for use in harsh or high-temperature environments.

Common Applications

Fiber bundles are widely used in:

  • Medical imaging and endoscopy

  • Flame and plasma spectroscopy

  • Multichannel fluorescence detection

  • Industrial and process monitoring

  • Remote sensing and fiber-delivered illumination

  • Laser beam delivery and splitting

Whether you need to sample light from several points simultaneously or deliver uniform illumination across a surface, fiber bundles provide the required scalability and precision.

Selecting the Right Fiber Bundle

When choosing a fiber optic bundle, consider the following parameters:

  • Fiber Type: Multi-mode for high light throughput or single-mode for precise signal transmission.

  • Bundle Geometry: Choose round-to-round, line-to-round, fan-out, or custom shapes based on your optical configuration.

  • Core Size and NA: Match the fiber’s numerical aperture (NA) and core size to your source and detector.

  • Connector Type: Available with standard FC, SMA, ST, or custom ferrule connectors.

  • Jacket Type: PVC, metal armored, or high-temperature sheathing depending on your application environment.

FindLight lets you compare fiber bundle options from multiple vendors to find the one that meets your technical and budgetary needs.

Explore Fiber Bundles on FindLight

FindLight is your go-to source for high-performance fiber optic bundles, connecting you with top global manufacturers and custom solution providers. Whether for lab use or industrial deployment, you’ll find the right bundle configuration to support your application.

Did You know?

Optical fiber bundles are collections of optical fibers that are tightly packed together to form a larger, flexible bundle. These bundles are commonly used in medical and industrial applications for transmitting light, allowing for visualization or illumination in tight spaces. Fiber bundles are also considered the backbone of submarine communications, the network that connects the different continents to each other. The individual fibers that make up the bundle are made of a core of glass or plastic surrounded by a cladding material, which helps to reflect the light back into the core. They are then coated with a protective layer to prevent damage. The fibers are then bundled together and wrapped with an additional protective layer to provide flexibility and durability. Optical fiber bundles have a wide range of applications, including endoscopy, microscopy, and industrial inspection. They are particularly useful in medical procedures, where they allow doctors to visualize and perform procedures inside the body without making large incisions. In microscopy, they allow for high-resolution imaging of small structures and particles, while in industrial inspection they can be used to inspect the inside of machinery and other difficult-to-reach areas. Optical Fiber bundles can have multiple inputs or outputs thus performing as converters or splitters, or they can have one output and one input only. Fiber bundles are known for their wide spectral range that stretches from the UV domain all the way to the mid-IR. They exhibit flexibility and robustness to elevated temperatures, bending, and other external factors.
