Description

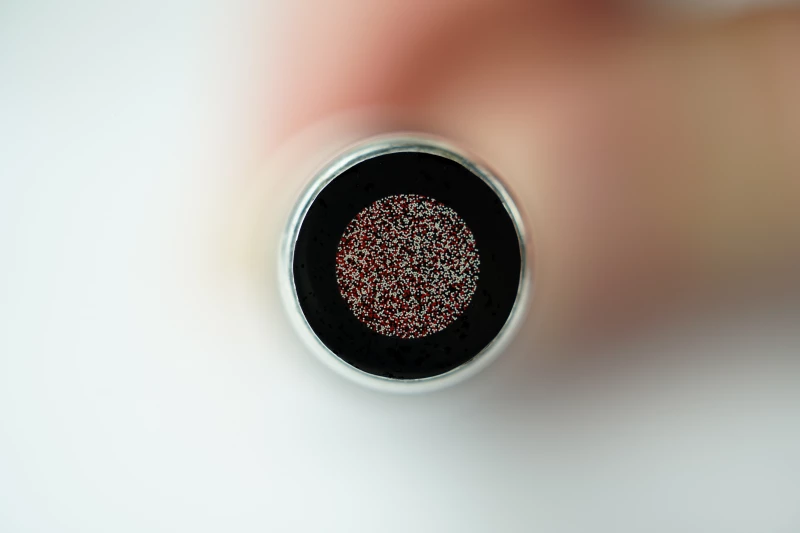

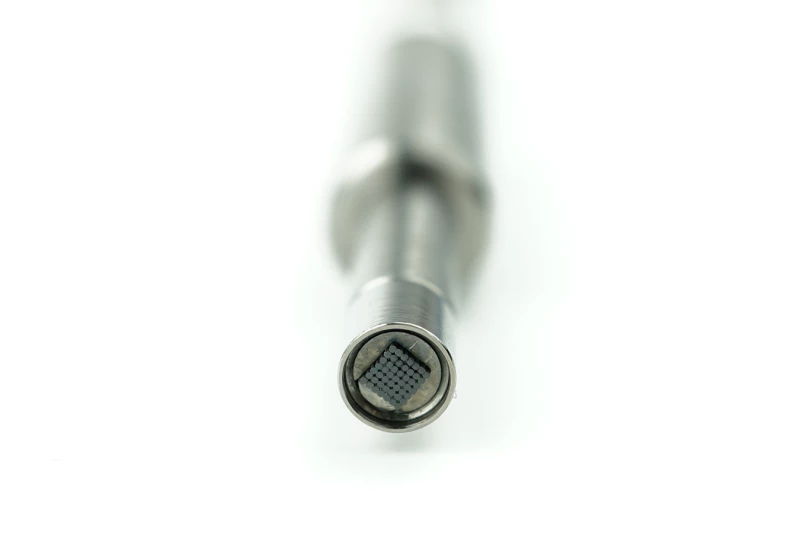

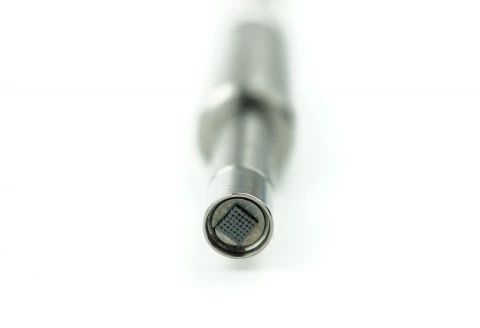

The Fiber Bundles & Converters from art photonics are part of the FlexiRay® product line, offering a wide range of fiber bundles and fiber converters designed to meet customer requirements. These bundles and converters are available in a broad spectral range from 0.2 to 17 µm and can be customized with different fiber types, diameters, and jacket materials (polymer or metal).
They find applications in spectral imaging, pyrometry, optical sensing, laser welding/soldering/marking, analytical instruments, and flexible illumination in medical diagnostic settings.
FlexiRay Fiber Bundles and Converters 0.2 µm - 17 µm
Specifications
| Number Of Fibers: | 1 |
|---|---|
| Wavelength Range: | 0.18 – 18 um |
| Length Of Bundle: | 0.5 m |
| Fiber Types: | Silica, CIR (Chalcogenide InfraRed), PIR (Polycrystalline InfraRed) |
| Jacket Materials: | Polymer, Metal |

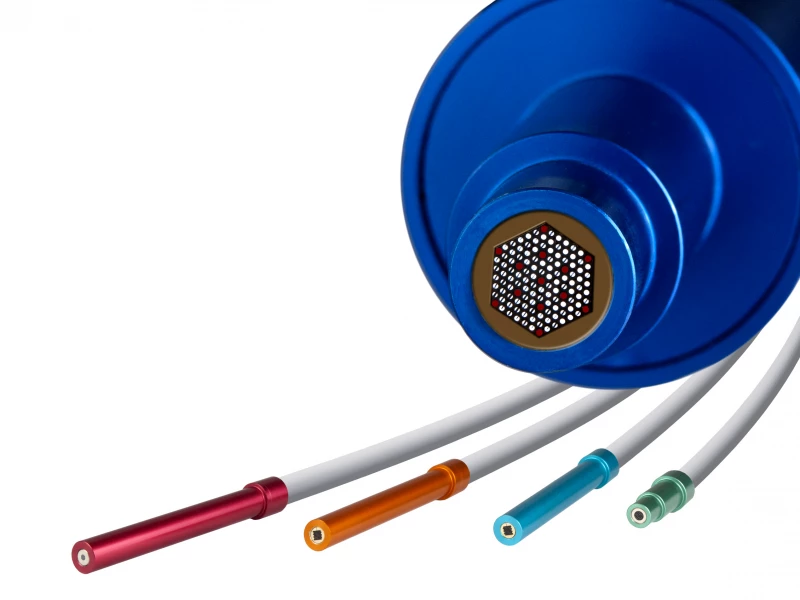

| Available Configurations: | Coherent and randomized silica fiber bundles Mixed fiber bundle consisting of UV silica, VIS-NIR silica, and CIR fibers Fiber splitters and combiners Imaging bundles assembled from PIR fibers |
Download Data Sheet
Features
- Versatile fiber bundles and converters in a broad spectral range
- Customizable options for fiber types, diameters, and jacket materials
- Enables spectral imaging, pyrometry, optical sensing, laser applications, and more
- Coherent and randomized silica fiber bundles available
- Fiber splitters for splitting light into multiple channels
- Fiber combiners for combining light from multiple sources
- Reshaping of light beam cross-section for specific applications
Applications
- Spectral imaging
- Pyrometry
- Optical sensing
- Laser welding/soldering/marking
- Analytical instruments
- Flexible illumination in medical diagnostic settings
Frequently Asked Questions
What is the spectral range of the Fiber Optic Bundles and Converters?
The spectral range of the Fiber Optic Bundles and Converters is from 0.2 to 18µm, covering UV/VIS/NIR/MIR (180 nm – 17µm).
What are the applications of the Fiber Optic Bundles and Converters?
The applications of the Fiber Optic Bundles and Converters include spectral imaging, pyrometry, optical sensing, laser welding/soldering/marking, analytical instruments, and flexible illumination in medical diagnostic.
What are the features of the Fiber Optic Bundles and Converters?
The features of the Fiber Optic Bundles and Converters include multispectral bundles from different fiber types, splitting light from the light source into several channels, combining light from the light source into several sources, and reshaping of light beam cross-section.
What is the composition of the mixed fiber bundle?
The mixed fiber bundle is composed of Silica, CIR, and PIR fibers in any combination, covering UV/VIS/NIR/MIR (180 nm - 18 µm).
What is the certification of the Fiber Optic Bundles and Converters?
The Fiber Optic Bundles and Converters are certified DIN EN ISO 9001:2008.
