Description
Berlin, Germany based art photonics GmbH designs and manufactures various types of FlexiRay® fiber bundles and fiber converters for a broad spectral range from 0.2 to 18µm.
Our FlexiRay® bundles are designed to match customer application with different fiber types, diameters and using polymer or metal jackets.
A wide variety of configurations and options ensure matching to a specific application:
- Coherent and randomized silica fiber bundles

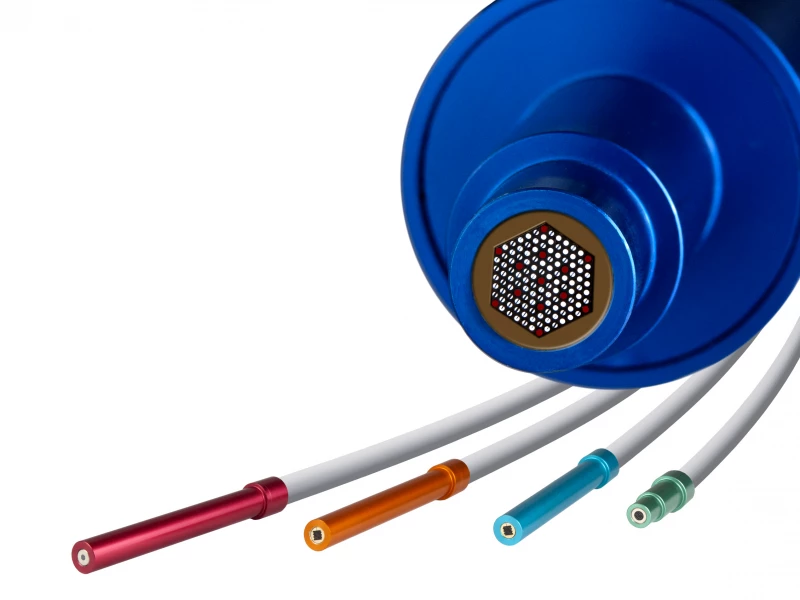

- Mixed fiber bundle consisting of UV silica, VIS-NIR silica and CIR fibers to enable remote spectroscopy in 0.2 µm to 6µm spectral range
- CIR Fiber Splitter: 1 x7

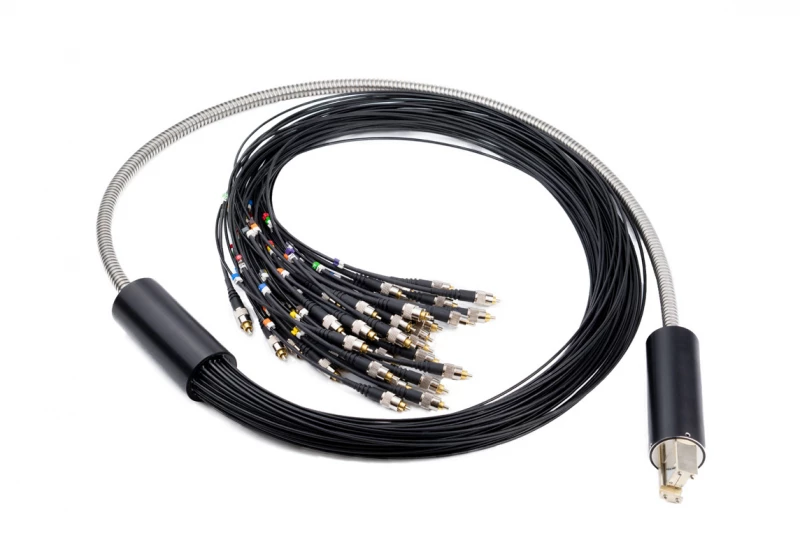

- Silica Fiber Combiner
- UV/VIS/NIR (180 - 2500 nm) -from silica fibers
- Mid Infrared (1.5 - 6.0 µm) - from CIR fibers
- Mid Infrared (4.0 - 18.µm) - from PIR fibers
- UV/VIS/NIR/MIR (180 nm - 18 µm) - mixed fiber bundle from Silica, CIR & PIR fibers in any combination
- IR-Image Converter: 7x7 PIR - 300 µm fibers grid to 1x49 Line Bundle
- Imaging bundle assembled from 9x9 PIR - 200µm fibers
Fiber Optic Bundles and Converters: Silica Fibers (UV/VIS/NIR, 180 – 2500nm)
Specifications
| Number Of Fibers: | 1 |
|---|---|
| Wavelength Range: | 180 – 2500 um |
| Length Of Bundle: | 0.1 m |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
Our fiber optic bundles and converters are available in various configurations and options:
- Multispectral bundles from different fiber types
- Splitting light from light source into several channels
- Combining light from light source into several sources
- Reshaping of light beam cross-section
Applications
art photonics GmbH supplies a variety of fiber optic bundles and converters for the UV, VIS and near IR wavelength regions. Those components are ideal for the following applications:
- Spectral Imaging
- Pyrometry
- Optical sensing
- Laser welding, laser soldering, laser marking
- Analytical instruments
- Flexible illumination in medical diagnostic
Frequently Asked Questions
What is the spectral range of the Fiber Optic Bundles and Converters?
The Fiber Optic Bundles and Converters have a broad spectral range from 0.2 to 18µm, covering UV/VIS/NIR (180 – 2500nm).
What kind of applications are the Fiber Optic Bundles and Converters suitable for?
The Fiber Optic Bundles and Converters are ideal for applications such as Spectral Imaging, Pyrometry, Optical sensing, Laser welding, laser soldering, laser marking, Analytical instruments, and Flexible illumination in medical diagnostic.
What are the different configurations and options available for the Fiber Optic Bundles and Converters?
The different configurations and options available for the Fiber Optic Bundles and Converters include multispectral bundles from different fiber types, splitting light from light source into several channels, combining light from light source into several sources, and reshaping of light beam cross-section.
What types of fiber bundles are available for the Fiber Optic Bundles and Converters?
The types of fiber bundles available for the Fiber Optic Bundles and Converters include coherent and randomized silica fiber bundles, mixed fiber bundle consisting of UV silica, VIS-NIR silica and CIR fibers to enable remote spectroscopy in 0.2 µm to 6µm spectral range, CIR Fiber Splitter: 1 x7 Silica Fiber Combiner, IR-Image Converter: 7x7 PIR - 300 µm fibers grid to 1x49 Line Bundle, and imaging bundle assembled from 9x9 PIR - 200µm fibers.
What kind of jackets are used for the Fiber Optic Bundles and Converters?
The Fiber Optic Bundles and Converters use different fiber types, diameters and can use polymer or metal jackets.
Got more questions? Use the RFQ form to ask the supplier directly.
