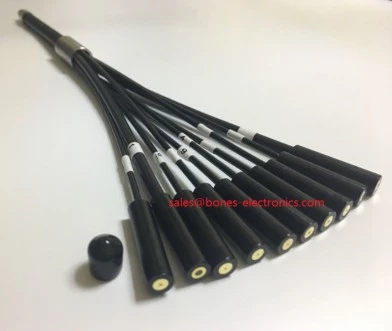

Multi-branch Fused Sillica Fiber Optic Bundles

Name: Multi-branch Fused Sillica Fiber Optic Bundles
Brand: Bones Electronics Co., Ltd
Availability: InStock

Description

BIC produces standard and customized fiber optic bundles are made from UV and IR-Field silica,plastic or optical glasses with different refractive indicts as appropriate to the requirement for the optically conductive material,which is ground and polished with stainless steel end fittings. The individual fibers are generally between 30 um and 150 um in diameter, but can be drawn to customer-specific diameters on request. The lengths of the fiber bundles vary between 4, 5, 10 and 20 m. Custom fiber optic bundles acceptable.

Please visit http://www.bones-electronics.com/html_products/Fiber-Optic-Bundle-293.html for more information about the Fiber Optic Bundles.

Specifications

Number Of Fibers:	152
Wavelength Range:	200 – 1100 um
Length Of Bundle:	0.32 m
Numerical Aperture:	0.22
Core Diameter:	192 um
Cladding Diameter:	200 um

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

•Broad transmittance range over UV to NIR wavelengths
•High grade fused silica fiber bundle offered
• Applied in Visible to Infrared waveband transmission
• Bifurcated and Trifucrated bundles available
• NA=0.22±0.02(0.1to 0.28 on request)
• CCDR:1:1.04,1:1.1,1:1.2 (1:1.06,1:1.15,1:1.25,1:1.4on request).
• Customizing for your needs

Applications

Light guide for semiconductor equipment, LD, UV light source, various analysis and measurement such as spectrum analysis and fluorescence analysis, and printing machines.

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Ships from:

China

Sold by:

Bones Electronics Co., Ltd

On FindLight:

since 2015

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the technical parameters of CBS2.75H-1-9-0.32 Silica Fiber Optical Bundle?

The technical parameters of CBS2.75H-1-9-0.32 Silica Fiber Optical Bundle are core material (SiO2), cladding material (Acrylate Coating), core diameter (192±5 μm), cladding diameter (200+5/-10 μm), buffer diameter (240±10 μm), refractive index profile (Step-Index), numerical aperture (0.22±0.02), full acceptance cone (25.4 degrees), working temperature (-65ºC to +85ºC), and working wavelength (200nm-1100nm).

What are the features of Multi-branch Fused Silica Fiber Optic Bundles?

The features of Multi-branch Fused Silica Fiber Optic Bundles are broad transmittance range over UV to NIR wavelengths, high-grade fused silica fiber bundle offered, applied in Visible to Infrared waveband transmission, bifurcated and trifurcated bundles available, NA=0.22±0.02 (0.1 to 0.28 on request), CCDR:1:1.04,1:1.1,1:1.2 (1:1.06,1:1.15,1:1.25,1:1.4 on request), and customizing for your needs.

What are the applications of Multi-branch Fused Silica Fiber Optic Bundles?

The applications of Multi-branch Fused Silica Fiber Optic Bundles are light guide for semiconductor equipment, LD, UV light source, various analysis and measurement such as spectrum analysis and fluorescence analysis, and printing machines.

What are Multi-branch Fused Silica Fiber Optic Bundles?

Multi-branch Fused Silica Fiber Optic Bundles are fiber optic bundles made from UV and IR-Field silica, plastic or optical glasses with different refractive indices as appropriate to the requirement for the optically conductive material.

What is the bundle transmission of Multi-branch Fused Silica Fiber Optic Bundles?

The bundle transmission of Multi-branch Fused Silica Fiber Optic Bundles is not specified in the product description.
