Description
art photonics GmbH development of specialty fibers for the Mid-IR region has resulted in a unique product – Chalcogenide Infra-Red (CIR-) fibers. Chalcogenide glasses (As₂ S₃) transmit IR-radiation in the spectral range of 1.1 – 6μm.
Our CIR fibers are drawn in core/clad structure with double polymer coating and characterized by low total optical losses and low absorption peaks over mentioned spectral range. High flexibility & high transmission of our chalcogenide fibers allowed producing commercial fiber bundles & convertors for Mid-IR applications.
Chalcogenide (CIR) Fiber Bundles, Convertors and Splitters
Specifications
| Number Of Fibers: | 37 |
|---|---|
| Wavelength Range: | 1.1 – 6 um |
| Length Of Bundle: | 5 m |
| Core/Clad Fiber Diameter: | 250/300; 350/400; 500/550 μm |
| Types Of Protective Jackets: | PVC, PC + Nylon, Rigid Metal Housing |
Download Data Sheet
Features
- Custom design
- Customized fiber arrangement and splitting
- Standard and customized connectors
- Mixed fiber bundles (UV,NIR,MIR) are available
Applications
- Flexible IR-imaging systems
- Remote non-contact pyrometry in the 200-600K range
- Fiber probes for remote process IR - spectroscopy
Frequently Asked Questions
What is the spectral range of the Chalcogenide Infra-Red (CIR) fibers?
The spectral range of the CIR fibers is 1.1 – 6μm.
What are the features of the CIR fiber bundles, convertors, and splitters?
The features of the CIR fiber bundles, convertors, and splitters include custom design, customized fiber arrangement and splitting, standard and customized connectors, and availability of mixed fiber bundles (UV, NIR, MIR).
What are the applications of the CIR fiber bundles, convertors, and splitters?
The applications of the CIR fiber bundles, convertors, and splitters include flexible IR-imaging systems, remote non-contact pyrometry in the 200-600K range, and fiber probes for remote process IR-spectroscopy.
What is the design of the CIR fiber bundles and convertors?

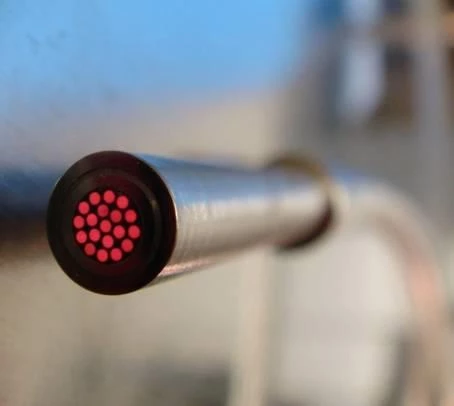

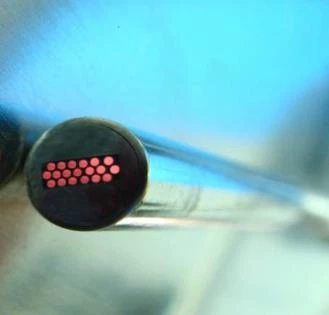

The CIR fiber bundles and convertors are designed in rectangular to circular or circular to circular configurations with core/clad fiber diameters of 250/300; 350/400; 500/550 µm and can have up to 37 fibers in hexagonal configuration.
What types of protective jackets are available for the CIR fiber bundles and convertors?
The CIR fiber bundles and convertors can have protective jackets made of PVC, PC + Nylon, or rigid metal housing.
