Polarization-Maintaining Cables

Connet PMJ-D series near infrared polarization maintaining fiber patchcords are specially designed for near infrared wavelength applications, ranging from 900nm to 1650nm. The typical working wavelength is 980nm, 1064nm, 1310nm and 1550nm. Connet PMJ-D series near infrared polarization maintaining fiber patchcords ...

Specifications

Part No.: PMJ-D-980 | PMJ-D-1064 | PMJ-D-1310 | PMJ-D-1550
Fiber Type: PM980B-XP | PM980B-XP | PM1300B-XP | PM1550B-XP
Wavelength Range: 970-1550nm | 970-1550nm | 1270-1625nm | 1440-1625nm
Return Loss: >55 dB
Core Diameter: 5.5 | 5.5 | 8.0 | 8.5 um
...
Connet PMJ-D series short wavelength polarization maintaining fiber patchcords are specially designed for short wavelength applications, ranging from 350nm to 900nm. The typical working wavelength is 405nm, 488nm, 630nm and 780nm. Connet PMJ-D series short wavelength polarization maintaining fiber Patchcords adopt PANDA type ...

Specifications

Wavelength Range: 400 to 1100 nm
Insertion Loss: <1.0 dB
Return Loss: >55 dB
Connet PMJ-LMA series polarization maintaining fiber patchcords adopt lager mode area (LMA) fiber, and specially designed for high power fiber laser and amplifier. Connet develops a wide range of lager mode area fiber patchcords in the 1µm, 1.5µm and 2µm bands for various applications. Connet PMJ-LMA ...

Specifications

Wavelength Range: 1.0, 1.5, 2.0 um
Insertion Loss (max): <0.5 dB
Return Loss (max): -65 dB
Connet PMJ-D series mid-infrared polarization maintaining fiber patchcords are specially designed for mid-infrared wavelength application, ranging from 1900nm to 2200nm. The typical working wavelength is 1908nm,1940nm, 1950nm and 2050nm. Connet PMJ-D series mid-infrared polarization maintaining fiber patchcords adopt ...

Specifications

Part No.: PMJ-D-1950
Insertion Loss: <0.5 dB
Return Loss: 55 dB
Wavelength Range: 1,850-2,200 nm
Storage Temperature: -40 to +85 ℃
...
The Polarization Maintaining Patchcord (GK-PMP Series) from GKER Photonics Co., Ltd is engineered for high-performance applications requiring superior polarization control and stability. This series is designed to deliver excellent environmental stability and minimal insertion loss while maintaining high return loss and extinction ...

Specifications

Connector Type: UPC APC -
Wavelength¹: 980, 1060, 1310, 1480, 1550 nm
Typ. Insertion Loss: 0.3 0.4 dB
Max. Insertion Loss¹: 0.5 dB
Min. Return Loss: 50 60 dB
...
The GKER Photonics Polarization Maintaining (PM) Patchcord Series is engineered to provide superior performance in critical applications requiring stable polarization and minimal signal loss. This series is characterized by its excellent environmental stability, high return loss, low insertion loss, and a high extinction ratio, ...

Specifications

Connector Type: UPC APC -
Wavelength: 1950 , 2000 nm
Typ. Insertion Loss: 0.3 0.4 dB
Max. Insertion Loss: 0.5 dB
Min. Return Loss: 50 60 dB
...
The Polarization Maintaining (PM) Patchcord series by GKER Photonics Co., Ltd is engineered to deliver exceptional environmental stability, high return loss, and low insertion loss, making it the ideal choice for critical applications. Designed for PM amplifiers, fiber lasers, and test instrumentation, these patchcords ensure precise ...

Specifications

Connector Type: UPC APC -
Wavelength: 980¹, 1060¹, 1310, 1480, 1550 nm
Typ. Insertion Loss: 0.3 0.4 dB
Max. Insertion Loss: 0.5² dB
Min. Return Loss: 50 60 dB
...
The ultra-stable polarization-maintaining single-mode fiber patch cable developed by CSRayzer is specially designed. Compared with the conventional polarization-maintaining fiber patch cable, it has the characteristics of ultra-high extinction ratio, low loss and high power, which ensures that the polarization direction of ...

Specifications

Wavelength Range: 350-2000 nm
Optical Fiber Type: PM Fiber
Typical Insertion Loss: 1/0.8/0.5 dB
Polarization Extinction Ratio (ultra-stable): 25 dB
Peak Power: 100mW/300mW/2W/5W optional
...

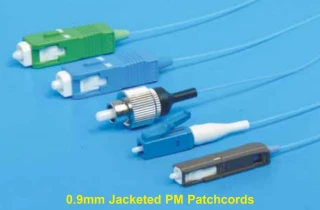

The Polarization Maintaining (PM) patchcords and connectors are designed for high-precision optical connections. They ensure the maintenance of polarization axis orientation and offer excellent repeatability, low insertion losses, and high extinction ratios. The patchcords are available in 3mm and 0.9mm jacketed versions.

Specifications

Design Wavelengths: 1550nm | 1300nm | 980nm | 850nm | 633nm | 488nm
Wavelength Range (1550nm): 1460-1625 nm
Termination: FC/PC, SC, ST, LC, or MU, E2000
Cutoff Wavelength (1550nm): <1450 nm
Fiber Type: PANDA structure standard; other types available on request
...

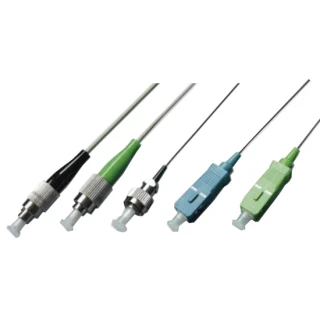

Polarization Maintaining (PM) Optical Fiber Patch Cable, sometimes called PM fiber patch cord, or PM fiber jumper, is fabricated from Panda polarization-maintaining fibers and high-quality connectors that are compatible with the industry standards. It consists of a fixed length of PM single-mode fiber ...

Specifications

Wavelength (nm): 460, 630, 780, 830, 850, 980, 1060, 1064, 1310, 1550, 2000
Connector: None, FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, LC/APC, Custom …
Extinction Ratio @23°C (dB): ≥20 (standard grade), ≥23 (medium grade), ≥28 (high grade)
Return Loss (dB): ≥50(UPC Type), ≥60(APC Type)
Fiber Type: Panda Polarization-maintaining (PM) fiber
...
Lfiber\'s Polarization Maintaining (PM) Optical Fiber Patch Cable,is fabricated from Panda polarization-maintaining fibers and high-quality connectors that are compatible with the industry standards. It consists of a fixed length of PM single-mode fiber cable with like connectors installed on both ends ...

Specifications

Wavelength : 460, 630, 780, 830, 850, 980, 1060, 1064, 1310, 1550, 2000
Connector Type: FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, LC/APC
Extinction Ratio @23 °C (dB): ≥20 (standard grade), ≥23 (medium grade), ≥28 (high grade)
Fiber Type: Polarization-maintaining (PM) Panda fibers
Polarizer Patch Cable
Go!Foton
IFPPCs are connectorized on both ends with high quality and robust FC/UPC, FC/APC, LC/UPC or LC/APC connectors. These are all manufactured to the strictest standards and tested to insure high extinction ratio and low insertion losses. Polarizers have been delivered to address specific spectral needs ranging from 820-2000 nm. ...
Polarization Maintaining Cables 1550nm
Timbercon
Polarization maintaining fiber is used in applications which require the light to maintain polarization as it propagates down the core of a fiber. PM fiber is commonly utilized in the telecommunications, sensor, and specialized photonics industries. Timbercon PM cables are available with active, visual, or crossed alignment, and FC, ...
Polarization Maintaining Cables 1310nm
Timbercon
Polarization maintaining fiber is used in applications which require the light to maintain polarization as it propagates down the core of a fiber. PM fiber is commonly utilized in the telecommunications, sensor, and specialized photonics industries. Timbercon PM cables are available with active, visual, or crossed alignment, and FC, ...
Polarization Maintaining Cables 1300nm
Timbercon
Polarization maintaining fiber is used in applications which require the light to maintain polarization as it propagates down the core of a fiber. PM fiber is commonly utilized in the telecommunications, sensor, and specialized photonics industries. Timbercon PM cables are available with active, visual, or crossed alignment, and FC, ...
Polarization Maintaining Cables 1060nm
Timbercon
Polarization maintaining fiber is used in applications which require the light to maintain polarization as it propagates down the core of a fiber. PM fiber is commonly utilized in the telecommunications, sensor, and specialized photonics industries. Timbercon PM cables are available with active, visual, or crossed alignment, and FC, ...
Polarization Maintaining Cables 980nm
Timbercon
Polarization maintaining fiber is used in applications which require the light to maintain polarization as it propagates down the core of a fiber. PM fiber is commonly utilized in the telecommunications, sensor, and specialized photonics industries. Timbercon PM cables are available with active, visual, or crossed alignment, and FC, ...
Polarization Maintaining Cables 850nm
Timbercon
Polarization maintaining fiber is used in applications which require the light to maintain polarization as it propagates down the core of a fiber. PM fiber is commonly utilized in the telecommunications, sensor, and specialized photonics industries. Timbercon PM cables are available with active, visual, or crossed alignment, and FC, ...
Polarization Maintaining Cables 780nm
Timbercon
Polarization maintaining fiber is used in applications which require the light to maintain polarization as it propagates down the core of a fiber. PM fiber is commonly utilized in the telecommunications, sensor, and specialized photonics industries. Timbercon PM cables are available with active, visual, or crossed alignment, and FC, ...
Polarization Maintaining Cables 633nm
Timbercon
Polarization maintaining fiber is used in applications which require the light to maintain polarization as it propagates down the core of a fiber. PM fiber is commonly utilized in the telecommunications, sensor, and specialized photonics industries. Timbercon PM cables are available with active, visual, or crossed alignment, and FC, ...
Polarization Maintaining Cables 480nm
Timbercon
Polarization maintaining fiber is used in applications which require the light to maintain polarization as it propagates down the core of a fiber. PM fiber is commonly utilized in the telecommunications, sensor, and specialized photonics industries. Timbercon PM cables are available with active, visual, or crossed alignment, and FC, ...
Polarization Maintaining Cables 460nm
Timbercon
Polarization maintaining fiber is used in applications which require the light to maintain polarization as it propagates down the core of a fiber. PM fiber is commonly utilized in the telecommunications, sensor, and specialized photonics industries. Timbercon PM cables are available with active, visual, or crossed alignment, and FC, ...
Anylink manufactures FC, SC, LC, MU and other types of  Polarization Maintaining fiber connectors. PM Fibers are designed to reduce cross-talk between modes. More information about PM Fiber, including the difference between fast and slow axis, can be requested from us.

Frequently Asked Questions

A polarization-maintaining fiber cable is a type of optical fiber that preserves the polarization state of light as it propagates through the fiber. This is achieved through the use of a birefringent core, which has different refractive indices for light polarized in different directions.

Polarization-maintaining fiber cables are commonly used in fiber-optic communication and sensing applications where maintaining the polarization of light is critical. They offer improved signal quality and higher signal-to-noise ratios compared to conventional fiber cables.

Polarization-maintaining fiber cables are typically manufactured using a modified chemical vapor deposition (MCVD) process, which involves depositing multiple layers of silica and dopant materials onto a cylindrical glass substrate. The core of the fiber is then exposed to a polarizing beam of light to induce birefringence.

When selecting a polarization-maintaining fiber cable, important parameters to consider include wavelength range, insertion loss, polarization extinction ratio, and connector type. Consult the manufacturer's datasheet or contact their technical support for assistance with selecting the right cable for your application.

In standard single mode fibers, polarization modes are not maintained and can change randomly due to fiber bending or environmental factors. In contrast, polarization maintaining fibers are designed to maintain a consistent polarization state, making them suitable for applications that require polarization-sensitive devices.

The maximum power handling capacity of polarization maintaining cables depends on various factors such as the fiber material, the diameter of the core and cladding, and the coating. It is recommended to consult the manufacturer's specifications for the particular cable you are interested in.

Yes, polarization maintaining cables can be used for high-speed data transmission. The polarization-maintaining property of these cables ensures that the polarization state of the signal is maintained during transmission, which is important for certain high-speed communication applications.

The temperature range for operation of polarization maintaining cables varies depending on the type of fiber and coating material used. Some polarization maintaining cables are designed to operate at temperatures as low as -40°C and as high as 85°C. It is recommended to consult the manufacturer's specifications for the particular cable you are interested in.

There are 23 different Polarization-Maintaining Cables from suppliers and manufacturers listed in this category. In just a few clicks you can compare different Polarization-Maintaining Cables with each other and get an accurate quote based on your needs and specifications. Please note that the prices of Polarization-Maintaining Cables vary significantly for different products based on various factors including technical parameters, features, brand name, etc. Please contact suppliers directly to inquire about the details and accurate pricing information for any product model. Simply navigate to the product page of interest and use the orange button to directly reach out to the respective supplier with one click.

Did You know?

Polarization maintaining fiber cables are specifically designed to maintain the polarization state of light as it propagates through the fiber. This is achieved through the use of a highly birefringent fiber, which has two axes of differing refractive index. These two axes correspond to the two polarization states of light, and they are carefully aligned with the mechanical structure of the cable to ensure that the polarization state is maintained along the length of the fiber. The use of polarization maintaining fiber cables is essential in a range of applications where the polarization state of light needs to be maintained, such as in fiber optic communications, interferometry, telecommunications, sensors, and other specialized photonics utilities. In fiber optic communications, polarization maintaining fibers are used to minimize signal distortion due to polarization mode dispersion, which can limit the transmission distance and data rate. In interferometry, polarization maintaining fibers are used to maintain the phase relationship between the interfering beams of light, allowing for highly precise measurements of optical path length. To ensure optimal performance of polarization maintaining fiber cables, it is important to align them correctly with the input and output optical components. This can be achieved through the use of specialized connectors and alignment tools, and by following strict procedures for handling and installation. Polarization maintaining fiber cables are available in a range of configurations, including single-mode and multimode fibers, and can be customized to meet specific application requirements.
