Description

Polarization maintaining (PM) fiber optic patch cord is manufactured with polarization maintaining panda fiber and terminated by FC, SC, LC, ST, MU, MPO, MTP and other types of fiber connectors, by PC or APC polishing. while for the FC connector, it can be supplied with wide key (2.14mm) or narrow key (2.02mm) width.

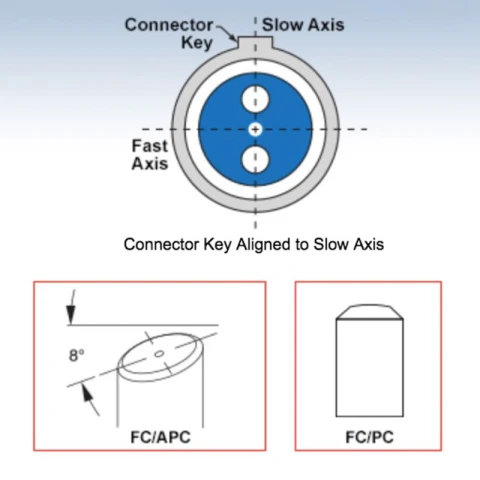

The patch cord can be supplied with 250um bare fiber, 900um buffered fiber, 2.0mm or 3.0mm cable, and armored cable. TARLUZ PM patch cord featured with low insertion loss, high extinction ratio and return loss. The slow axis or fast axis can be aligned to the connector key upon request.

Polarization-Maintaining Patch Cable, 3.0mm Blue Jacket, Panda Fiber

Specifications

Insertion Loss: 0.2 dB
Return Loss: 60 dB
Polarization Extinction Ratio (PER): 23 dB
Wavelength Range: 980 – 1550 nm
Numerical Aperture (NA): Not Specified
Max Optical Power: 300 mW
Core Diameter: Not Specified
Cladding Diameter: Not Specified
Fiber Type: Panda PM Fiber
Fiber Connector Type: FC/APC
Wavelength: 980-1030-1064-1310-1550 nm
Cladding Diameter: 125.0um
Core Diameter: 8.5um
Max. Optical Power (mW): 300
Jacket Type: 3.0mm Blue Tubing
Operation Temperature (°C): 0 to +70 °C
Storage Temperature (°C): -40 to +85°C
Insertion Loss (dB): 0.5dB (Max.) 0.3dB (Typ.)
Return Loss (dB): 50dB (UPC) 60dB (APC)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  1. 100% optically inspected and tested for insertion loss
  2. High extinction ratio
  3. Low insertion loss and High return loss
  4. IEC, TIA/EIA, Telcordia compliant
  5. Jacket cable diameter: 250um, 900um, 2.0mm and 3.0mm
  6. Good packing, competitive prices and very fast delivery

Applications

  1. Data center
  2. Telecommunication networks
  3. CATV
  4. LAN and WAN
  5. FTTX
  6. Broadband network

Frequently Asked Questions

What is a polarization maintaining (PM) patch cord?
A polarization maintaining (PM) patch cord is a fiber optic cable built with polarization maintaining panda fiber and connectorized with FC/UPC or FC/APC connectors. It is designed to maintain the polarization of light over its length.
What types of connectors are available for the PM patch cord?
The PM patch cord can be equipped with FC/UPC, SC/UPC, FC/APC, or SC/APC connectors.
What are the key features of the TARLUZ PM patch cord?
The key features include high extinction ratio, low insertion loss, default key alignment to the slow axis, and availability in cable diameters of 250um, 900µm, 2.0mm, and 3.0mm.
What are the typical applications for the PM patch cord?
Typical applications include switching, EDFAs, coherent optical communications, integrated optics, high-speed transmission devices, external modulators, and interferometric sensors.
What is the extinction ratio of the PM patch cord?
The extinction ratio is greater than 23dB for narrow key connectors and greater than 20dB for wide key connectors.
What is the maximum optical power the PM patch cord can handle?
The PM patch cord can handle a maximum optical power of 300mW.
What are the operating and storage temperature ranges for the PM patch cord?
The operating temperature range is -20 to +70°C, and the storage temperature range is -40 to +85°C.

Got more questions? Use the inquiry form to ask the supplier directly.
