Description

Polarization maintaining (PM) fiber optic patch cord is manufactured with polarization maintaining panda fiber and terminated by FC, SC, LC, ST, MU, MPO, MTP and other types of fiber connectors, by PC or APC polishing. while for the FC connector, it can be supplied with wide key (2.14mm) or narrow key (2.02mm) width.

The patch cord can be supplied with 250um bare fiber, 900um buffered fiber, 2.0mm or 3.0mm cable, and armored cable. TARLUZ PM patch cord featured with low insertion loss, high extinction ratio and return loss. The slow axis or fast axis can be aligned to the connector key upon request.

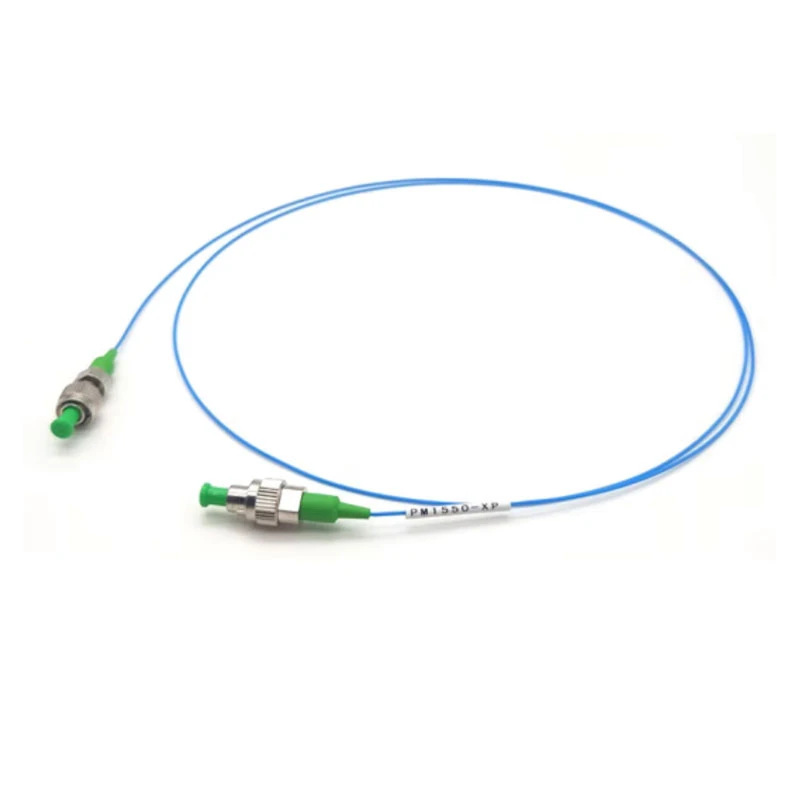

Polarization-Maintaining Patch Cable, 0.9mm Blue Jacket, Panda Fiber

Visit the SHANGHAI TARLUZ TELECOM TECH CO LTD Store

Specifications

Insertion Loss: 0.2 dB
Return Loss: 50 dB
Polarization Extinction Ratio (PER): 20 dB
Wavelength Range: 980 – 1550 nm
Numerical Aperture (NA): Not Specified
Max Optical Power: 300 mW
Core Diameter: Not Specified
Cladding Diameter: Not Specified
Fiber Type:: Panda PM Fiber
Connector Type:: FC/APC
Wavelength:: 980-1030-1064-1310-1550nm
Cladding Diameter:: 125.0um
Core Diameter:: 245.0um
Max. Optical Power (mW):: 300
Jacket Type:: 0.9mm Blue Tubing
Operation Temperature (°C):: 0 to +70℃
Storage Temperature (°C):: -40 to +85℃
Insertion Loss (dB): 0.5dB (Max.) 0.3dB (Typ.)
Return Loss (dB): 50dB (UPC) 60dB (APC)
Extinction Ratio (dB): 23dB (Min.) 25dB (Typ.)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  •  High extinction ratio
  •  Low insertion loss & High return loss
  •  Jacket cable diameter: 250um, 900µm, 2.0mm and 3.0mm

Applications

  • Data center
  • Telecommunication networks
  • CATV
  • LAN and WAN
  • FTTX
  • Broadband network

Frequently Asked Questions

What is a Polarization Maintaining (PM) Patch Cord?
A Polarization Maintaining (PM) Patch Cord is a fiber optic cable designed to maintain the polarization of light as it travels through the cable, using PM panda fiber and connectorized with FC/UPC or FC/APC connectors.
What connector types are available for the PM Patch Cord?
The PM Patch Cord is available with FC/UPC, SC/UPC, FC/APC, and SC/APC connector types.
What are the key features of the TARLUZ PM Patch Cord?
The key features include high extinction ratio, low insertion loss, default key alignment to the slow axis, and availability in various jacket cable diameters (250um, 900µm, 2.0mm, and 3.0mm).
What are some common applications for the PM Patch Cord?
The PM Patch Cord is used in switching, EDFAs, coherent optical communications, integrated optics, high-speed transmission devices, external modulators, and interferometric sensors.
What is the maximum optical power handling capacity of the PM Patch Cord?
The PM Patch Cord can handle a maximum optical power of 300mw.
What is the operating temperature range for the PM Patch Cord?
The operating temperature range for the PM Patch Cord is -20 to +70°C.
How can I specify the fiber length and type when ordering a PM Patch Cord?
When ordering, you can specify the fiber length (ranging from 0.5m to 20m) and the fiber type (3.0mm, 2.0mm, 900um, or 250um) using the provided ordering information code format.

Got more questions? Use the inquiry form to ask the supplier directly.
