Description

The Polarization Maintaining Fiber Optic Patch Cord PM1300-XP FC/APC-FC/APC with a PM1300-XP (980-1600nm) fiber type and 1m long patch cord is a high-quality fiber optic solution designed for precision and reliability.

Manufactured with polarization maintaining panda fiber, this patch cord is expertly terminated with a range of fiber connectors including FC, SC, LC, ST, MU, MPO, and MTP. The connectors are available with either PC or APC polishing, ensuring optimal performance for various applications. For FC connectors, options for wide key (2.14mm) or narrow key (2.02mm) widths are available, providing flexibility to meet specific installation requirements.

Engineered for versatility, the patch cord can be supplied with different types of fiber including 250um bare fiber, 900um buffered fiber, 2.0mm or 3.0mm cable, and even armored cable for enhanced durability. The TARLUZ PM patch cord is distinguished by its low insertion loss, high extinction ratio, and superior return loss, making it an ideal choice for demanding environments. Additionally, the slow axis or fast axis of the fiber can be aligned to the connector key upon request, ensuring precise alignment and performance.

With a focus on quality and performance, the Polarization Maintaining Patch Cord is designed to operate efficiently within a temperature range of 0 to +70°C, and can be stored safely in temperatures ranging from -40 to +85°C. The use of PM panda fiber from reputable manufacturers such as Nufern, Corning, Fujikura, and YOFC guarantees consistency and reliability. Whether used in high-speed transmission devices, coherent optical communications, or interferometric sensors, this patch cord delivers exceptional performance and reliability.

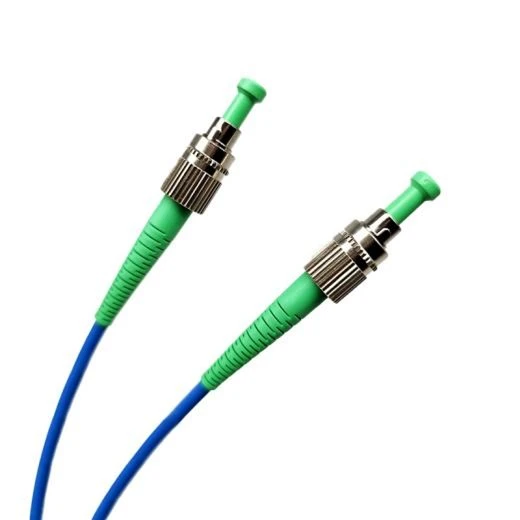

Polarization Maintaining Fiber Optic Patch Cord PM1300-XP FC/APC-FC/APC 1m Long

Visit the SHANGHAI TARLUZ TELECOM TECH CO LTD Store

Specifications

Insertion Loss: 0.3 dB
Return Loss: 60 dB
Polarization Extinction Ratio (PER): 25 dB
Wavelength Range: 1270 – 1625 nm
Numerical Aperture (NA): 0.12
Max Optical Power: 300 mW
Connector Type: FC, SC, LC
Alignment Wavelength (nm): 1300
Cutoff Wavelength (nm): 1210 ± 60
Mode Field Diameters (um): 9.3±0.5 @ 1300nm
Insertion Loss (dB) Max.: 0.5
Return Loss (dB) UPC: 50
Return Loss (dB) APC: 60
Extinction Ratio (dB) Min.: 23
Extinction Ratio (dB) Typ.: 25
Connector Key For FC Type: Narrow key (1.97~2.02mm) or Wide key (2.09~2.14mm)
Fiber Type: PM1300-XP (980-1600nm), PM panda fiber (Nufern, Corning, Fujikura, YOFC or specified)
Operation Temperature (°C): 0 to +70
Storage Temperature (°C): -40 to +85
Cord Length (m): 1
Manufacturer Part Number (MPN): TL-PMPC-FCASFCAS-1330LBE/09HBE0010M
FindLight SKU: FL-24341

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Extinction Ratio: Ensures superior performance in maintaining polarization, crucial for high-precision applications.
  • Low Insertion Loss: Guarantees minimal signal loss, enhancing the efficiency of optical networks.
  • High Return Loss: Provides excellent signal reflection characteristics, improving overall system performance.
  • Versatile Connector Options: Available with FC, SC, LC, ST, MU, MPO, MTP, and other connector types, with PC or APC polishing.
  • Customizable Fiber Alignment: Slow or fast axis alignment to the connector key available upon request.
  • Durable Construction: Offered with 250μm bare fiber, 900μm buffered fiber, 2.0mm or 3.0mm cable, and armored cable options.
  • Wide Operating Temperature Range: Operates efficiently between 0°C to +70°C, with storage temperatures from -40°C to +85°C.
  • High Optical Power Handling: Supports up to 300mW of optical power, suitable for high-power applications.
  • Precision Key Options for FC Connectors: Available in narrow key (1.97~2.02mm) or wide key (2.09~2.14mm) configurations.
  • Quality Fiber Types: PM-S405-XP. Utilizes PM panda fiber from leading manufacturers like Nufern, Corning, Fujikura, and YOFC.

Applications

Applications of Polarization Maintaining Patch Cord

  • Coherent Optical Communications: Maintains a stable polarization state for coherent transmission systems, advanced modulation formats, and high-capacity fiber optic networks.
  • Fiber Optic Sensing Systems: Ideal for interferometric sensors, fiber gyroscopes, current sensors, acoustic sensors, and other precision sensing applications requiring stable polarization.
  • EDFA and Fiber Amplifier Systems: Used in erbium-doped fiber amplifiers and other optical amplifier modules where polarization stability helps improve system performance.
  • High-Speed Optical Transmission Devices: Supports high-speed data transmission, telecom test platforms, and optical communication equipment requiring low insertion loss and high extinction ratio.
  • External Optical Modulators: Suitable for connecting lithium niobate modulators, phase modulators, intensity modulators, and other polarization-sensitive modulation devices.
  • Integrated Optics and Photonic Circuits: Provides reliable polarization-maintaining connectivity for silicon photonics, planar lightwave circuits, photonic integrated circuits, and optical chip testing.
  • Optical Switching Systems: Used in polarization-sensitive optical switches, routing systems, and reconfigurable optical networks.
  • Laser Diode and Fiber Laser Systems: Connects polarization-sensitive laser sources, seed lasers, pump lasers, and fiber laser modules while preserving polarization alignment.
  • Test and Measurement Equipment: Ideal for optical laboratories, polarization extinction ratio testing, optical component characterization, and precision fiber optic measurement setups.
  • Quantum Optics and Quantum Communication: Supports quantum key distribution, photon-pair experiments, quantum photonics, and polarization-sensitive research systems.
  • Interferometry Applications: Used in Mach-Zehnder interferometers, Michelson interferometers, fiber interferometers, and precision phase measurement systems.
  • Biomedical and Scientific Instrumentation: Suitable for OCT systems, spectroscopy platforms, microscopy systems, and other instruments requiring stable polarization delivery.
  • Polarization-Sensitive Optical Modules: Designed for use with PM couplers, PM isolators, PM circulators, PM WDMs, PM splitters, and other polarization maintaining fiber components.
  • RF Photonics and Microwave Photonics: Provides stable optical signal delivery for RF-over-fiber links, microwave photonic filters, antenna remoting, and analog photonic systems.
  • Aerospace, Defense, and Navigation Systems: Suitable for rugged polarization-maintaining links in fiber optic gyroscopes, inertial navigation systems, and mission-critical optical platforms.
  • Telecom and Datacom R&D: Used in research and development of optical transceivers, coherent modules, DWDM systems, and next-generation fiber optic communication networks.
  • Polarization Control and Analysis: Helps maintain defined slow-axis or fast-axis alignment for polarization controllers, analyzers, and extinction ratio measurement setups.
  • Visible, NIR, and IR Optical Systems: Available for wavelengths including UV-visible, 780 nm, 980 nm, 1064 nm, 1300 nm, 1550 nm, and 2000 nm applications.
  • Laboratory Fiber Optic Patch Cord Connections: Provides reliable PM fiber connectivity between lasers, modulators, detectors, optical benches, and fiber optic instruments.
  • OEM Optical Subsystems: Suitable for integration into compact optical modules and OEM equipment requiring custom connector types, cable jackets, and axis alignment options.

Export & Trade Information

ECCN: EAR99
HTS Code: 8544.70.0000
Estimated US Tariff: 25%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is a polarization maintaining PM fiber optic patch cord used for?
A polarization maintaining PM fiber optic patch cord is used to transmit linearly polarized light while maintaining the state of polarization. It is commonly used in coherent optical communications, EDFAs, fiber optic switching, integrated optics, high-speed transmission systems, external modulators, interferometric sensors, and other polarization-sensitive photonic applications.
What wavelengths are supported by the TARLUZ polarization maintaining patch cord?
The TARLUZ PM patch cord is available for multiple alignment wavelengths, including 375 nm, 405 nm, 460 nm, 630 nm, 780 nm, 980 nm, 1064 nm, 1300 nm, 1550 nm, and 2000 nm. Depending on the selected fiber, wavelength ranges extend from 350–460 nm up to 1850–2200 nm.
What connector types are available for this PM fiber patch cable?
This polarization maintaining patch cable can be supplied with FC, SC, and LC connectors as standard. The datasheet also indicates availability with other connector styles such as ST, MU, MPO, and MTP upon request. FC connectors can be configured with either narrow key or wide key options.
What is the insertion loss and extinction ratio of the PM patch cord?
Insertion loss depends on wavelength. Typical insertion loss ranges from 0.3 dB at 1300 nm, 1550 nm, and 2000 nm to about 1.2 dB at shorter visible wavelengths. Maximum insertion loss ranges from 0.5 dB to 1.5 dB. The extinction ratio is wavelength dependent, with typical values from 17 dB at 375 nm and 405 nm up to 25 dB at 1300 nm, 1550 nm, and 2000 nm.
Can the PM fiber axis be aligned to the connector key?
Yes. By default, the slow axis of the PM panda fiber is aligned to the connector key. The fast axis can also be aligned to the connector key upon request, which is important for compatibility with lasers, modulators, interferometers, and other polarization-sensitive components.
What is the difference between UPC and APC polishing for this PM patch cord?
UPC and APC refer to connector end-face polishing styles. UPC connectors provide a typical return loss of 50 dB, while APC connectors provide a higher typical return loss of 60 dB. APC polishing is often preferred in applications requiring lower back reflection, such as high-performance communication systems, coherent optics, and sensitive laser setups.
What cable and fiber options are available for the polarization maintaining patch cord?
The PM patch cord can be supplied using PM panda fiber from manufacturers such as Nufern, Corning, Fujikura, YOFC, or a specified equivalent. Cable options include 250 µm bare fiber, 900 µm buffered fiber, 2.0 mm cable, 3.0 mm cable, and armored cable. The maximum optical power is 300 mW, with an operating temperature range of 0°C to +70°C and storage temperature range of -40°C to +85°C.

Got more questions? Use the inquiry form to ask the supplier directly.
