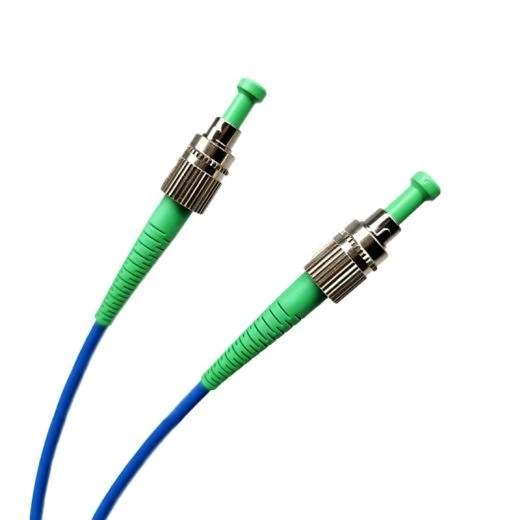

The Polarization Maintaining Fiber Optic Patch Cord PM1300-XP FC/APC-FC/APC with a PM1300-XP (980-1600nm) fiber type and 10m long patch cord is a high-quality fiber optic solution designed for precision and reliability.

Manufactured with polarization maintaining panda fiber, this patch cord is expertly terminated with a range of fiber connectors including FC, SC, LC, ST, MU, MPO, and MTP. The connectors are available with either PC or APC polishing, ensuring optimal performance for various applications. For FC connectors, options for wide key (2.14mm) or narrow key (2.02mm) widths are available, providing flexibility to meet specific installation requirements.

Engineered for versatility, the patch cord can be supplied with different types of fiber including 250um bare fiber, 900um buffered fiber, 2.0mm or 3.0mm cable, and even armored cable for enhanced durability. The TARLUZ PM patch cord is distinguished by its low insertion loss, high extinction ratio, and superior return loss, making it an ideal choice for demanding environments. Additionally, the slow axis or fast axis of the fiber can be aligned to the connector key upon request, ensuring precise alignment and performance.

With a focus on quality and performance, the Polarization Maintaining Patch Cord is designed to operate efficiently within a temperature range of 0 to +70°C, and can be stored safely in temperatures ranging from -40 to +85°C. The use of PM panda fiber from reputable manufacturers such as Nufern, Corning, Fujikura, and YOFC guarantees consistency and reliability. Whether used in high-speed transmission devices, coherent optical communications, or interferometric sensors, this patch cord delivers exceptional performance and reliability.

Polarization Maintaining Fiber Optic Patch Cord PM1300-XP FC/APC-FC/APC 10m Long

Visit the SHANGHAI TARLUZ TELECOM TECH CO LTD Store

Specifications

Insertion Loss: 0.3 dB
Return Loss: 60 dB
Polarization Extinction Ratio (PER): 25 dB
Wavelength Range: 1270 – 1625 nm
Numerical Aperture (NA): 0.12
Max Optical Power: 300 mW
Connector Type: FC, SC, LC
Alignment Wavelengths (nm): 1300
Cutoff Wavelength (nm): 1210 ± 60
Mode Field Diameters (um): 9.3±0.5 @ 1300nm
Insertion Loss (dB) Max.: 0.5
Return Loss (dB) UPC: 50
Return Loss (dB) APC: 60
Extinction Ratio (dB) Min.: 23
Extinction Ratio (dB) Typ.: 25
Axis Alignment: Slow axis of fiber aligned to connector key (in default)
Connector Key For FC Type: Narrow key (1.97~2.02mm) or Wide key (2.09~2.14mm)
Fiber Type: PM1300-XP (980-1600nm), PM panda fiber (Nufern, Corning, Fujikura, YOFC or specified)
Operation Temperature (°C): 0 to +70
Storage Temperature (°C): -40 to +85
Cord Length (m): 10
Manufacturer Part Number (MPN): TL-PMPC-FCASFCAS-1330LBE/09HBE0100M
FindLight SKU: FL-24345

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Extinction Ratio: Ensures superior performance in maintaining polarization, crucial for high-precision applications.
  • Low Insertion Loss: Guarantees minimal signal loss, enhancing the efficiency of optical networks.
  • High Return Loss: Provides excellent signal reflection characteristics, improving overall system performance.
  • Versatile Connector Options: Available with FC, SC, LC, ST, MU, MPO, MTP, and other connector types, with PC or APC polishing.
  • Customizable Fiber Alignment: Slow or fast axis alignment to the connector key available upon request.
  • Durable Construction: Offered with 250μm bare fiber, 900μm buffered fiber, 2.0mm or 3.0mm cable, and armored cable options.
  • Wide Operating Temperature Range: Operates efficiently between 0°C to +70°C, with storage temperatures from -40°C to +85°C.
  • High Optical Power Handling: Supports up to 300mW of optical power, suitable for high-power applications.
  • Precision Key Options for FC Connectors: Available in narrow key (1.97~2.02mm) or wide key (2.09~2.14mm) configurations.
  • Quality Fiber Types: PM-S405-XP. Utilizes PM panda fiber from leading manufacturers like Nufern, Corning, Fujikura, and YOFC.

Applications

Applications of Polarization Maintaining Patch Cord

  • Coherent optical communication systems: Maintains stable polarization for coherent transmission, coherent receivers, and high-speed fiber optic links.
  • High-speed optical transmission devices: Supports polarization-sensitive data transmission in telecom, datacom, and laboratory optical networks.
  • EDFA and optical amplifier modules: Used in erbium-doped fiber amplifiers and other polarization-sensitive amplifier assemblies.
  • External optical modulators: Ideal for connecting lithium niobate modulators, electro-optic modulators, phase modulators, and intensity modulators.
  • Interferometric fiber optic sensors: Suitable for fiber gyroscopes, hydrophones, strain sensors, acoustic sensors, and precision interferometry systems.
  • Integrated optics and photonic circuits: Provides stable polarization coupling for integrated optical chips, silicon photonics, and planar lightwave circuits.
  • Polarization-sensitive test and measurement: Used with polarization analyzers, optical spectrum analyzers, interferometers, and laboratory fiber optic test setups.
  • Fiber laser systems: Supports PM fiber lasers, seed lasers, pulsed fiber lasers, ultrafast lasers, and narrow-linewidth laser systems requiring polarization stability.
  • Laser diode pigtailing and coupling: Enables reliable polarization-maintaining coupling from laser diodes, superluminescent diodes, and optical sources.
  • Quantum optics and quantum communication: Suitable for polarization-encoded quantum key distribution, single-photon experiments, and quantum photonics research.
  • Biomedical and medical laser systems: Used in polarization-sensitive optical coherence tomography, spectroscopy, imaging, and diagnostic instruments.
  • Optical coherence tomography: Helps maintain polarization states in OCT systems for imaging, sensing, and biomedical research.
  • Fiber optic gyroscopes: Provides stable polarization alignment for precision navigation, aerospace, defense, and inertial sensing applications.
  • Microwave photonics: Suitable for RF-over-fiber links, photonic signal processing, and optoelectronic systems requiring controlled polarization.
  • Optical switching systems: Used in polarization-maintaining optical switches, switching matrices, and reconfigurable optical systems.
  • Polarization-maintaining fiber assemblies: Ideal for custom PM fiber jumpers, PM pigtails, PM patch cables, and connectorized PM component integration.
  • Research and development laboratories: Used in universities, photonics labs, laser laboratories, and optical component characterization setups.
  • Spectroscopy systems: Supports Raman spectroscopy, absorption spectroscopy, fluorescence spectroscopy, and other polarization-dependent optical measurements.
  • Metrology and precision measurement: Suitable for optical frequency references, calibration systems, length measurement, and phase-sensitive optical instrumentation.
  • Aerospace and defense photonics: Used in rugged optical systems, sensing platforms, secure communications, and polarization-sensitive photonic modules.
  • Visible, near-infrared, and infrared optical systems: Supports applications across 350 nm to 2200 nm wavelength ranges depending on fiber and connector configuration.
  • PM component interconnection: Connects PM couplers, PM isolators, PM circulators, PM WDMs, PM splitters, PM collimators, and other polarization-maintaining fiber optic components.

Export & Trade Information

ECCN: EAR99
HTS Code: 8544.70.0000
Estimated US Tariff: 25%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is a polarization maintaining (PM) fiber optic patch cord used for?
A polarization maintaining fiber optic patch cord preserves the linear polarization state of light as it travels through the fiber. It is commonly used in coherent optical communications, EDFAs, external modulators, interferometric sensors, integrated optics, switching systems, and high-speed optical transmission devices where stable polarization is critical.
Which wavelengths are available for the TARLUZ PM panda fiber patch cord?
The TARLUZ PM patch cord is available for multiple alignment wavelengths, including 375 nm, 405 nm, 460 nm, 630 nm, 780 nm, 980 nm, 1064 nm, 1300 nm, 1550 nm, and 2000 nm. Depending on the selected version, the operating wavelength range can cover from 350 nm to 2200 nm.
What connector types and polish options are supported for this PM patch cable?
The datasheet lists FC, SC, and LC connector types, with PC/UPC or APC polishing options. FC connectors can be supplied with either narrow key or wide key configurations. The datasheet also notes that additional connector styles such as ST, MU, MPO, and MTP may be available upon request.
What are the insertion loss and extinction ratio specifications of the PM patch cord?
Insertion loss depends on wavelength. Typical insertion loss ranges from about 0.3 dB at 1300 nm, 1550 nm, and 2000 nm to about 1.2 dB at shorter visible wavelengths. The minimum extinction ratio ranges from 15 dB to 23 dB, with typical values up to 25 dB for 1300 nm, 1550 nm, and 2000 nm versions.
Can the slow axis or fast axis be aligned to the connector key?
Yes. By default, the slow axis of the PM panda fiber is aligned to the connector key. Fast-axis alignment can also be requested if required by the optical system. Correct axis alignment is important for maintaining polarization performance in PM fiber assemblies.
What is the difference between narrow key and wide key FC connectors for PM fiber patch cords?
For FC-type PM connectors, the key controls rotational alignment of the fiber axes. This patch cord can be supplied with a narrow key measuring approximately 1.97 to 2.02 mm or a wide key measuring approximately 2.09 to 2.14 mm. Matching the key type to the mating adapter is important for proper polarization axis alignment.
What cable formats, power rating, and temperature range are available?
The PM patch cord can be supplied as 250 µm bare fiber, 900 µm buffered fiber, 2.0 mm cable, 3.0 mm cable, or armored cable. The maximum optical power is 300 mW. The operating temperature range is 0°C to +70°C, and the storage temperature range is -40°C to +85°C.

Got more questions? Use the inquiry form to ask the supplier directly.
