High Power Fiber Cables

FlexiRay ® cables from art photonics is the latest generation of High Power Fiber Cables produced for various lasers in broad spectral range. FlexiRay ® HP-cables deliver much higher power compared to the similar cables in result of specialty laser fiber combination with the proprietary ...

Specifications

Fiber Core Diameter: 600 um
Cable Length: up to 50 m
Fiber Core Shape: Round
Fiber Cladding: Fluorine doped fused silica
Ptotective Jacket Material: Nylon, Tefzel, Acrylate, Polyimide, Metal
...
Data Sheet
FlexiRay® cables from art photonics is the latest generation of High Power Fiber Cables produced for various lasers in broad spectral range. FlexiRay ® HP-cables deliver much higher power compared to the similar cables in result of specialty laser fiber combination with the proprietary connector design. This synergy enables ...

Specifications

Fiber Core Diameter: 200 um
Cable Length: up to 50 m
Fiber Core Shape: Round
Fiber Cladding: Fluorine doped fused silica
Ptotective Jacket Material: Nylon, Tefzel, Acrylate, Polyimide, Metal
...
Data Sheet
FlexiRay® cables from art photonics is the latest generation of High Power Fiber Cables produced for various lasers in broad spectral range. FlexiRay ® HP-cables deliver much higher power compared to the similar cables in result of specialty laser fiber combination with the proprietary ...

Specifications

Fiber Core Diameter: 100 um
Cable Length: up to 200 m
Fiber Core Shape: Round
Fiber Cladding: Fluorine doped fused silica
Ptotective Jacket Material: Nylon, Tefzel, Acrylate, Polyimide, Metal
...
Data Sheet
D80 High Power Fiber SI400
TARLUZ
Precision end face grinding on large core high power fiber, with air gap and sapphire to protect D80 Connector, to achieve laser beam optical power less than 600w to transmit in single core flexible D80 patch cable.

Specifications

Fiber Core Diameter: 400 um
Cable Length: -- m
Data Sheet
LimeLight Cable Assemblies SMPTE 304M And 311M Compliant
Amphenol Fiber Systems International
Amphenol Fiber Systems International’s (AFSI) SMPTE 304M compliant (110 Series) fiber optic connectors and 311M compliant cable assemblies provide rugged and superior performance for broadcast applications. AFSI connectors and cable assemblies are designed for easy maintenance providing optimal optical ...

Specifications

Fiber Core Diameter: -- um
Cable Length: -- m
Data Sheet
ARES Reels
Amphenol Fiber Systems International
The ARES reels are made with a chemical and impact resistant polymer providing a rust-resistant, lightweight and durable reel for storage solutions and deploying fiber optic cable assemblies. Features on the reel allow them to be stacked together for storage and transit. The ARES reels also have separate payout and storage areas ...

Specifications

Fiber Core Diameter: -- um
Cable Length: 300 m
Data Sheet
M38999 Fiber Optic Hybrid Cable Assemblies
Amphenol Fiber Systems International
Amphenol Fiber Systems International (AFSI) designs and manufactures world class harsh environment fiber optic connectors and cable assemblies for the military and aerospace markets. Cable assemblies built with D38999 connectors, used in military, avionics, and industrial applications, are a key offering in our industry-leading ...

Specifications

Fiber Core Diameter: -- um
Cable Length: -- m
Data Sheet
Multi-Channel Fiber Optic Cable Assemblies
Amphenol Fiber Systems International
Amphenol Fiber Systems International (AFSI) builds custom cable assemblies for virtually any applications. Our stringent quality system, certified to MIL-STD-790, ensures the highest levels of workmanship and performance available today in each and every cable assembly built. There are virtually no connector standards that AFSI does ...

Specifications

Fiber Core Diameter: -- um
Cable Length: -- m
Data Sheet

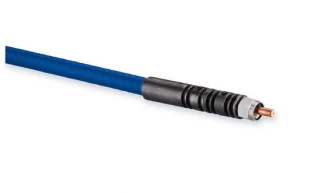

Laser cable with F-SMA freestanding fiber connectors and PVC coated, steel-armored protection tube. Copper based high-accuracy fiber ferrule for effective heat removal and high fiber centricity. Integrated convection-cooled cladding-mode stripper (ModeStrip). Applicable for laser beam delivery of up to 200 W.

Specifications

Fiber Core Diameter: 100 um
Cable Length: 5 m
Data Sheet

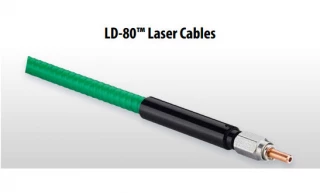

Laser cable with LD-80 freestanding fiber connectors and PVC coated steel-armored protection tube. Copper based highaccuracy fiber ferrule for effective heat removal and high fiber centricity. Applicable for laser beam delivery of up to 800 W.

Specifications

Fiber Core Diameter: 200 um
Cable Length: 3 m
Data Sheet

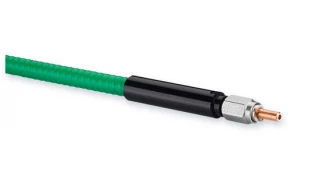

Laser cable with LD-80 freestanding fiber connectors and PVC coated steel-armored protection tube. Copper based highaccuracy fiber ferrule for effective heat removal and high fiber centricity. Applicable for laser beam delivery of up to 800 W.

Specifications

Fiber Core Diameter: 100 um
Cable Length: 3 m
Data Sheet
Laser cable with LD-80 freestanding fiber connectors and PVC coated steel-armored protection tube. Copper based highaccuracy fiber ferrule for effective heat removal and high fiber centricity. Applicable for laser beam delivery of up to 800 W.

Specifications

Fiber Core Diameter: 1000 um
Cable Length: 2 m
Data Sheet

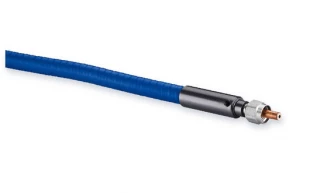

Laser cable with F-SMA freestanding fiber connectors and PVC coated, steel-armored protection tube. Copper based high-accuracy fiber ferrule for effective heat removal and high fiber centricity. Integrated liquid-cooled cladding-ModeStripper. Applicable for laser beam delivery of up to 500 W.

Specifications

Fiber Core Diameter: 100 um
Cable Length: 2 m
Data Sheet
Laser cable with F-SMA freestanding fiber connectors and PVC coated steel-armored protection tube. Copper based highaccuracy fiber ferrule for effective heat removal and high fiber centricity. Applicable for laser beam delivery of up to 500 W.

Specifications

Fiber Core Diameter: 100 um
Cable Length: 2 m
Data Sheet
Laser cable with industrial standard 10 mm x 54 mm and 15 mm x 54 mm high power fiber connectors and highly flexible polymer-aramid protection tube. Copper based high-accuracy fiber ferrule for effective heat removal and high fiber centricity. Fiber break detection and connector temperature monitoring circuit ...

Specifications

Fiber Core Diameter: 200 um
Cable Length: - m
Fiber Length Options: Custom
Data Sheet
Laser cable with LD-80 freestanding fiber connectors and PVC coated steel-armored protection tube. Copper based highaccuracy fiber ferrule for effective heat removal and high fiber centricity. Applicable for laser beam delivery of up to 800 W.

Specifications

Fiber Core Diameter: 100 um
Cable Length: 2 m
Data Sheet
CuSMA™ laser cables with distinctive copper alloy ferrule and free-standing cantilevered fiber provide unequaled fiber centration and connector durability. The copper provides an excellent thermal path to remove heat from overfill, and reflections. • Low OH and High OH fluorine-doped SI (step index) silica clad fiber with ...

Specifications

Fiber Core Diameter: 100 um
Cable Length: 2 m
Data Sheet

Frequently Asked Questions

Unlike regular optical fibers, the connectors attached to either end of a high-power optical fiber are not glued with epoxy or other heat-absorbing materials. Such materials trap the heat and lead to strong power attenuation. Instead, they use air-gap-ferrule technology with connectors that act like heat sinks and protect the fiber from extreme temperatures associated with large output powers.

Yes, many manufacturers add an anti-reflective coating to the ends of the fiber. This prevents the high-power level carried by the fiber from reflecting back into components such as lasers which could damage them.

Fiber-ferrule centricity is a parameter that defines how well-centered the fiber core is with the ferrule outer diameter. The standard value of fiber centricity is 10 µm or less and it represents the offset between the two diameters. Small values of fiber centricity ensure that less power is coupling out of the system which may cause undesired effects.

PVC is known for protecting optical fibers from external stresses, pressure, and sharp bends all while offering great flexibility. In some cases, stainless steel is used instead of plastic to offer greater protection, especially in heavy-duty applications.

No, it is not recommended to mate a high-power optical fiber with a low-power one. Low-power fibers are not designed to support hundreds of watts and are generally smaller than high-power optical fibers. The modal mismatch between the two cables will give rise to substantial energy loss localized at the ends of the fibers. This results in the heating and sometimes even the burning out of the fiber outputs. It is also not recommended to use a mating sleeve as that increases the risk of damaging the fibers.

High-power fiber cables are widely used in pulsed laser systems to transmit pulses with extremely high average powers. They are also very popular in the machining industry for their flexibility and durability. They are found in laser welding applications, laser drilling, etching, and cutting.

High-power fiber cables are typically a few meters long. Commonly used high power fiber cables are 2m, 3m, and 5m long.

High-power fibers can be multimode or single mode. This depends on the size of the core.

It is possible for high-power fiber cables to maintain the polarization of light if the material used to fabricate the fiber is nonlinear. Most optical media are birefringent, and when used to propagate high power levels, the light will accumulate different phases along different directions which could cause the polarization to change.

There are 19 different High Power Fiber Cables from suppliers and manufacturers listed in this category. In just a few clicks you can compare different High Power Fiber Cables with each other and get an accurate quote based on your needs and specifications. Please note that the prices of High Power Fiber Cables vary significantly for different products based on various factors including technical parameters, features, brand name, etc. Please contact suppliers directly to inquire about the details and accurate pricing information for any product model. Simply navigate to the product page of interest and use the orange button to directly reach out to the respective supplier with one click.

Did You know?

High-power fiber cables are specially designed for laser delivery where the laser power output exceeds a few watts. Typically, these cables are made of fused silica, and they can be a few millimeters wide in diameter thus supporting many modes. High-power fiber cables can propagate laser light with power levels as high as 800 W without receiving any damage. In some designs, the cable ends are connected to special copper connectors that absorb the heat and protect the fused silica glass from breaking. Other designs take advantage of the air-gap-ferrule technology where the connectors themselves act as heat sinks. These fibers are usually wrapped in a thick jacket which shields them from environmental effects and allows operation at very low and high temperatures. High-power fiber cables are an excellent delivery method for laser drilling, cutting, and welding applications as they are flexible and durable.
