Description

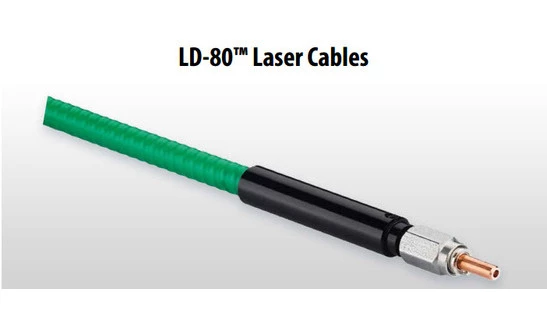

Introducing the FiberTech® LD-80 Laser Cables, a cutting-edge solution designed for industrial laser applications. These laser cables are engineered with precision to deliver exceptional performance, ensuring reliable and efficient laser beam delivery. The cables are equipped with LD-80 freestanding fiber connectors, which are housed within a PVC-coated, steel-armored protection tube, providing robust durability and longevity in demanding environments.
At the core of the FiberTech® LD-80 Laser Cables is a high-accuracy, copper-based fiber ferrule. This advanced component is specifically designed for effective heat removal, ensuring optimal performance even under high-power conditions. The laser cables boast impressive fiber centricity, with a core-to-ferrule alignment precision of less than 5 µm, which is critical for maintaining consistent beam quality and minimizing losses during transmission.
The FiberTech® LD-80 Laser Cables are versatile and suitable for a wide range of applications, capable of handling laser power outputs of up to 800 W. The cables feature anti-twist connectors with a free-standing fiber tip and a hex nut for secure and stable connections. The inclusion of all copper alloy parts further enhances heat dissipation, making these laser cables an ideal choice for high-power laser systems.
Designed with user safety and system compatibility in mind, the cables provide electrical isolation from end to end, ensuring safe operation in various settings. The squarelock, green PVC-coated protection tube not only offers mechanical protection but also adds a layer of electrical insulation, making these cables a reliable choice for industrial laser applications.
LD80 Laser Cable - FCL30-20300-2000
Specifications |
|
|---|---|
| Fiber Core Diameter: | 200 um |
| Cable Length: | 3 m |
| NA: | 0.22 |
| Connector Ø: | 4 mm x 10 mm |
| Fiber Centricity: | < 5 µm |
| Average Laser Power: | 800 W |
Features
- High-Performance Laser Cable: Designed for industrial laser applications, the FiberTech® LD-80 laser cables ensure efficient laser beam delivery.
- Versatile Fiber Core Options: Available in fiber core diameters of 100 µm, 200 µm, 400 µm, 600 µm, 800 µm, and 1000 µm to suit various needs.
- Multiple Cable Lengths: Choose from cable lengths of 2 m, 3 m, or 5 m for flexibility in installation and usage.
- Robust Construction: Features a PVC-coated steel-armored protection tube for enhanced durability and protection.
- Advanced Fiber Connectors: Equipped with LD-80 freestanding fiber connectors and copper-based high-accuracy fiber ferrule for effective heat removal and high fiber centricity.
- High Power Handling: Capable of handling average laser power up to 800 W, making it suitable for demanding applications.
- All-Silica Step-Index Fiber: Utilizes VIS-IR all-silica (silica/silica) step-index fiber with a numerical aperture (NA) of 0.22. Options for NA = 0.12 or graded-index fiber available upon request.
- Precision Engineering: Features fiber centricity of less than 5 µm from fiber core to ferrule, ensuring precise laser delivery.
- Secure and Reliable Connectors: Ø 4 mm x 10 mm connectors with key (anti-twist) and free-standing fiber tip for secure connections.
- Enhanced Heat Removal: All copper alloy parts improve heat dissipation, ensuring long-lasting performance.
- Electrical Isolation: Provides electrical isolation from end to end for safety and reliability in operation.
Applications
- Industrial Laser Processing: Ideal for high-power cutting, welding, and material processing applications.
- Laser Beam Delivery Systems: Ensures reliable and efficient transmission of laser beams in industrial setups.
- Robotic Laser Applications: Suitable for integration with robotic arms requiring flexible, durable beam delivery cables.
- Laser Measurement Systems: Provides stable optical transmission for precise measurement and sensing systems.
- Medical and Scientific Lasers: Applicable in systems requiring high power delivery with minimal signal degradation.
Frequently Asked Questions
The fiber centricity of the LD80 Laser Cable is less than 5 µm fiber core to ferrule.
Yes, the LD80 Laser Cable is suitable for use with graded-index fiber upon request.
The fiber core diameter of the LD80 Laser Cable ranges from 100 µm to 1000 µm.
The LD80 Laser Cable is used for laser beam delivery of up to 800 W.
The maximum length of the LD80 Laser Cable is 5 meters.
