FlexiRay High Power Fiber Cable HP-600
Description
The FlexiRay® Fiber Optic Laser Cable Series by art photonics is engineered to deliver high-performance laser beam transmission with unmatched robustness and precision. Designed for industrial and medical applications, these cables offer superior power handling across a broad spectrum—from 5W to 900W—thanks to innovative fiber structures and advanced connector technologies.
Each cable features precisely aligned fused silica fiber cores housed in rugged, metal-coated polymer protective tubes, ensuring both flexibility and resilience. Users can select single, double, or triple cladding designs and customized fiber core shapes to suit specific laser types and operational requirements. These cables are not only vacuum compatible but can also operate in environments exceeding 600°C, making them ideal for extreme applications like laser welding, cutting, spectroscopy, and medical procedures.
FlexiRay® cables come with options such as SMA, P-SMA, HP-SMA, and HP-D80 connectors, including epoxy-free and copper-alloy ferrules for superior thermal management. Each cable undergoes stringent quality control to ensure excellent beam quality and power delivery, making FlexiRay® a reliable solution for demanding laser systems.
FlexiRay High Power Fiber Cable HP-600
Specifications |
|
|---|---|
| Fiber Core Diameter: | 600 um |
| Cable Length: | 50 m |
| Fiber Core Shape: | Round |
| Fiber Cladding: | Fluorine doped fused silica |
| Ptotective Jacket Material: | Nylon, Tefzel, Acrylate, Polyimide, Metal |
| Standard NA: | 0.22 +/- 0.02 (Full Acceptance Angle 25%) |
| High Power Connectors: | HP-SMA, D80 |
| Fiber Centricity): | <10 μm |
| Core Material: | Fused Silica |
| Core Diameter: | 200-600 μm |
| Cable Length: | 1.5 / 3.0 / 5.0 (opt. 0.05–200) m |
Features
- High Power Transmission: Supports laser beam powers from 5W to 900W depending on the connector type
- Thermal Robustness: Operates in high-temperature environments above 600°C and vacuum settings
- Customizable Fiber Design: Offers varied core diameters, shapes, and numerical apertures
- Precision Assembly: Excellent fiber centricity (<6–10 μm) for accurate beam alignment
- Connector Versatility: SMA, P-SMA, HP-SMA, and D80 types with epoxy-free and heat-dissipating ferrules
- Durable Protection: Rugged simplex polymer-coated metal tubing in various diameters
- Advanced Quality Control: Each cable tested using IR cameras, beam profilers, and power meters
Applications
- Laser Welding of Metals & Plastics: Delivers stable beam power for high-precision joining processes
- Laser Cutting & Drilling: Ideal for industrial machining and microfabrication tasks.
- Laser Surface Treatment: Enables thermal-based surface modifications
- Medical Laser Delivery: Suitable for surgical and therapeutic laser systems
- Laser-Induced Breakdown Spectroscopy (LIBS): Reliable for high-intensity laser analysis in spectroscopy
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
FlexiRay High Power Fiber Cable HP-600 is the latest generation of High Power Fiber Cables produced for various lasers in broad spectral range.
FlexiRay HP-cables deliver much higher power compared to the similar cables in result of specialty laser fiber combination with the proprietary connector design.
The applications of FlexiRay HP-cables include Laser Welding of Metals & Plastics, Laser Cutting & Drilling, Rapid Surface Processing, Medical Laser Power Delivery, Laser Target & Rangefinder, and Laser Spectroscopy.

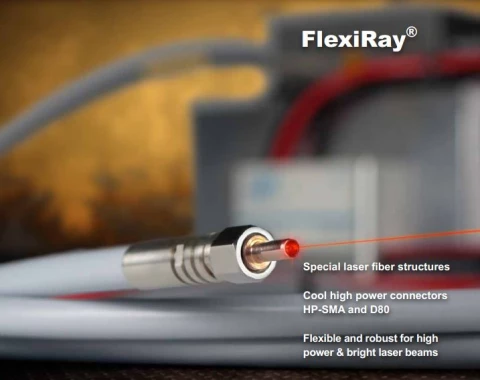

The features of FlexiRay HP-cables include special laser fiber structures, cool high power connectors HP-SMA and D80, flexible and robust for high power & bright laser beams, and long HP-cable life while high power density is delivered and connectors stay cool.
The Laser Power Matrix to select fiber core / connector of FlexiRay HP-cable is a chart that indicates the maximum power level for each combination of fiber core diameter and connector type.
