FlexiRay High Power Fiber Cable HP-400

Name: FlexiRay High Power Fiber Cable HP-400
Brand: Art photonics GmbH
Availability: InStock

Description

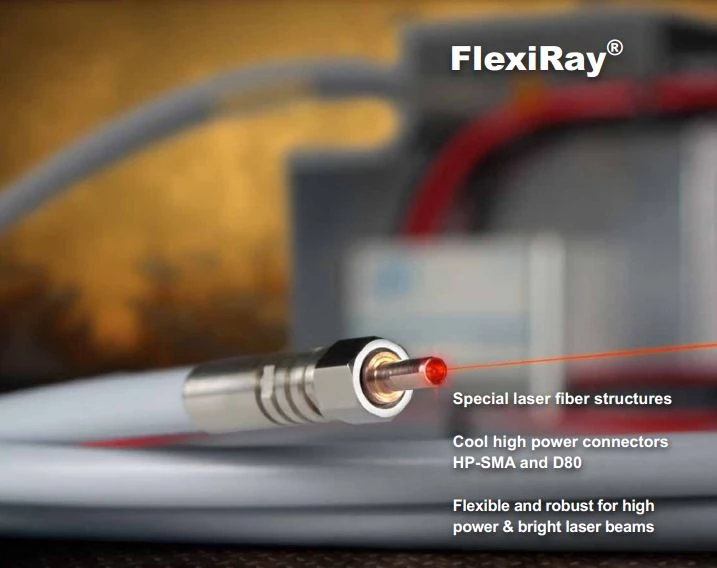

FlexiRay ® cables from art photonics is the latest generation of High Power Fiber Cables produced for various lasers in broad spectral range. FlexiRay ® HP-cables deliver much higher power compared to the similar cables in result of specialty laser fiber combination with the proprietary connector design. This synergy enables long HP-cable life while high power density is delivered and connectors stay cool.

Specifications

Fiber Core Diameter:	400 um
Cable Length:	50 m
Fiber Core Shape:	Round
Fiber Cladding:	Fluorine doped fused silica
Ptotective Jacket Material:	Nylon, Tefzel, Acrylate, Polyimide, Metal
Standard NA:	0.22 +/- 0.02 (Full Acceptance Angle 25%)
High Power Connectors:	HP-SMA, D80

Download Data Sheet

Applications

* Laser Welding of Metals & Plastics

* Laser Cutting & Drilling

* Rapid Surface Processing

* Medical Laser Power Delivery

* Laser Target & Rangefinder

* Laser Spectroscopy

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

Germany

Sold by:

Art photonics GmbH

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is FlexiRay High Power Fiber Cable HP-400?

FlexiRay High Power Fiber Cable HP-400 is the latest generation of High Power Fiber Cables produced for various lasers in broad spectral range.

What is the difference between FlexiRay HP-cables and similar cables?

FlexiRay HP-cables deliver much higher power compared to the similar cables in result of specialty laser fiber combination with the proprietary connector design.

What are the applications of FlexiRay High Power Fiber Cable HP-400?

The applications of FlexiRay High Power Fiber Cable HP-400 include Laser Welding of Metals & Plastics, Laser Cutting & Drilling, Rapid Surface Processing, Medical Laser Power Delivery, Laser Target & Rangefinder, and Laser Spectroscopy.

What are the specifications of FlexiRay High Power Fiber Cable HP-400?

The specifications of FlexiRay High Power Fiber Cable HP-400 include fiber core diameter of 100, 200, 400, or 600 µm, high power connectors of HP-SMA or D80, and cable length from 5 cm to 50 m.

What is the maximum power level of FlexiRay High Power Fiber Cable HP-400?

The maximum power level of FlexiRay High Power Fiber Cable HP-400 depends on laser beam profile, coupler parameters, and on heat dissipation conditions for input & output connectors.
