FlexiRay High Power Fiber Cable HP-200

Name: FlexiRay High Power Fiber Cable HP-200
Brand: Art photonics GmbH
Availability: InStock

Description

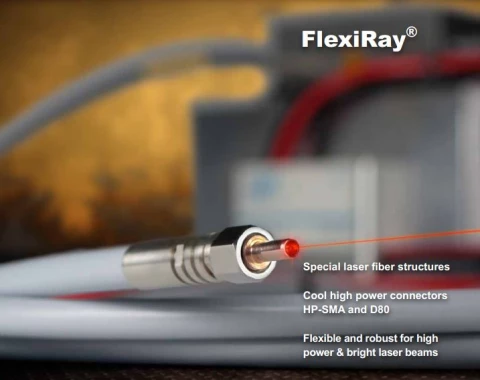

FlexiRay® cables from art photonics is the latest generation of High Power Fiber Cables produced for various lasers in broad spectral range. FlexiRay ® HP-cables deliver much higher power compared to the similar cables in result of specialty laser fiber combination with the proprietary connector design. This synergy enables long HP-cable life while high power density is delivered and connectors stay cool.

Specifications

Fiber Core Diameter:	200 um
Cable Length:	50 m
Fiber Core Shape:	Round
Fiber Cladding:	Fluorine doped fused silica
Ptotective Jacket Material:	Nylon, Tefzel, Acrylate, Polyimide, Metal
Standard NA:	0.22 +/- 0.02 (Full Acceptance Angle 25%)
High Power Connectors:	HP-SMA, D80

Download Data Sheet

Applications

* Laser Welding of Metals & Plastics

* Laser Cutting & Drilling

* Rapid Surface Processing

* Medical Laser Power Delivery

* Laser Target & Rangefinder

* Laser Spectroscopy

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

Germany

Sold by:

Art photonics GmbH

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is FlexiRay High Power Fiber Cable HP-200?

FlexiRay High Power Fiber Cable HP-200 is a latest generation high power fiber cable produced for various lasers in broad spectral range.

What makes FlexiRay HP-cables different from other similar cables?

FlexiRay HP-cables deliver much higher power compared to the similar cables in result of specialty laser fiber combination with the proprietary connector design.

What are the applications of FlexiRay HP-cables?

The applications of FlexiRay HP-cables include laser welding of metals and plastics, laser cutting and drilling, rapid surface processing, medical laser power delivery, laser target and rangefinder, and laser spectroscopy.

What are the specifications of FlexiRay HP-cables?

The specifications of FlexiRay HP-cables include fiber core diameter, fiber core material, fiber cladding, protective jacket material, standard NA, cable length, high power connectors, and attenuation.

What is the maximum power level of FlexiRay HP-cables?

The maximum power level of FlexiRay HP-cables depends on laser beam profile, coupler parameters, and on heat dissipation conditions for input and output connectors.
