SMA500MS Laser Cables - FCL25-10500-2000
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

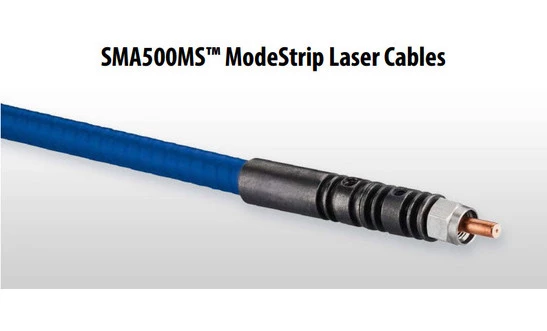

Introducing the FiberTech® SMA500 MS ModeStrip Laser Cables, a cutting-edge solution designed to meet the rigorous demands of industrial laser applications. These laser cables are engineered with precision, featuring F-SMA freestanding fiber connectors housed within a robust PVC-coated, steel-armored protection tube. This design ensures durability and reliability, providing a secure conduit for laser beam delivery.
The heart of the FiberTech® SMA500 MS cables is the copper-based high-accuracy fiber ferrule. This component is pivotal in delivering effective heat removal, ensuring that the fiber maintains high centricity. The integrated convection-cooled cladding-mode stripper, known as ModeStrip, is a standout feature, enhancing the cable's performance by efficiently removing cladding modes. This makes the cable suitable for laser beam delivery of up to 200 watts, making it a powerful tool in various industrial settings.
Crafted with VIS-IR all-silica step-index fiber, these cables offer a numerical aperture (NA) of 0.22, with options available for NA 0.12 and graded-index fibers upon request. The SMA905 (F-SMA) connectors feature a free-standing fiber tip and hex nut, with keyed versions available on request. The use of all copper alloy parts significantly improves heat removal, while ensuring fiber centricity of less than 5 µm from the fiber core to the ferrule.
The design is further enhanced by a squarelock, blue PVC-coated protection tube, and metal connector cuffs that incorporate heatsinks for optimal performance. The FiberTech® SMA500 MS cables also offer electrical isolation from end to end, ensuring safety and reliability in all applications. With a capability of handling average laser power up to 200 watts, these cables are a formidable choice for high-power laser applications.
SMA500MS Laser Cables - FCL25-10500-2000
Specifications |
|
|---|---|
| Fiber Core Diameter: | 100 um |
| Cable Length: | 5 m |
| Applicable Laser Beam Delivery Power: | up to 200 W |
| Fiber Type: | VIS-IR all-silica (silica/silica) step-index fiber |
| Numerical Aperture (NA): | 0.22 |
| Fiber Centricity: | < 5 µm |
| Average Laser Power: | up to 200 W |
Features
- High-Quality Laser Cable: Equipped with F-SMA freestanding fiber connectors and a PVC-coated, steel-armored protection tube for enhanced durability.
- Efficient Heat Management: Features a copper-based high-accuracy fiber ferrule for effective heat removal and high fiber centricity.
- ModeStrip Technology: Integrated convection-cooled cladding-mode stripper (ModeStrip) for efficient cladding mode removal.
- Versatile Fiber Options: VIS-IR all-silica (silica/silica) step-index fiber with NA = 0.22, with options for NA = 0.12 and graded-index fiber available upon request.
- Advanced Connector Design: SMA905 (F-SMA) connector with a free-standing fiber tip and hex nut; keyed SMA905 connectors available on request.
- Precision Engineering: Fiber centricity of less than 5 µm from fiber core to ferrule ensures optimal performance.
- Robust Construction: Squarelock, blue PVC-coated protection tube with metal connector cuffs and heatsink for added protection and stability.
- Electrical Isolation: Provides complete electrical isolation from end to end for safe operation.
- High Power Capacity: Supports average laser power delivery of up to 200 W, making it suitable for industrial applications.
Applications
- Laser Beam Delivery Systems: For precise and stable transmission in industrial processing.
- Laser Welding and Cutting: Ideal for applications requiring high power and reliable beam quality.
- Material Processing: Suitable for marking, engraving, and micromachining tasks.
- Scientific and Laboratory Use: For experimental setups demanding robust fiber optic delivery.
- OEM Laser Integration: Compatible with fiber-coupled industrial lasers for seamless assembly.
Frequently Asked Questions
The SMA500MS Laser Cables are made of VIS-IR all-silica (silica/silica) step-index fiber with NA = 0.22 (NA = 0.12 on request), copper alloy parts for improved heat removal, and a squarelock, blue PVC-coated protection tube. They also feature a convection-cooled ModeStripper for cladding mode removal and electrical isolation from end to end.
The SMA500MS Laser Cables have an SMA905 (F-SMA) connector with free-standing fiber tip and hex nut. Keyed SMA905 (F-SMA) connectors are available on request.
The fiber centricity of the SMA500MS Laser Cables is < 5 µm fiber core to ferrule.
The SMA500MS Laser Cables are applicable for laser beam delivery of up to 200 W.
The fiber core diameter of the SMA500MS Laser Cables is 100 µm.
