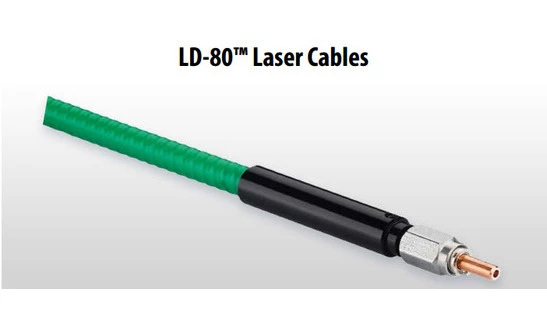

Thumbnail of LD80 Laser Cable - FCL30-10300-2000 photo 1

Description

Introducing the FiberTech® LD-80 Laser Cables, a pinnacle of innovation in the realm of industrial lasers. These cables are expertly designed to meet the demands of high-power laser applications, offering unparalleled performance and reliability. Each cable is crafted with precision, featuring LD-80 freestanding fiber connectors that ensure optimal laser beam delivery. The robust construction is complemented by a PVC-coated steel-armored protection tube, providing exceptional durability and protection in even the most challenging environments.

The core of the FiberTech® LD-80 Laser Cables is a copper-based high-accuracy fiber ferrule, designed for effective heat removal and high fiber centricity. This ensures that the laser beam is delivered with precision, maintaining alignment and minimizing energy loss. Suitable for laser beam delivery of up to 800 W, these cables are engineered to handle high power with ease, making them ideal for a wide range of industrial applications.

Each cable is constructed using VIS-IR all-silica (silica/silica) step-index fiber, with a numerical aperture (NA) of 0.22, ensuring excellent light transmission and minimal signal degradation. For those with specific requirements, a numerical aperture of 0.12 or graded-index fiber options are available upon request. The connectors are designed with a Ø 4 mm x 10 mm size, featuring a key for anti-twist functionality, a free-standing fiber tip, and a hex nut for secure attachment.

The FiberTech® LD-80 Laser Cables are engineered with all copper alloy parts, enhancing heat removal capabilities and ensuring long-lasting performance. With a fiber centricity of less than 5 µm from the fiber core to the ferrule, these cables offer precision and reliability in laser beam delivery. The squarelock, green PVC-coated protection tube not only provides robust protection but also adds a layer of electrical isolation from end to end, ensuring safety and efficiency in operation.

LD80 Laser Cable - FCL30-10300-2000

Visit the Weinert Fiber Optics Store

Specifications

Fiber Core Diameter: 100 um
Cable Length: 3 m
Maximum Laser Power: 800 W
Numerical Aperture (NA): 0.22
Connector Dimensions: Ø 4 mm x 10 mm
Fiber Centricity: < 5 µm
Protection Tube: Squarelock, green PVC-coated

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High‑Power Laser Delivery up to 800 W – Engineered laser cable for reliable beam delivery of industrial lasers with average power levels up to 800 W, ideal for cutting, welding, and materials processing applications.
  • VIS–IR All‑Silica Step‑Index Fiber – High‑purity silica/silica step‑index fiber optimized for VIS to IR operation, providing low attenuation and stable performance in demanding industrial laser systems.
  • Standard NA = 0.22 (Other NAs on Request) – Numerical aperture of 0.22 for efficient coupling to most industrial laser sources; NA = 0.12 and graded‑index fiber variants available on request for tailored beam characteristics.
  • Multiple Core Diameters Available (100–1000 µm) – Wide range of fiber core sizes (100, 200, 400, 600, 800, and 1000 µm) to match different beam qualities, power densities, and process spot size requirements.
  • Flexible Cable Length Options (2 m, 3 m, 5 m) – Standard lengths of 2 m, 3 m, and 5 m support a variety of machine layouts and integration scenarios in OEM and retrofit environments.
  • LD‑80 Freestanding Fiber Connectors – Robust LD‑80 style connectors with free‑standing fiber tips minimize contamination and allow precise, stable coupling to laser sources and processing heads.
  • Ø 4 mm x 10 mm Connectors with Anti‑Twist Key – Compact connector design with integrated keying prevents rotation, ensures repeatable alignment, and reduces mechanical stress on the fiber during operation.
  • High‑Precision Copper Fiber Ferrule – Copper‑based high‑accuracy ferrule provides excellent thermal conductivity for efficient heat removal from the fiber end face and outstanding mechanical stability.
  • Excellent Fiber Centricity (< 5 µm) – Core‑to‑ferrule centricity better than 5 µm ensures optimized coupling efficiency, reduced focal spot distortion, and improved process consistency.
  • Superior Thermal Management – All copper alloy connector parts around the ferrule enhance heat dissipation at the laser input and output, improving lifetime and stability at high average powers.
  • Steel‑Armored, PVC‑Coated Protection Tube – Squarelock, steel‑armored protective tube with green PVC coating provides high mechanical robustness, crush resistance, and abrasion protection in harsh industrial environments.
  • Metal Connector Cuffs for Strain Relief – Rugged metal cuffs at both connector ends provide reliable strain relief and secure mechanical termination between fiber, armor, and connectors.
  • Electrical Isolation End‑to‑End – Electrically isolated design across the entire cable length enhances operator safety and facilitates integration into systems with strict grounding and insulation requirements.
  • Industrial‑Grade Durability – Built for continuous operation in production environments, resistant to vibration, bending, and thermal cycling commonly encountered in industrial laser workstations.
  • Optimized for Industrial Lasers – Suitable for high‑power diode, fiber, and solid‑state lasers used in metal processing, micro‑machining, surface treatment, and other precision manufacturing processes.
  • Low‑Loss Beam Transmission – Carefully controlled fiber geometry and centricity, combined with high‑quality polishing of the freestanding tip, result in low insertion loss and stable beam quality along the cable length.
  • Color‑Coded Green Outer Jacket – Green PVC coating provides clear visual identification of the laser cable in complex machine installations and improves cable management and serviceability.
  • Custom Variants on Request – Non‑standard numerical apertures, graded‑index fibers, and special configurations are available on request to match specific OEM requirements and custom laser systems.

Applications

  • High-Power Industrial Laser Beam Delivery
    Robust fiber delivery for continuous-wave and pulsed industrial lasers up to 800 W in metalworking, plastics, and ceramics processing.
  • Laser Cutting of Metals and Alloys
    Precise energy transmission for cutting stainless steel, carbon steel, aluminum, copper, and other metals in sheet and tube cutting systems.
  • Laser Welding and Brazing
    Fiber delivery for spot and seam welding of automotive components, battery packs, housings, sensors, and structural assemblies.
  • Laser Soldering and Micro-Joining
    Stable beam guidance for fine soldering of electronic components, connectors, PCB assemblies, and miniature metal parts.
  • Laser Marking and Engraving
    Flexible beam routing for high-contrast marking, serialization, coding, and deep engraving on metals, plastics, and coated surfaces.
  • Laser Drilling and Micro-Machining
    Delivery of tightly controlled laser beams for precision drilling of nozzles, filters, injector parts, medical components, and micro-features.
  • Surface Treatment and Hardening
    Beam delivery for laser surface hardening, cladding, alloying, and remelting to improve wear, corrosion, and fatigue resistance.
  • Additive Manufacturing and Laser Cladding
    Fiber link for powder- and wire-based laser metal deposition, 3D printing, and repair of high-value metal components.
  • Plastics Welding and Cutting
    infrared beam delivery for through-transmission welding, contour welding, and precision cutting of technical plastics and films.
  • Automotive Manufacturing
    Integration into robot-guided workcells for body-in-white welding, trimming, panel cutting, battery tab welding, and powertrain component processing.
  • Electronics and Semiconductor Processing
    Controlled laser delivery for trimming, marking, selective soldering, lead frame processing, and packaging applications.
  • Medical Device Manufacturing
    Precision beam guidance for machining and welding of implants, stents, surgical instruments, and micro-tubes (non-patient-contact use).
  • Tool and Mold Making
    Laser hardening, engraving, texturing, and repair of molds, dies, and precision tooling using high-power industrial lasers.
  • Texturing and Surface Structuring
    Delivery of stable beams for creating functional and decorative textures, micro-patterns, and anti-reflective or hydrophobic surfaces.
  • Robotic and Multi-Axis Laser Workstations
    Flexible armored cable routing for multi-axis and robot-mounted laser heads in dynamic industrial environments.
  • Scientific and R&D Laser Facilities
    Reliable high-power delivery to experimental setups, materials research stations, and prototype laser processing systems.
  • Prototyping and Custom Laser Systems
    Use as a modular beam delivery component in OEM laser machines, custom integrator builds, and flexible prototyping cells.
  • Remote and In-Cell Laser Processing
    Transmission of laser power from a stationary laser source to enclosed, hazardous, or hard-to-reach processing stations.
  • Industrial Environments with Mechanical Stress
    Use in harsh settings where PVC-coated steel-armored protection and squarelock tubing are needed against abrasion, bending, and impacts.
  • Applications Requiring High Beam Stability and Alignment
    Processes that benefit from copper-based high-accuracy ferrules, low fiber centricity (< 5 µm), and freestanding fiber connectors for consistent coupling efficiency.

Frequently Asked Questions

What are LEONI FiberTech LD-80 laser cables and what are they used for?
FiberTech LD-80 laser cables are industrial laser delivery cables designed by LEONI Fiber Optics for safe and efficient transmission of high-power laser radiation. They use VIS-IR all‑silica step‑index fibers with numerical aperture (NA) 0.22 and are suitable for average laser powers up to 800 W. Typical applications include industrial material processing, welding, cutting, marking, and general high‑power laser beam delivery where robust, flexible, and thermally stable fiber cables are required.
What core sizes and standard cable lengths are available for the LD-80 laser cables?
The FiberTech LD-80 series is offered with fiber core diameters of 100 µm, 200 µm, 400 µm, 600 µm, 800 µm, and 1000 µm. Standard catalog cable lengths are 2 m, 3 m, and 5 m, each with corresponding part numbers (e.g., FCL30-10200-2000, FCL30-10300-2000, FCL30-10500-2000 for 100 µm core at 2 m, 3 m, and 5 m). Other lengths are often available on request from LEONI or distributors, provided the optical and thermal limits remain within specification.
What is the maximum laser power and wavelength range supported by FiberTech LD-80 cables?
FiberTech LD-80 laser cables are specified for average laser powers up to 800 W in continuous operation, assuming proper cooling and system integration. They use VIS-IR all‑silica (silica core/silica cladding) step‑index fibers, meaning they cover the visible to infrared wavelength range commonly used by industrial solid‑state, fiber, and diode lasers (e.g., around 808 nm, 940 nm, 980 nm, 1030–1080 nm, and similar). For operation very close to power or wavelength limits, LEONI or your laser manufacturer should confirm compatibility with your specific laser model.
What connector type and protection tube do LD-80 laser cables use?
These cables are equipped with LD-80 freestanding fiber connectors featuring 4 mm × 10 mm bodies with a keyed anti‑twist design and a hex nut for secure mounting. The fiber tip is free‑standing for efficient beam delivery. The protective jacketing is a squarelock steel‑armored tube with a green PVC coating, providing mechanical robustness, abrasion resistance, and flexibility. Metal connector cuffs provide a secure mechanical interface to the armored tube while maintaining full electrical isolation from end to end.
How do LD-80 laser cables manage heat and maintain beam quality?
LD-80 laser cables use copper‑based high‑accuracy fiber ferrules and all copper alloy connector parts to enable efficient heat removal from the fiber end faces, which is critical at powers up to 800 W. Fiber centricity is specified to be < 5 µm from fiber core to ferrule, ensuring precise alignment, low coupling losses, and stable beam quality. This makes them comparable to other high‑power industrial laser delivery cables used with fiber and solid‑state lasers, where thermal management and alignment accuracy directly affect lifetime and performance.
What numerical aperture (NA) options are available and can I request different fiber types?
The standard FiberTech LD-80 cables use a VIS‑IR all‑silica step‑index fiber with NA = 0.22, which is typical for many industrial laser delivery applications. An NA of 0.12 is available on request for systems that require a lower divergence, and graded‑index (GI) fiber versions are also available upon request. When ordering, you can specify the desired NA and fiber type so the cable will match your laser’s output optics and your beam quality requirements.
In which industrial environments are FiberTech LD-80 cables typically used?
Due to their steel‑armored, PVC‑coated protection tube and high‑power handling capability, FiberTech LD-80 cables are suited to harsh industrial environments such as automated production lines, robot‑guided laser workstations, cutting and welding cells, and general machine tool integration. The squarelock armor provides crush and bend protection, while electrical isolation from end to end supports safe integration into systems where grounding and electrical separation are important. Always respect the minimum bend radius and mounting recommendations provided by LEONI to ensure long service life.
