Description

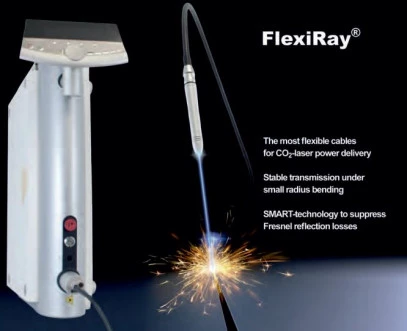

This is a PIR-Fiber Cable for flexible delivery of CO2 Laser Power. FlexiRay product line from art photonics includes unique High Power PIR-Fiber Cable for flexible delivery of CO2 laser radiation. Compared to hollow waveguides PIR-fibers provide more stable power transmittance under cable bending and can be bent for a smaller radius. Spectral SMART treatment of PIR-fiber ends suppresses Fresnel reflection to increase output power for 10-15%

What are PIR fibers? Silver Halide fibers are polycrystalline infrared (PIR) optical fibers that have high transmission in mid-IR wavelength range. Similar to standard optical fibers, PIR fibers propagate light by total internal reflection. They are comprised of a core and a cladding made from halide materials such that the refractive index of the core is higher than that of the cladding.

PIR-fiber delivery set for CO₂ laser

Visit the Art photonics GmbH Store

Specifications

Fiber Core Diameter: 400 um
Cable Length: 1.5 m
Maximal Laser Beam Diameter: 8 mm
Total Transmission (1.5 M Length): >75 %
Maximum Input Power (CW): 30 W
Focusing Handpiece Diameter: max 22 mm
Focusing Handpiece Length: max 100 mm
Focal Spot Size: 0.65-0.9 mm
Operating Distance: 20 mm
Cladding Diameter: 500 um
Beam Divergence: 0.13 (1m cable); o.16 (1.5m cable)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

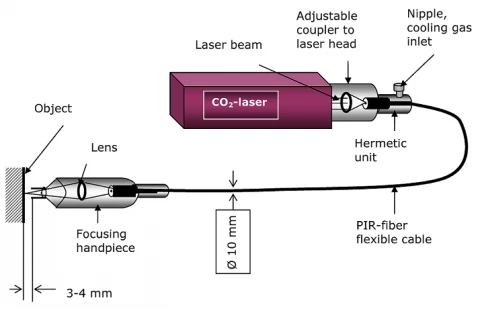

This PIR-Fiber Cables come with a range of options including:

Delivery Set
- Adjustable Coupler to the Laser Head
- Focusing Handpiece
- Cooling gas inlet unit

Focusing Handpiece
- Focusing handpiece diameter: 12mm max
- Focusing handpiece length: 100mm max
- Focal spot size: 0.65 - 1mm
- Operating distance: 20mm

Cooling gas inlet unit
- Inlet diameter: 6mm
- Cooling gas excess pressure: 0.1-0.15 atm.

Applications

PIR fibers have made CO2 and CO lasers a premium choice for a variety of industrial, medical and military applications. The flexible delivery of laser power output, which was not possible prior to the invention of PIR fiber cables, opens a wide range of application possibilities.

Frequently Asked Questions

What is the FlexiRay product line from art photonics?
The FlexiRay product line from art photonics includes unique High Power PIR-Fiber Cable for flexible delivery of CO2 laser radiation.
How do PIR fibers propagate light?
Similar to standard optical fibers, PIR fibers propagate light by total internal reflection.
What are the features of the PIR-Fiber Cables?
The PIR-Fiber Cables come with a range of options including Delivery Set, Adjustable Coupler to the Laser Head, Focusing Handpiece, and Cooling gas inlet unit.
What are the applications of PIR fibers?
PIR fibers have made CO2 and CO lasers a premium choice for a variety of industrial, medical and military applications.
What is the spectral SMART treatment of PIR-fiber ends?
The spectral SMART treatment of PIR-fiber ends suppresses Fresnel reflection to increase output power for 10-15%.
