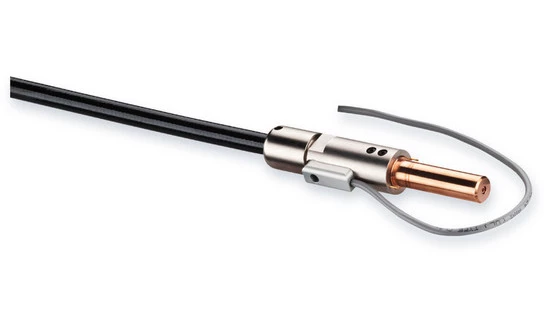

LD80R Robotik Laser Cable - 200um Core
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
The LD-80R™ industrial fiberoptic laser cable is a cutting-edge solution specifically engineered for demanding robotic welding and cutting applications, predominantly within the automotive manufacturing sector. This advanced cable system is built around the robust LD-80™ connector, which is encased in durable connector shells and ferrule nozzles. These components are meticulously designed to seamlessly integrate with LLK-HP industrial laser systems, ensuring optimal performance and reliability in high-stakes environments.
A key feature of the LD-80R™ laser cable is its integrated electrical safety circuit. This innovative circuit is crucial for maintaining operational safety, as it connects to the laser system to provide real-time cable break detection and thermal sensing capabilities. This means that in the event of a cable break or if the connector ends overheat, the system can respond appropriately to prevent damage and ensure continued operation.
Designed to handle high-power applications, the LD-80R™ laser cables are available with industrial standard 10mm x 54mm (LLK-LP) and 15mm x 54mm (LLK-B) high power fiber connectors. These cables are encased in a highly flexible polymer-aramid protection tube, which provides both durability and flexibility. The inclusion of a copper high-accuracy fiber ferrule enhances heat dissipation and ensures high fiber centricity, making it an ideal choice for delivering laser beams of up to 5000W.
LD80R Robotik Laser Cable - 200um Core
Specifications |
|
|---|---|
| Fiber Core Diameter: | 200 um |
| Connector Size: | 10mm x 54mm (LLK-LP) |
| Connector Size: | 15mm x 54mm (LLK-B) |
| Laser Beam Delivery: | up to 5000W |
Features
- Designed for Robotic Welding and Cutting: The LD-80R™ industrial fiberoptic laser cable is specifically engineered for use in robotic welding and cutting applications, particularly within the automotive manufacturing sector.
- Robust Connector Design: Features the LD-80™ connector with durable connector shells and ferrule nozzles for seamless integration with LLK-HP industrial laser systems.
- Safety and Thermal Sensing: Equipped with an electrical safety circuit that connects to the laser system, providing cable break detection and thermal sensing to prevent overheating.
- High Power Fiber Connectors: Available with industrial standard 10mm x 54mm (LLK-LP) and 15mm x 54mm (LLK-B) high power fiber connectors, ensuring compatibility and performance.
- Flexible Protection: Incorporates a highly flexible polymer-aramid protection tube for enhanced durability and flexibility.
- Efficient Heat Removal: The copper high-accuracy fiber ferrule ensures effective heat dissipation and maintains high fiber centricity.
- High Power Capacity: Suitable for laser beam delivery of up to 5000W, making it ideal for high-demand applications.
- Repolish and Repair Ready: Connectors and cables are designed to allow for fiber repolish or end repair, extending the lifespan and usability of the product.
Applications
- Robotic Laser Welding: Optimized for high-power welding operations in automotive manufacturing.
- Laser Cutting Systems: Delivers stable beam transmission for precise robotic laser cutting.
- Automotive Production Lines: Supports integration in robotic stations requiring high durability and flexibility.
- Industrial Laser Processing: Suitable for applications demanding high thermal management and safety features.
Frequently Asked Questions
The LD80R Robotik Laser Cable uses VIS-IR all-silica (silica/silica) step-index fiber with NA = 0.22 NA = 0.12 on request. Graded-index fiber on request.
Yes, the LD80R Robotik Laser Cable has a fiber break detection and connector temperature monitoring circuit that complies with laser safety requirements.
The LD80R Robotik Laser Cable is designed for robotic welding and cutting applications primarily in the automotive manufacturing arena.
Yes, the connectors and cables of the LD80R Robotik Laser Cable are designed for fiber repolish or end repair.
The LD80R Robotik Laser Cable is applicable for laser beam delivery of up to 5000 W.
