Description
Introducing the SMA500™ Laser Cables, a cutting-edge innovation in fiber optics brought to you by LEONI Fiber Optics, Inc. This advanced connector, first introduced by LOSCH in 2004, represents a significant evolution from the CuSMA™ connector, with enhancements that align closely with the LD-80™ connector. The SMA500™ is meticulously engineered to optimize thermal transfer and heat dissipation, a crucial feature for high-power diode applications. This innovation empowers laser manufacturers to push the boundaries of power capabilities through SMA type connectors, thanks to its ability to handle higher diode powers, fiber core overfilling, and output end back-reflections.
The SMA500™ Laser Cables are crafted with a fluorine doped silica core fiber featuring a 0.22 NA as standard, ensuring superior performance and reliability. The durable and flexible steel armored cable, commonly known as squarelock, is available in outer diameters of 6 or 7 mm, with options for both smaller and larger diameters to suit diverse needs.
To enhance protection and durability, flexible vinyl coatings are available, adding approximately 1mm to the diameter. These coatings come in a variety of colors including gray-blue, black, and custom options, allowing for both aesthetic and functional customization. For applications requiring low vacuum conditions or anti-reflective coating, bare cable is recommended to maintain optimal performance.

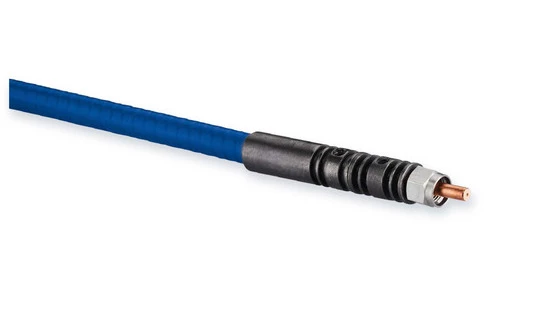

SMA500 Laser Cable - FCL24-10200-2000
Specifications |
|
|---|---|
| Fiber Core Diameter: | 100 um |
| Cable Length: | 2 m |
| Numerical Aperture (NA): | 0.22 |
| Fiber Centration: | <5 microns C-C |
| Cable Outer Diameter: | 6 or 7 mm |
| Cable Length: | 1 to 50 meters |
| Keyed SMA Angle Polish: | 8 ° |
Features
- Improved Design: The SMA500™ connector, introduced by LOSCH in 2004, enhances the CuSMA™ connector by improving thermal transfer and heat dissipation, allowing increased power through SMA type connectors.
- High-Performance Fiber: Standard fluorine doped silica core fiber with a numerical aperture (NA) of 0.22.
- Durable Construction: Features flexible steel armored cable, available in outer diameters of 6 or 7 mm, with optional flexible vinyl coatings in gray-blue, black, and custom colors.
- Precision Fiber Centration: Achieves fiber centration of less than 5 microns C-C, ensuring high precision and performance.
- Custom Configurations: Available in all core sizes and configurations, with lengths from 1 to 50 meters.
- Versatile Variations: Offers variations including Keyed SMA angle polishes to 8° and other parts for specific requirements.
- Compatibility: Compatible with LMA & polarized fiber, providing flexibility for various applications.
Applications
- High-Power Diode Laser Delivery: Designed for efficient transmission in industrial laser systems.
- Fiber Coupled Laser Modules: Suitable for OEM integration with laser diode assemblies.
- Medical Laser Systems: Reliable for surgical and therapeutic laser delivery requiring stable thermal management.
- Laser Research and Development: Enables advanced testing setups with custom lengths and connector options.
- Optical Communication and Sensing: Supports applications requiring precise beam delivery and robust construction.
Frequently Asked Questions
The steel-armored protection tube of the SMA500 Laser Cable is available in outer diameters of 6 or 7 mm.
The fiber centricity of the SMA500 Laser Cable is less than 5 μm fiber core to ferrule.
The SMA500 Laser Cable can be used for laser beam delivery of up to 500 W.
Yes, the SMA500 Laser Cable can be used with LMA & polarized fiber.
The SMA500 Laser Cable has an F-SMA freestanding fiber connector.
